Aircraft Fuel Hose

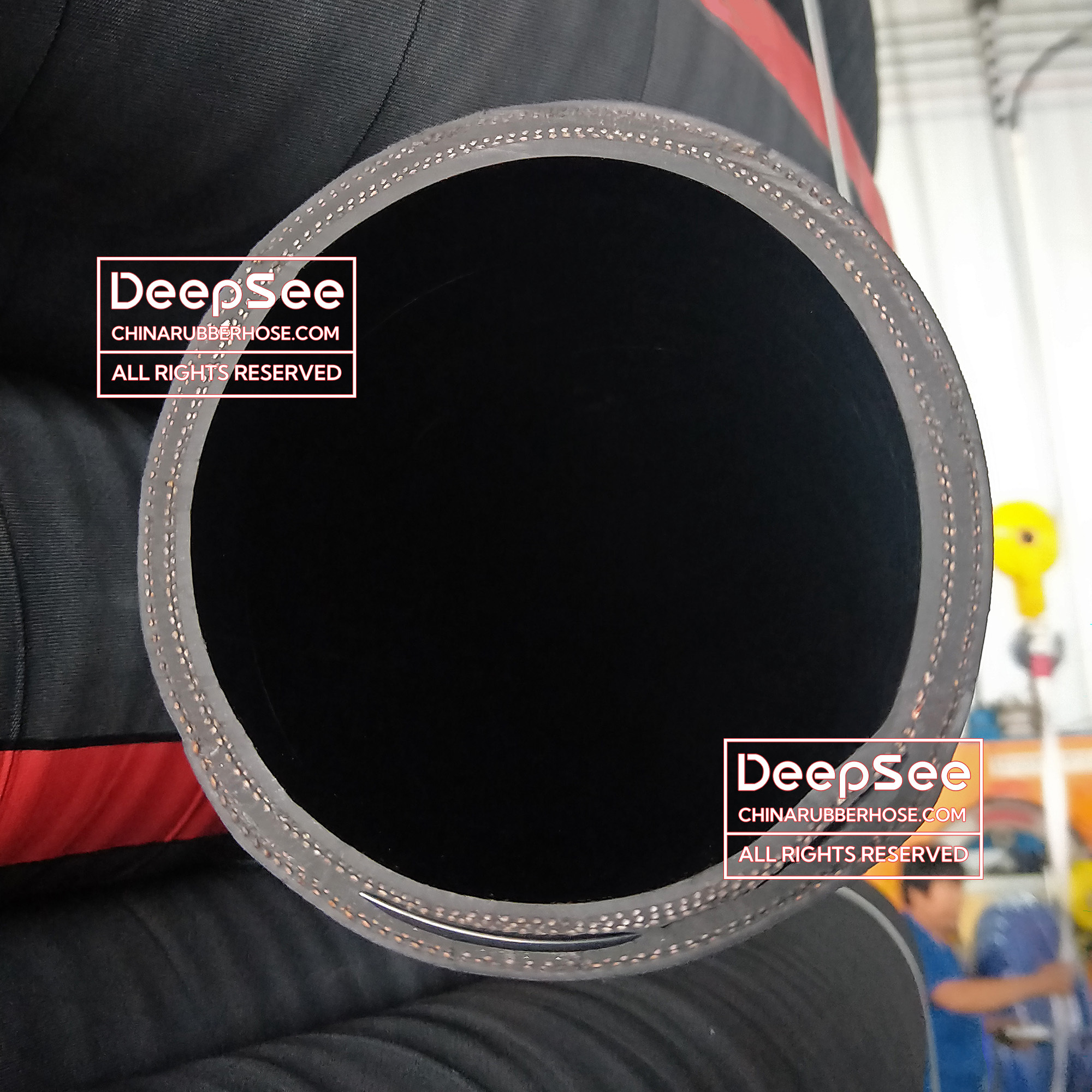

This aircraft fuel hose is engineered with high-performance materials, combining the strength of steel and flexibility of rubber. Its cover is made of black synthetic nitrile rubber and neoprene, which offers sufficient resistance to abrasion, weathering, and ozone. Spiral-plied textile fabrics and embedded steel wire helix makes up the middle reinforcement. This layer has great pressure and kink resistance. Made with seamless NBR, the innermost layer is non-porous and smooth, ensuring the efficiency of transporting aviation fuel.

Manufactured with such reliable materials, this aviation fueling hose can withstand a wide range of pressures and temperatures, making it ideal for airplane refueling operations under various environmental conditions. By using DeepSee® Aircraft Fuel Hose, oil can be transferred with no difficulty while keeping plane and personnel safe. You don’t have to worry about leakage or contamination. If you are finding aviation hoses with long service life and good abrasion resistance, look no further than ours. One-stop factory, handles everything for you.

Note:

①The aircraft hose is made of one continuous length, but we also provide free cut-to-length service to meet your loading and unloading needs.

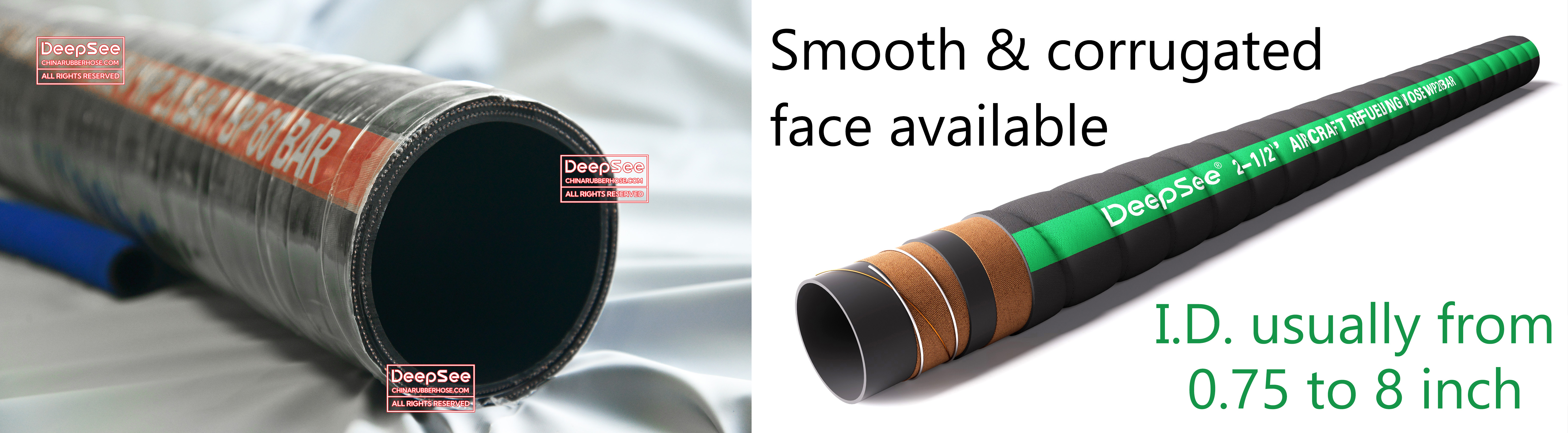

②Color and content of the branding label on the outer cover can be customized according to your requests. Default linear label stripe will be red with our brand name, inner diameter (inch), product name, and working pressure (bar). For example,

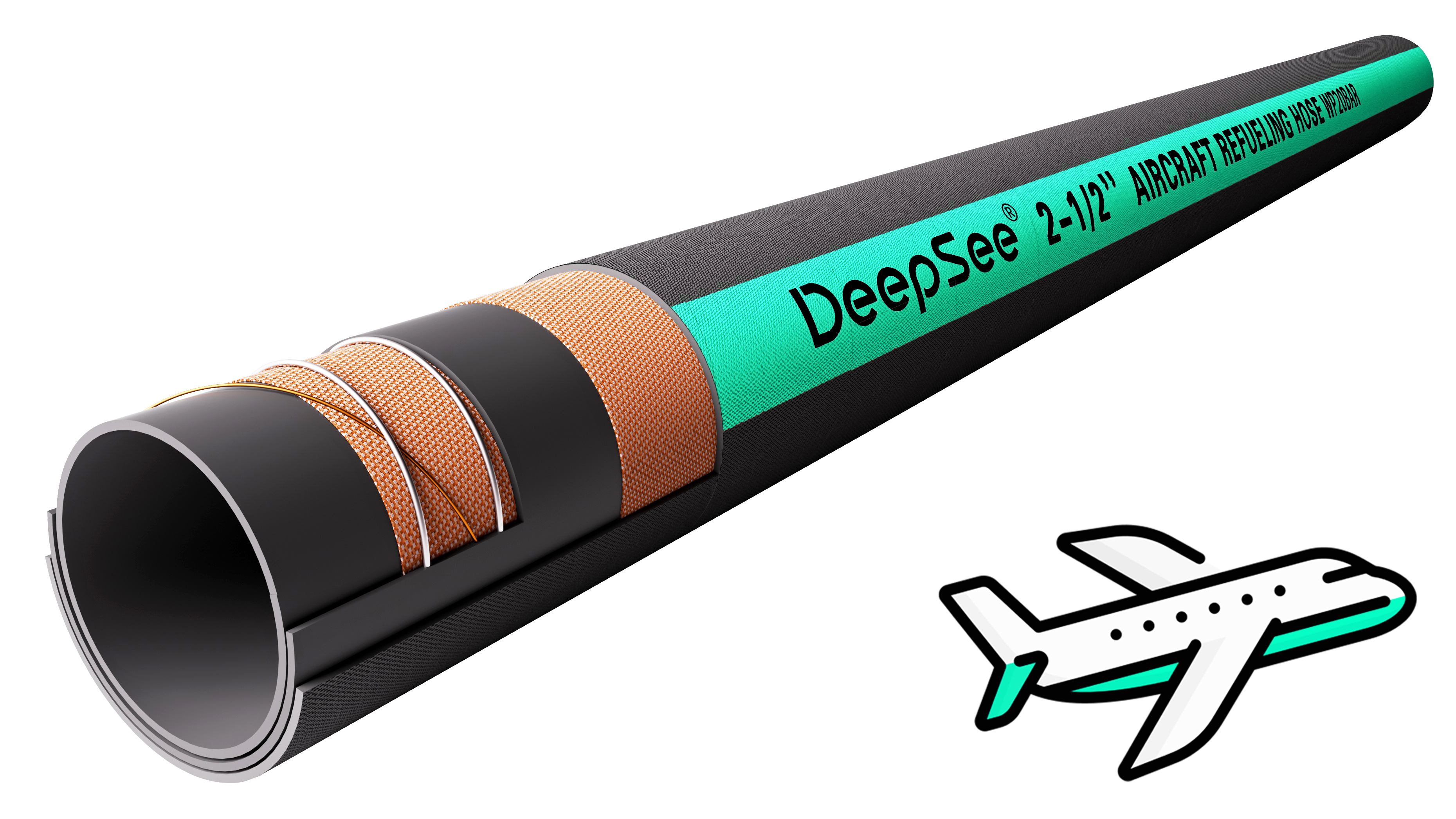

DeepSee® 2-1/2” AIRCRAFT REFUELING HOSE WP20BAR

mm	inch	mm		bar	psi	bar	psi	kg/m		m		mm
19	¾	33.8		20	300	80	1200	0.976		60		3
25	1	39.8						1.195		60		3
32	1¼	48.8						1.62		60		3
38	1½	56.2						2.15		60		3
51	2	70.6						3.03		60		3
64	2½	84.8						3.78		60		3
76	3	97.4						4.67		60		3
102	4	127.2						7.39		60		3

mm	inch	mm		bar	psi	bar	psi	kg/m		m		mm
19	¾	30.8		20	300	80	1200	0.648		60		3
25	1	36.8						0.803		60		3
32	1¼	45.8						1.18		60		3
38	1½	52.6						1.49		60		3
51	2	66.6						2.06		60		3
64	2½	80.4						2.57		60		3
76	3	94.4						3.57		60		3
102	4	121.6						4.78		60		3
152	6	171.6		10	150	40	600	6.8		60		3
203	8	225.8						10.53		60		3

Please contact us to design and manufacture aircraft refueling hose
if you need other specifications or have special requirements.
We provide all kinds of aviation fuel hose customized services.
