Corrugated Water Hose

DeepSee® Corrugated Water Hose is designed for water suction and discharge. Built with durable natural rubber and styrene butadiene rubber, this water hose is robust and flexible. It is optimal for water transportation in industrial applications, construction, agriculture and so on.

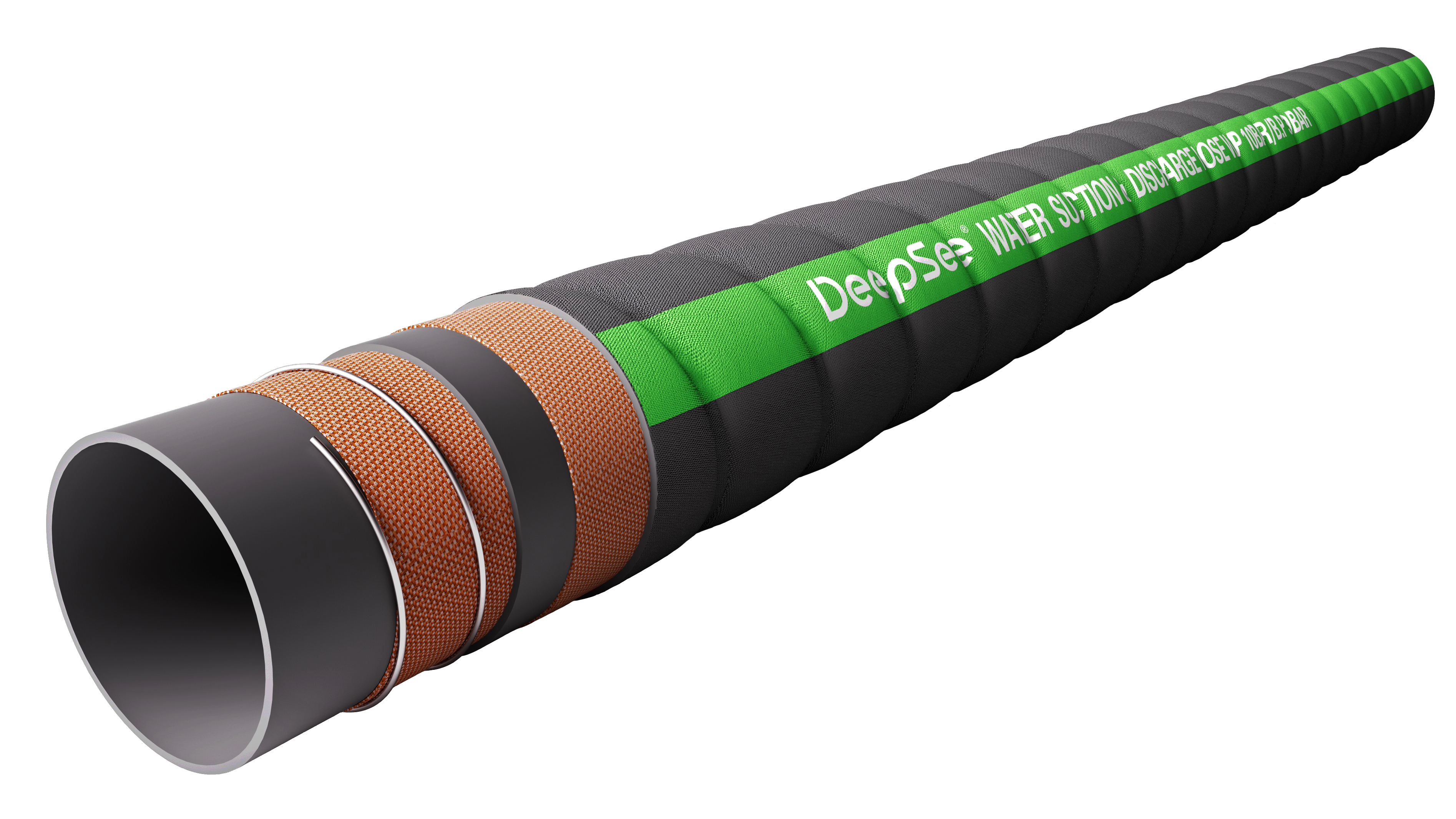

External corrugation makes our water rubber hose bend more easily without placing much pressure on the reinforcement. This reduces bending stress for operations that need frequent flexing. The corrugated surface effectively absorbs movement, vibration, and pulsation. This greatly improves durability of the hose in demanding environments. The raised ridges not only enhance bendability but also sustain surface wear when the water hose is dragged across the ground. This extends the hose’s service life.

Compared with standard rubber water hoses which have a rather smooth cloth-texture surface, the corrugated cover makes it easier to handle, coil, lay out, and move the water hose. Steel wire reinforcement prevents collapse under suction, ensuring smooth and safe water transfer. Whether you need a water hose for pumping, irrigation, or general water transfer, our corrugated water hose is a practical solution that you can trust.

mm	inch	mm		bar	psi	bar	psi	kg/m		m		mm
19	¾	30.8		10	150	30	450	0.72		60		2
25	1	36.8						0.89		60		2
32	1¼	44.8						1.19		60		2.5
38	1½	51.4						1.48		60		2.5
45	1¾	58.4						1.71		60		2.5
51	2	64.4						1.91		60		2.5
64	2½	78.4						2.48		60		2.5
76	3	90.8						3.00		60		2.5
89	3½	106.2						4.33		60		2.5
102	4	119.2						4.90		60		2.5
127	5	146.2						6.57		60		2.5
152	6	171.6						7.94		60		2.5
203	8	224.8						12.07		60		2.5
254	10	280.8						19.75		12		3
304	12	334.2						27.68		12		3

mm	inch	bar	psi	bar	psi	m
350	14	10	150	30	450	12
400	16					12
450	18					12
500	20					12
600	24					12
