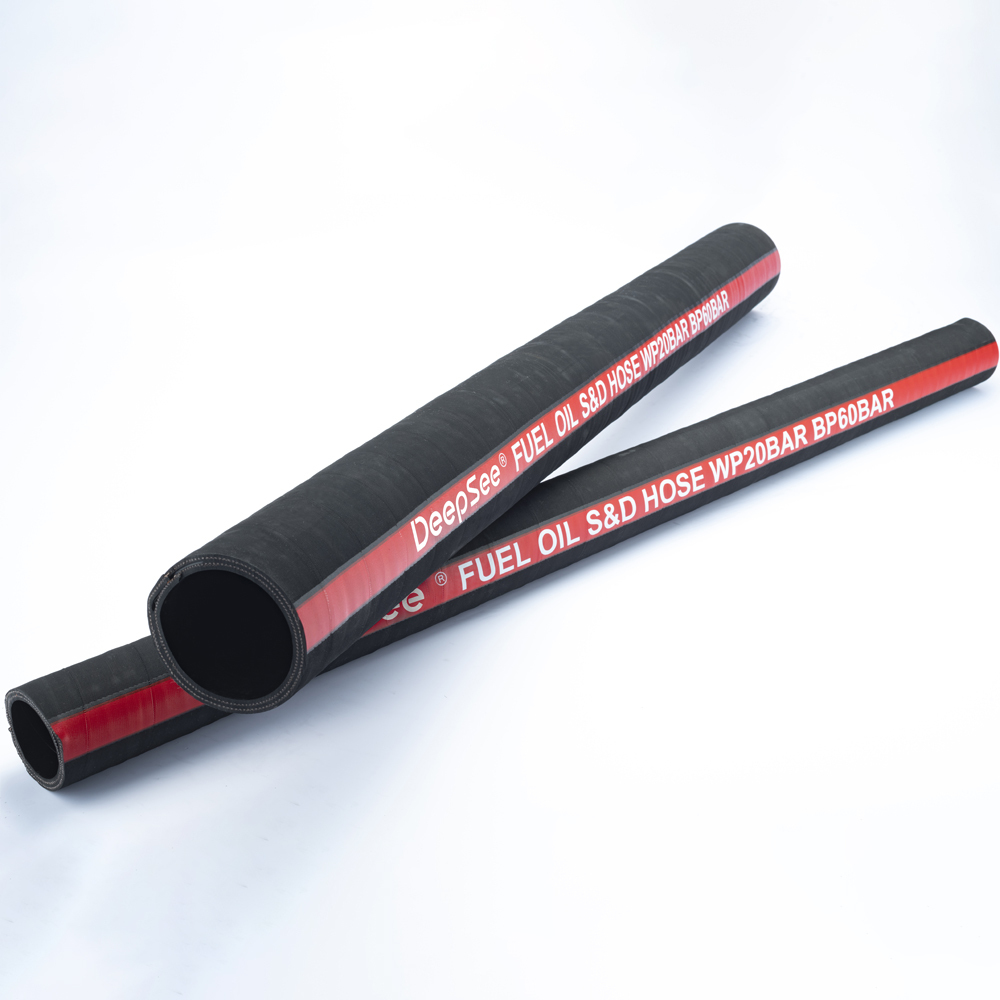

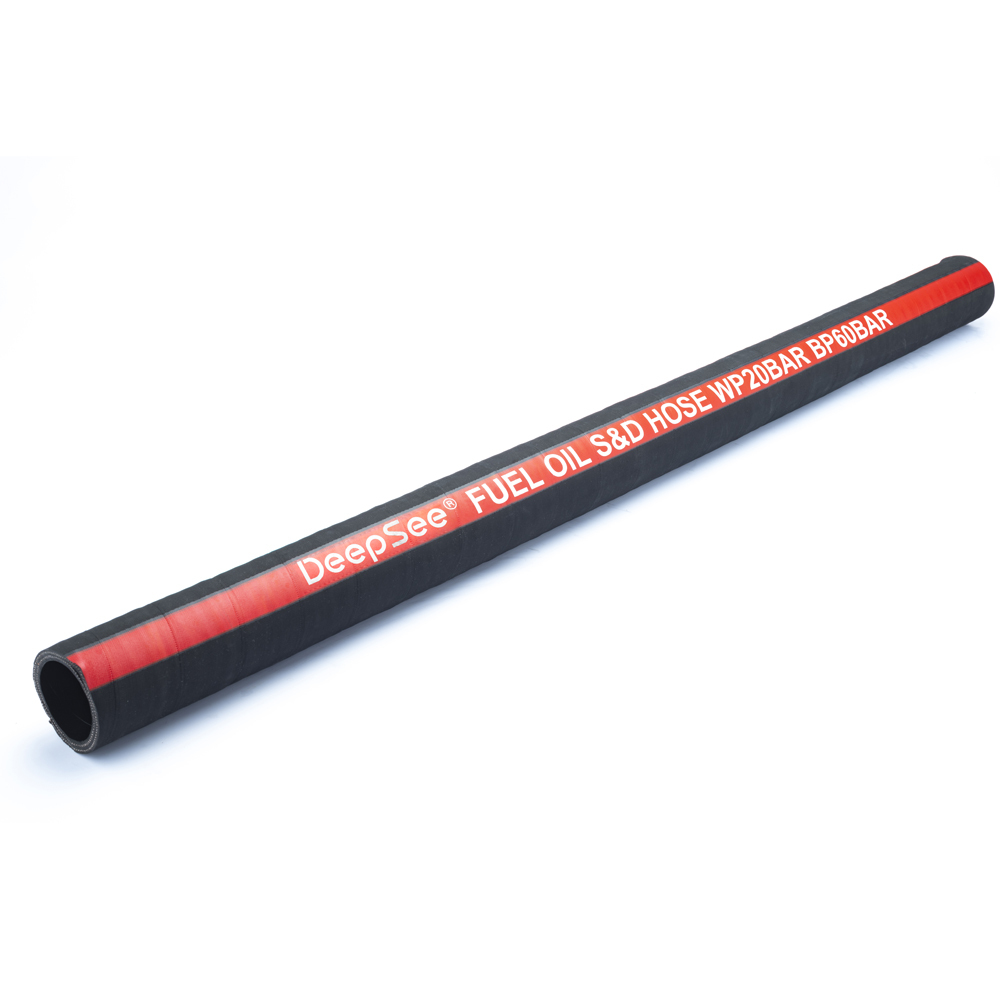

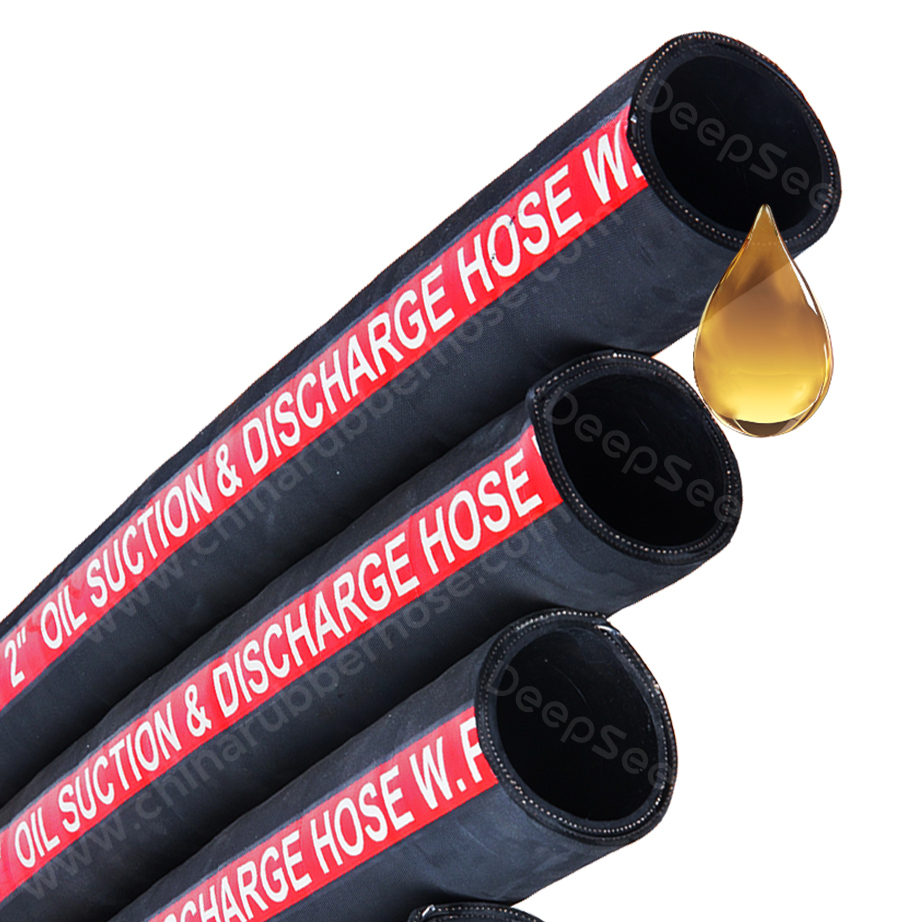

Fuel Oil Suction And Discharge Hose

Name: Fuel Oil Suction And Discharge Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Fuel suction hose, Oil suction hose, Oil suction and discharge hose, Diesel hose, Petrol hose pipe

Working temperature

-30℃～120℃

Safety factor

3:1

Min. bending radius

Medium

Diesel, gasoline, kerosene, engine oil, vehicle gear oil, etc.

Hose type

Mandrel hose

Product standard

ISO 2929

Management system

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Color & label

Make upon request

Min. order quantity

1 piece (60m)

Get The Latest Quote

Description

Fuel oil suction discharge hose description

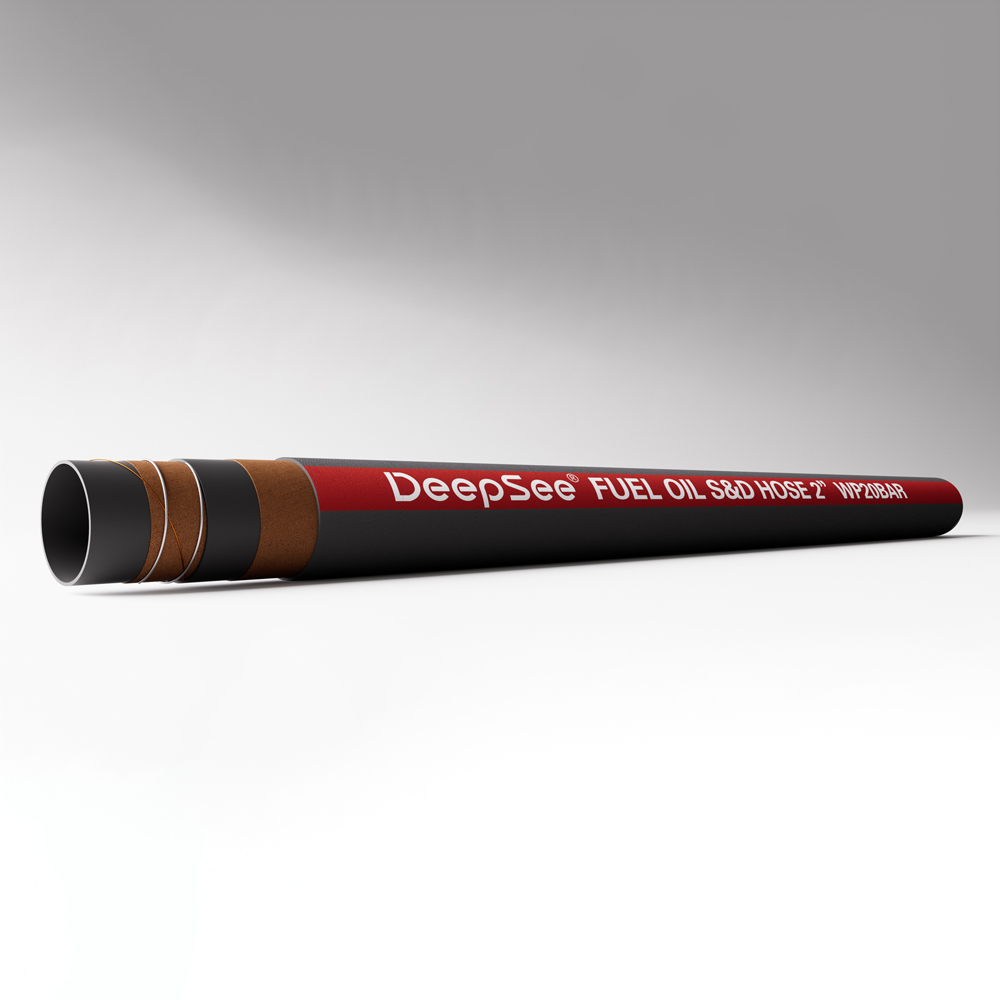

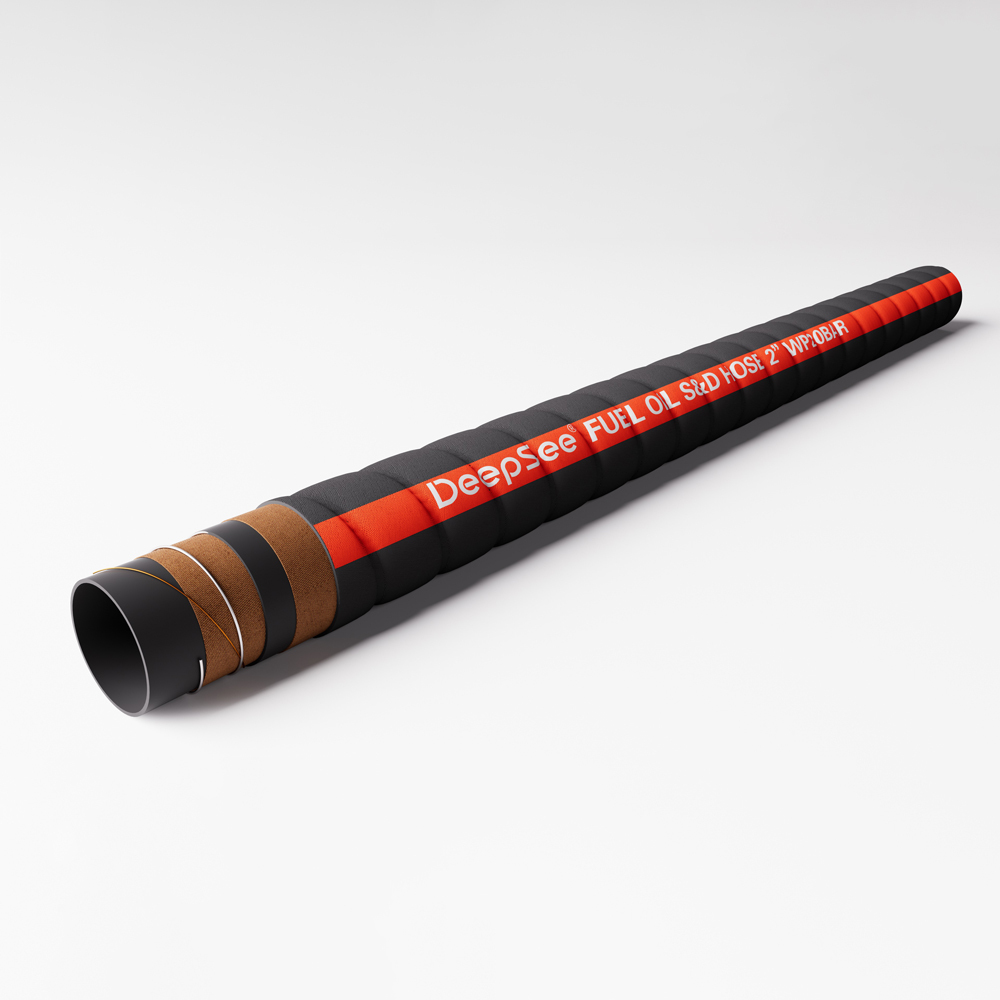

Hose type: Mandrel hose, winding structure

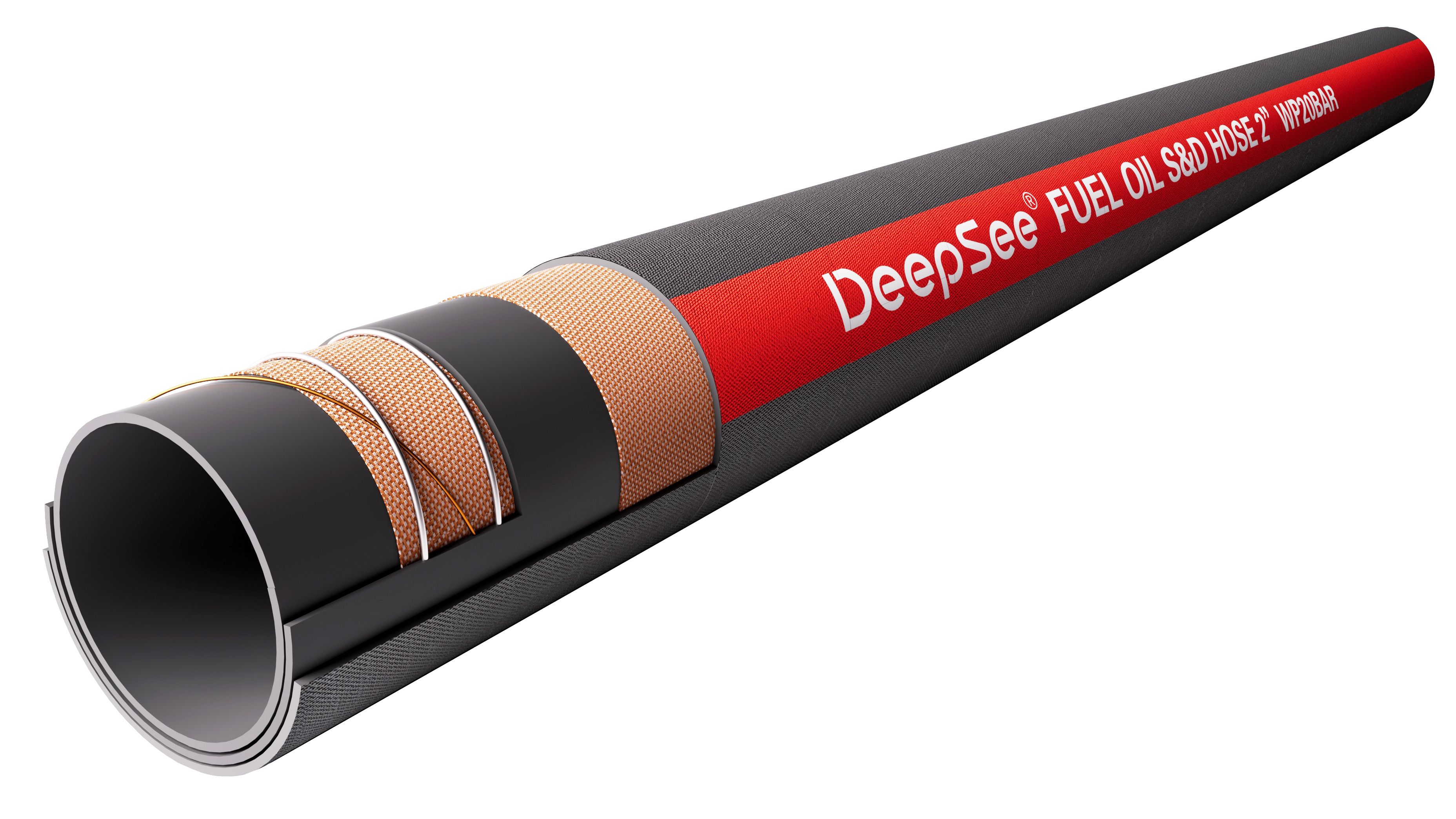

Construction:
Inner lining: Conductive or non-conductive NBR
Reinforcement: High strength textile cord + Spiral high-tensile steel wire (+ Conductive copper wire)
Cover: NBR

DeepSee® Fuel Oil Suction & Discharge Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.8	10	150	30	450	0.76	60	2
25	1	36.8					0.94	60	2
32	1¼	44.8					1.25	60	2
38	1½	51.4					1.55	60	2.5
45	1¾	58.4					1.80	60	2.5
51	2	64.4					2.00	60	2.5
64	2½	78.4					2.71	60	2.5
76	3	90.8					3.19	60	2.5
89	3½	106.2					4.55	60	2.5
102	4	119.2					5.16	60	2.5
127	5	146.2					7.33	60	2.5
152	6	172					8.87	60	2.5
203	8	226.4					13.74	60	2.5
254	10	282.6					22.00	13	3
304	12	335.2					29.42	13	3

I.D

O.D

W.P

B.P

Weight

Max. Length

Inner
Rubber
Thickness

inch

bar

psi

bar

psi

kg/m

30.8

300

900

0.76

36.8

0.94

1¼

47.2

1.53

2.5

1½

53.8

1.88

2.5

1¾

60.8

2.16

2.5

66.8

2.41

2.5

2½

81.2

3.32

2.5

3.92

2.5

3½

107.8

4.92

2.5

102

120.8

5.57

2.5

127

149.8

8.56

2.5

152

175.6

10.29

2.5

203

231.2

16.38

2.5

I.D		O.D	W.P		B.P		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
51	2	72	40	600	120	1800	3.427	60	3
76	3	100.6					5.943	60	3
102	4	128.8					8.239	60	3
152	6	186.8					15.484	60	3
203	8	247.4					26.912	60	4

DeepSee® Conductive Fuel Oil Suction & Discharge Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.8	20	300	60	900	0.76	60	2
25	1	36.8					0.94	60	2
32	1¼	44.8					1.25	60	2.5
38	1½	51.4					1.55	60	2.5
45	1¾	58.4					1.80	60	2.5
51	2	64.4					2.00	60	2.5
64	2½	78.4					2.71	60	2.5
76	3	90.8					3.19	60	2.5
89	3½	106.2					4.55	60	2.5
102	4	119.2					5.16	60	2.5
127	5	146.2					7.33	60	2.5
152	6	172					8.87	60	2.5
25	1	42.6	49	710	147	2130	1.564	60	3

For other specifications or special requirements, please contact our team to customize.
