Hose type: Mandrel hose, winding structure

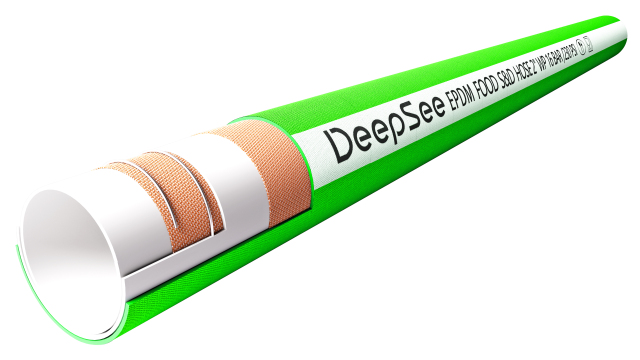

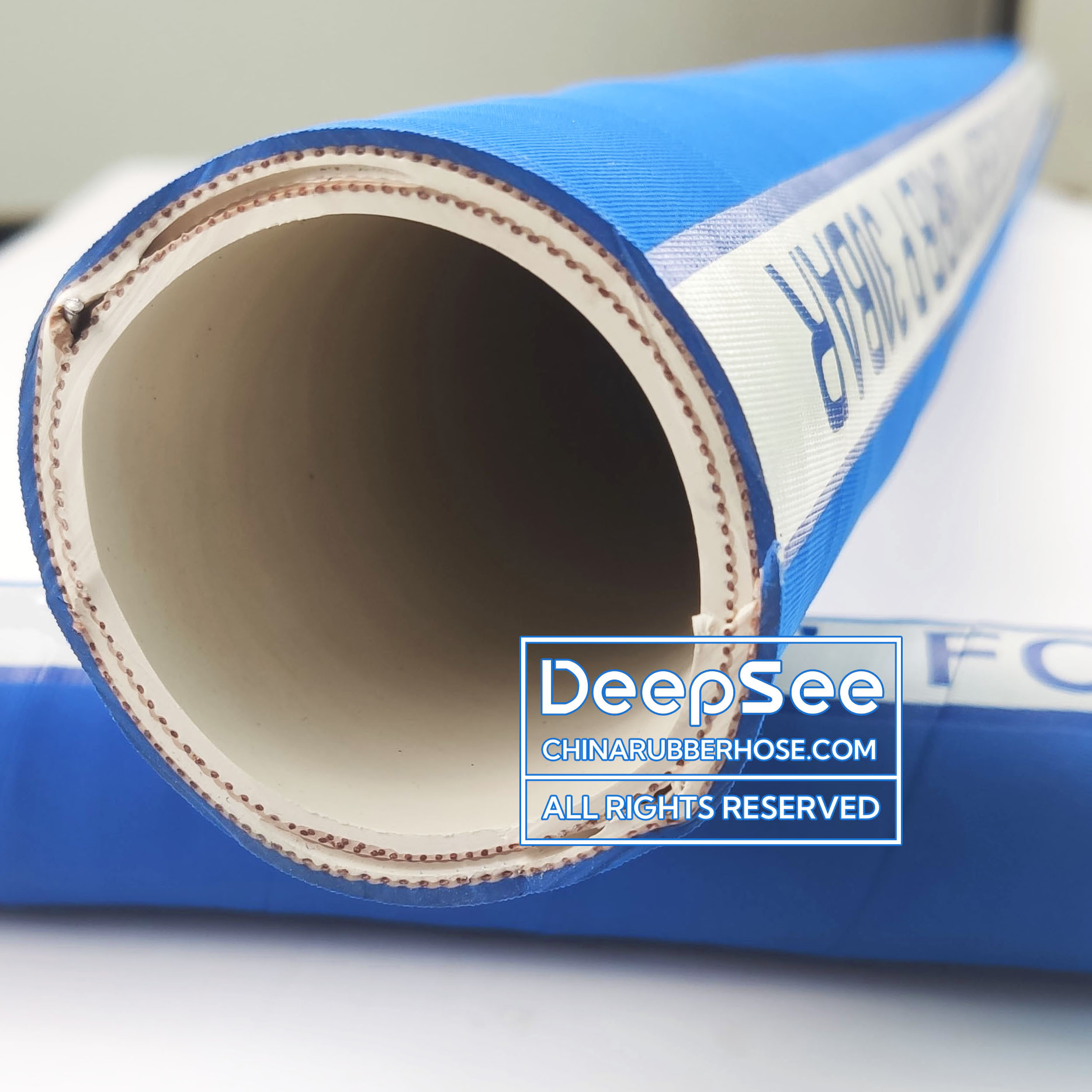

Construction:
Inner lining: EPDM
Reinforcement: High-tensile spiral textile cord + Helix steel wire
Outer cover: EPDM
Feature: ① Strong and flexible ② No odor, no taste, no contamination ③ Greatly resistant to acidic and alkaline media
④ Excellent heat adaptability ⑤ Good resistance to weather, ozone, and aging
Medium: 1. Hot & cold drinking water
2. Soft drinks, e.g. cola, soda.
3. Beer, wine, alcohol under 96%
4. Fruit & vegetable juices, especially highly acidic ones, e.g. lemon juice, orange juice.
5. Non-fat yoghurt, skim or low-fat milk, plant-based beverages, e.g. almond milk, soy milk.
6. Non-oily sauces, e.g. soy sauce, ketchup.
7. Acidic, alkaline, or water-based additives and flavourings:
Vinegar, sweetening agent (sucralose, aspartame), preservative (potassium sorbate), antioxidant (vitamin C)
CAN'T FIND WHAT YOU NEED ABOVE? CONTACT US.
OUR FOOD HOSE CAN TRANSFER FAR MORE THAN THAT.
DeepSee® EPDM Food Suction & Discharge Hose Specifications
(Safety factor 3:1)
 |
 |
 |
 |
 |
 |
 |
| mm |
inch |
mm |
bar |
psi |
bar |
psi |
kg/m |
m |
mm |
| 19 |
¾ |
30.8 |
10
|
150
|
30
|
450
|
0.71 |
40 |
2 |
| 25 |
1 |
36.8
|
0.88 |
40 |
2 |
| 32 |
1¼ |
44.8 |
1.18 |
40 |
2.5 |
| 38 |
1½ |
51.4 |
1.47 |
40 |
2.5 |
| 45 |
1¾ |
58.4 |
1.70 |
40 |
2.5 |
| 51 |
2 |
64.4 |
1.90 |
40 |
2.5 |
| 64 |
2½ |
78.4 |
2.56 |
40 |
2.5 |
| 76 |
3 |
90.8 |
3.02 |
40 |
2.5 |
| 102 |
4 |
119.2 |
4.87 |
40 |
2.5 |
| 152 |
6 |
171.6 |
8.23 |
40 |
2.5 |
| I.D. |
O.D. |
W.P. |
B.P. |
Weight |
Max. Length |
Inner Rubber Thickness |
| mm |
inch |
mm |
bar |
psi |
bar |
psi |
kg/m |
m |
mm |
| 19 |
¾ |
30.8 |
16
|
230
|
48
|
690
|
0.71 |
40 |
2 |
| 25 |
1 |
36.8
|
0.88 |
40 |
2 |
| 32 |
1¼ |
45.2 |
1.23 |
40 |
2.5 |
| 38 |
1½ |
51.8 |
1.53 |
40 |
2.5 |
| 45 |
1¾ |
59.2 |
1.79 |
40 |
2.5 |
| 51 |
2 |
65.2 |
2.00 |
40 |
2.5 |
| 64 |
2½ |
78.8 |
2.59 |
40 |
2.5 |
| 76 |
3 |
93.2 |
3.62 |
40 |
2.5 |
| 89 |
3½ |
107.0 |
4.57 |
40 |
2.5 |
| 102 |
4 |
120.4 |
5.22 |
40 |
2.5 |
| 152 |
6 |
174.8 |
9.48 |
40 |
2.5 |
| I.D. |
O.D. |
W.P. |
B.P. |
Weight |
Max. Length |
Inner Rubber Thickness |
| mm |
inch |
mm |
bar |
psi |
bar |
psi |
kg/m |
m |
mm |
| 19 |
¾ |
31.2 |
20
|
300
|
60
|
900
|
0.75 |
40 |
2 |
| 25 |
1 |
37.2
|
0.93 |
40 |
2 |
| 32 |
1¼ |
47.2 |
1.43 |
40 |
2.5 |
| 38 |
1½ |
53.8 |
1.76 |
40 |
2.5 |
| 45 |
1¾ |
61.6 |
2.18 |
40 |
2.5 |
| 51 |
2 |
67.6 |
2.43 |
40 |
2.5 |
| 64 |
2½ |
81.2 |
3.10 |
40 |
2.5 |
| 76 |
3 |
94.0 |
3.68 |
40 |
2.5 |
| 102 |
4 |
120.8 |
5.25 |
40 |
2.5 |
| 152 |
6 |
175.2 |
9.53 |
40 |
2.5 |
DeepSee® EPDM Food Suction & Discharge Hose Specifications
(Safety factor 4:1)
|
|
|
|
|
|
|
| mm |
inch |
mm |
bar |
psi |
bar |
psi |
kg/m |
m |
mm |
| 19 |
¾ |
31.2 |
20
|
300
|
80
|
1200
|
0.75 |
40 |
2 |
| 25 |
1 |
37.2
|
0.93 |
40 |
2 |
| 32 |
1¼ |
47.2 |
1.43 |
40 |
2.5 |
| 38 |
1½ |
53.8 |
1.76 |
40 |
2.5 |
| 45 |
1¾ |
61.6 |
2.18 |
40 |
2.5 |
| 51 |
2 |
67.6 |
2.43 |
40 |
2.5 |
| 64 |
2½ |
84.0 |
3.67 |
40 |
2.5 |
| 76 |
3 |
96.0 |
4.26 |
40 |
2.5 |
| 102 |
4 |
124.0 |
6.14 |
40 |
2.5 |
| 152 |
6 |
178.8 |
10.93 |
40 |
2.5 |
