Home > Product Category > Industrial Hose > EPDM Hose > EPDM Suction Hose

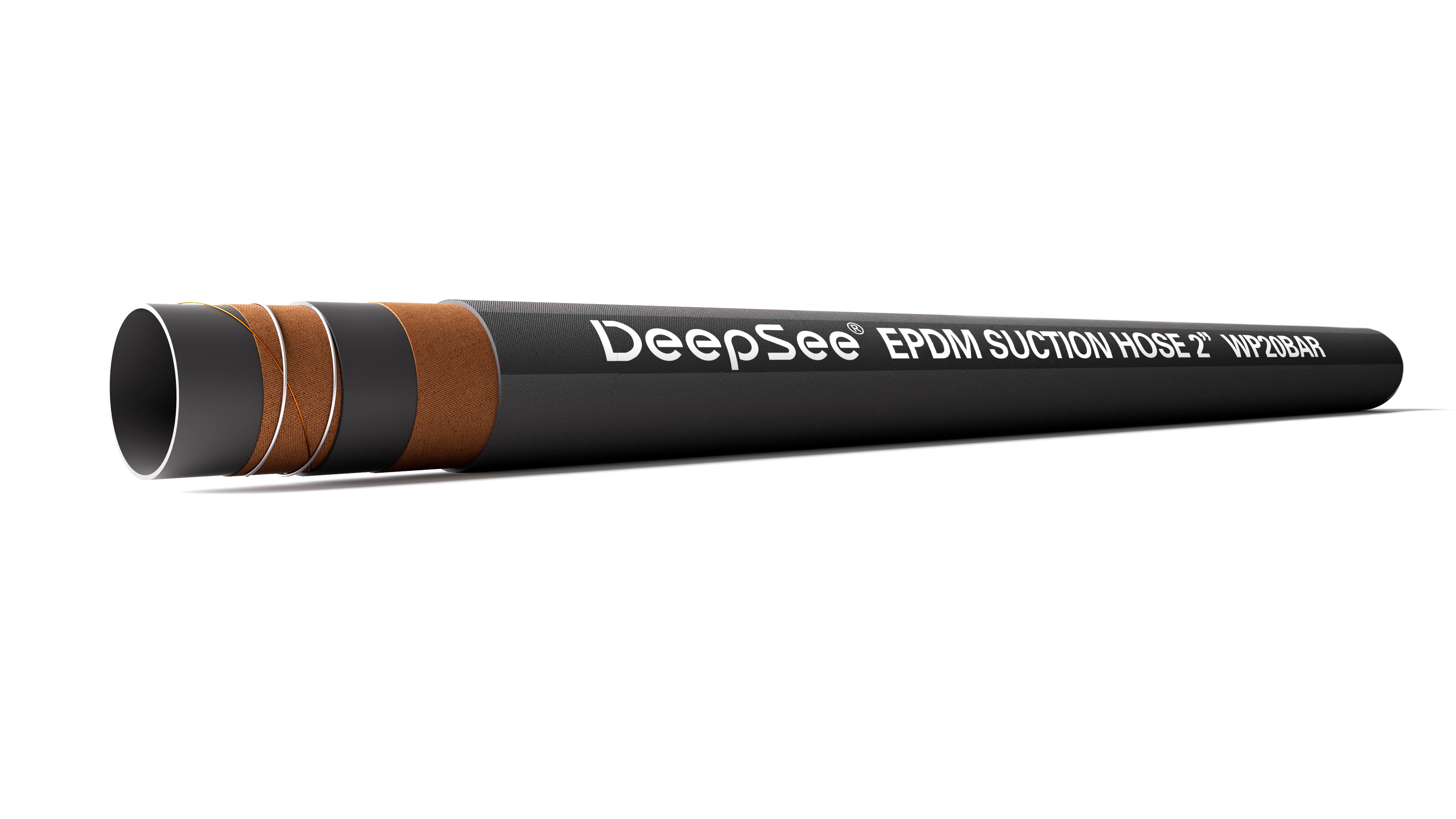

EPDM Suction Hose

Working temperature

-40℃～150℃

Safety factor

3:1

Min. bending radius

4D

Management system

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Hose type

Mandrel hose, winding structure

Manufacturer type

OEM, ODM

Color & label

Customization available

Min. order quantity

1 piece (60m)

Get The Latest Quote

Description

Inner rubber: EPDM
Reinforcement: Steel wire helix and spiral piled polyester tire cord
Cover: EPDM
The color of EPDM rubber can be customized.

DeepSee® EPDM Suction & Discharge Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.8	10	150	30	450	0.64	60	2
22	⅞	33.8					0.72	60	2
25	1	36.8					0.79	60	2
28	1⅛	39.8					0.87	60	2
32	1¼	44.8					1.06	60	2.5
36	1⁷⁄₁₆	49.4					1.26	60	2.5
38	1½	51.4					1.32	60	2.5
45	1¾	58.4					1.53	60	2.5
48	1⅞	61.4					1.61	60	2.5
51	2	64.4					1.70	60	2.5
60	2⅜	74.4					2.18	60	2.5
64	2½	78.4					2.31	60	2.5
70	2¾	84.4					2.53	60	2.5
76	3	90.8					2.73	60	2.5
89	3½	106.2					3.93	60	2.5
102	4	119.2					4.45	60	2.5
127	5	146.2					6.33	60	2.5
152	6	171.2					7.55	60	2.5
203	8	224.8					11.24	60	2.5

I.D		O.D	W.P		B.P		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.8	16	230	48	690	0.64	60	2
25	1	36.8					0.79	60	2
32	1¼	45.2					1.11	60	2.5
38	1½	51.8					1.38	60	2.5
45	1¾	59.2					1.62	60	2.5
51	2	65.2					1.80	60	2.5
64	2½	78.8					2.34	60	2.5
76	3	93.2					3.32	60	2.5
89	3½	107.4					4.23	60	2.5
102	4	120.4					4.79	60	2.5

I.D		O.D	W.P		B.P		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.8	20	300	60	900	0.64	60	2
25	1	37.2					0.84	60	2
32	1¼	47.2					1.31	60	2.5
38	1½	53.8					1.61	60	2.5
51	2	66.8					2.06	60	2.5
64	2½	81.2					2.85	60	2.5
76	3	94.0					3.38	60	2.5
102	4	120.8					4.83	60	2.5
76	3	96.0	28	405	84	1215	4.00	60	2.5

DeepSee® Conductive EPDM Suction & Discharge Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.8	10	150	30	450	0.62	60	2
25	1	36.8					0.77	60	2
32	1¼	44.8					1.03	60	2.5
38	1½	51.4					1.29	60	2.5
51	2	64.4					1.66	60	2.5
64	2½	78.4					2.24	60	2.5
76	3	90.8					2.66	60	2.5
102	4	119.2					4.31	60	2.5
127	5	146.6					6.23	60	2.5
152	6	172.0					7.43	60	2.5
