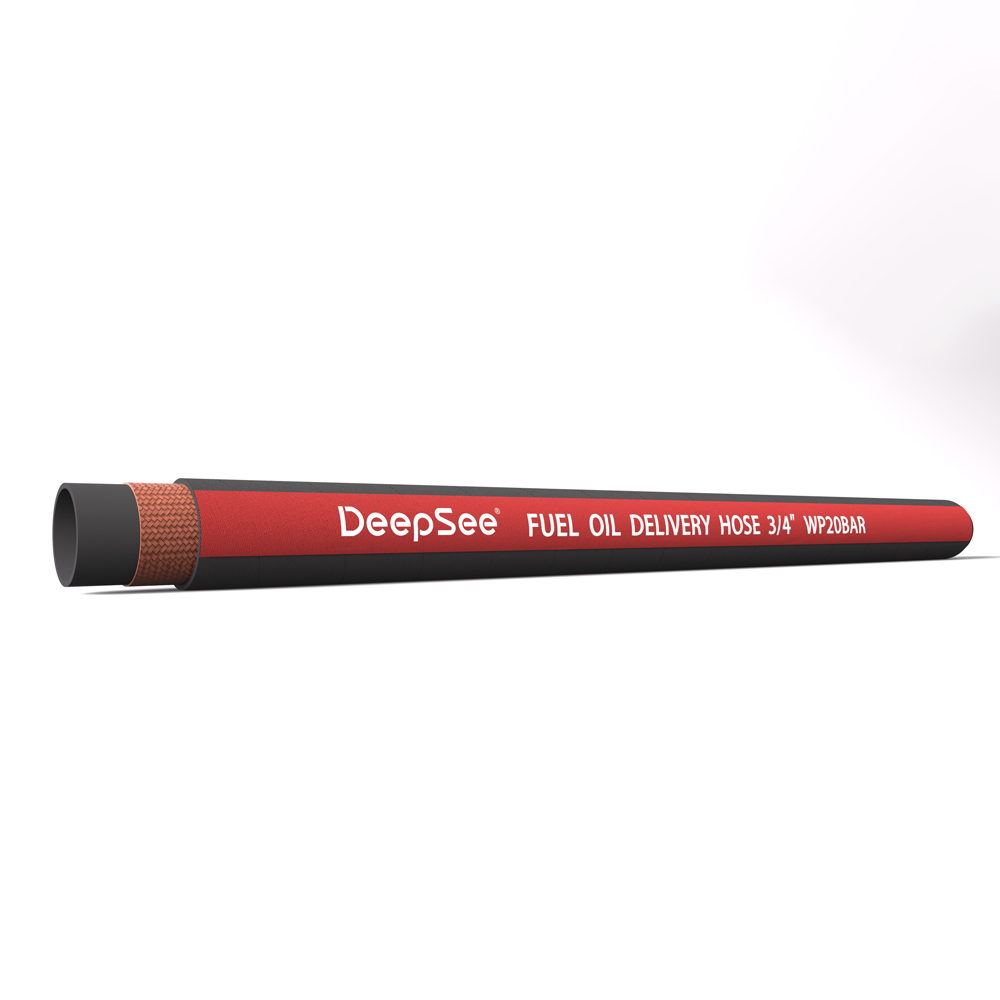

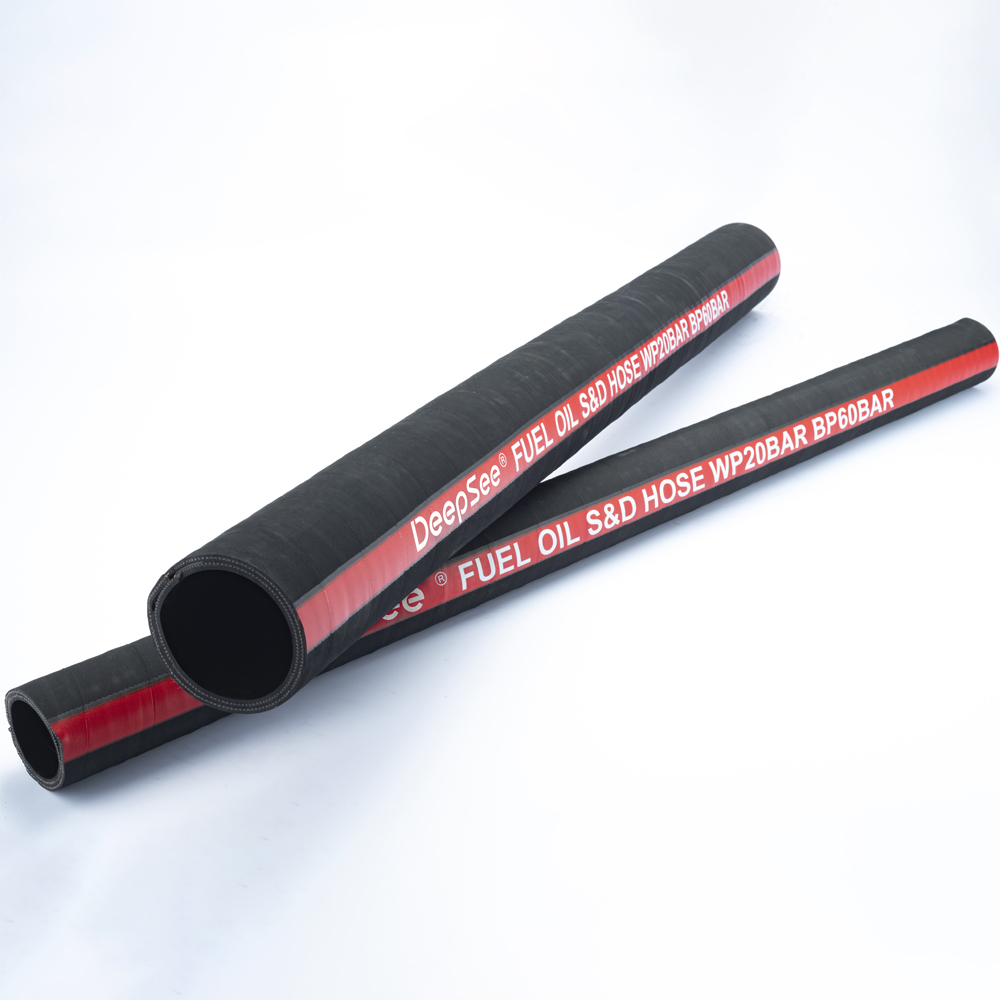

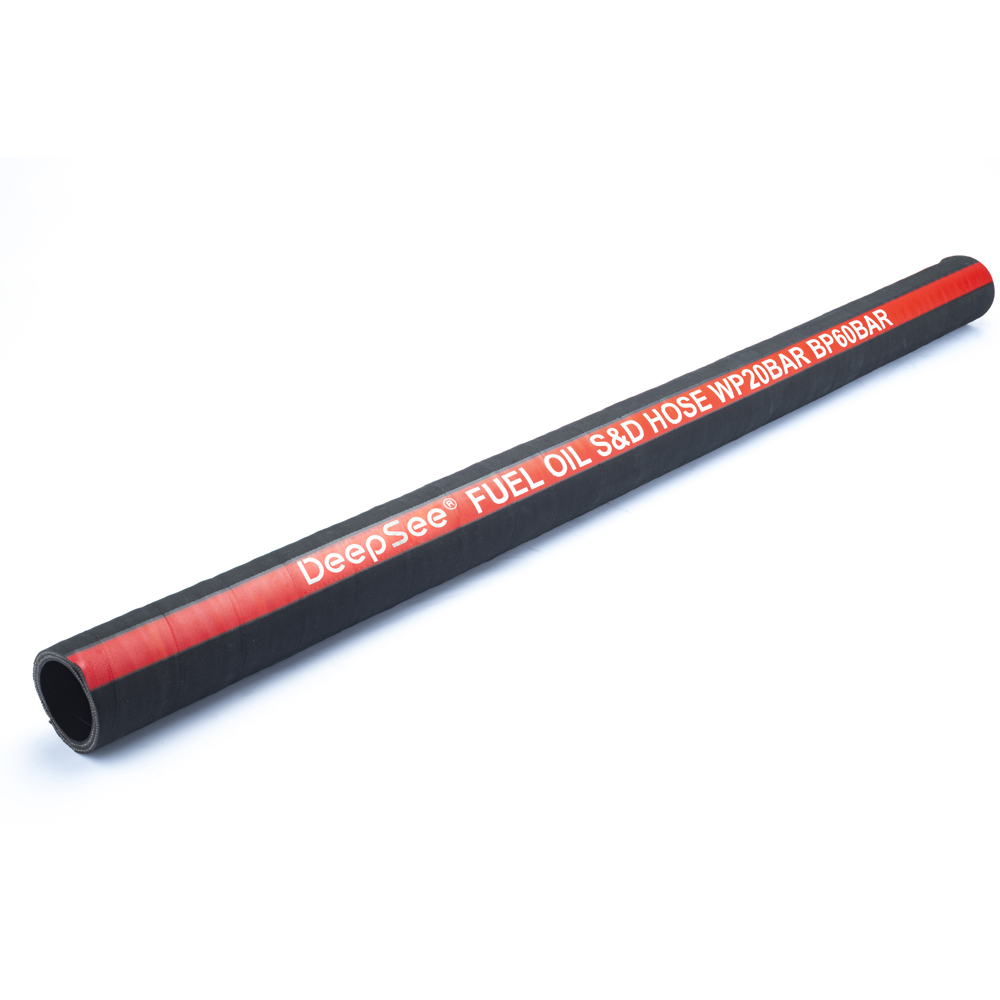

Fuel Oil Delivery Hose

Name: Fuel Oil Delivery Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Working temperature

-30℃～120℃

Safety factor

3:1

Min. bending radius

Medium

Diesel, gasoline, kerosene, engine oil, vehicle gear oil, etc.

Production standard

ISO 2929

Hose type

Mandrel hose and braided hose

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Color & label

Customization available

Min. order quantity

1 piece (mandrel hose 60m, braided hose 300m)

Get The Latest Quote

Description

Hose type: Extruded hose, braided structure
Mandrel hose, winding structure

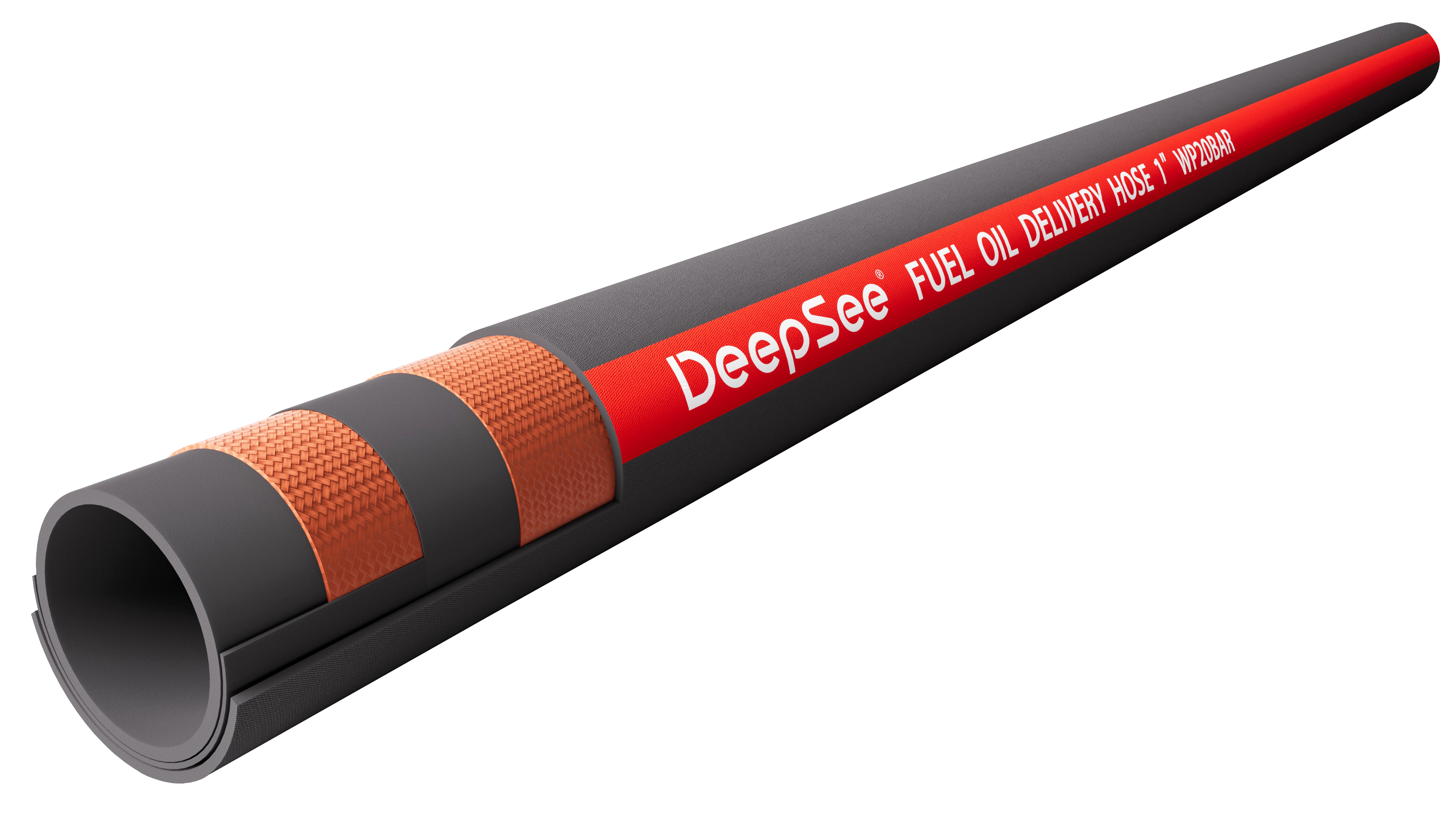

Construction:
Inner lining: NBR (Nitrile -Butadiene Rubber)
Reinforcement: ① Single or double-layer braided textile cord
② High strength textile cord + Copper wire
Outer layer: NBR

DeepSee® Fuel Oil Delivery Hose Specifications (Mandrel Hose)


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.4	10	150	30	450	0.66	60	3
25	1	36.4					0.82	60	3
32	1¼	43.8					1.06	60	3
38	1½	50.8					1.34	60	3.5
45	1¾	57.8					1.55	60	3.5
51	2	63.8					1.73	60	3.5
64	2½	77.8					2.31	60	3
76	3	89.8					2.70	60	3
89	3½	102.8					3.13	60	3
102	4	116.6					3.88	60	3
127	5	142.4					4.85	60	3
152	6	167.4					5.75	60	3
203	8	222.6					9.81	60	3

Inner diameter ≥ 1¼inch, fuel oil hose contains conductive copper wire.

I.D		O.D	W.P		B.P		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.4	20	300	60	900	0.66	60	3
25	1	36.8					0.87	60	3
32	1¼	45.8					1.27	60	3
38	1½	51.8					1.47	60	3
45	1¾	58.8					1.70	60	3
51	2	64.8					1.89	60	3
64	2½	78.6					2.54	60	3
76	3	91.4					3.01	60	3
89	3½	106.4					4.22	60	3
102	4	119.4					4.79	60	3
127	5	145.6					5.98	60	3
152	6	170.6					7.07	60	3
203	8	225.8					11.57	60	3

DeepSee® Fuel Oil Delivery Hose Specifications (Braided Hose)


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
6	¼	14	20	300	60	900	0.17	Random length	2
8	⁵⁄₁₆	16	20	300	60	900	0.20	Random length	2
10	⅜	18	20	300	60	900	0.24	Random length	2
13	½	22	20	300	60	900	0.34	100	2.5
16	⅝	26	20	300	60	900	0.45	100	3
19	¾	29.2	20	300	60	900	0.52	100	3
25	1	37	20	300	60	900	0.75	100	2.5

For other specifications or special requirements, please contact our team to customize.
