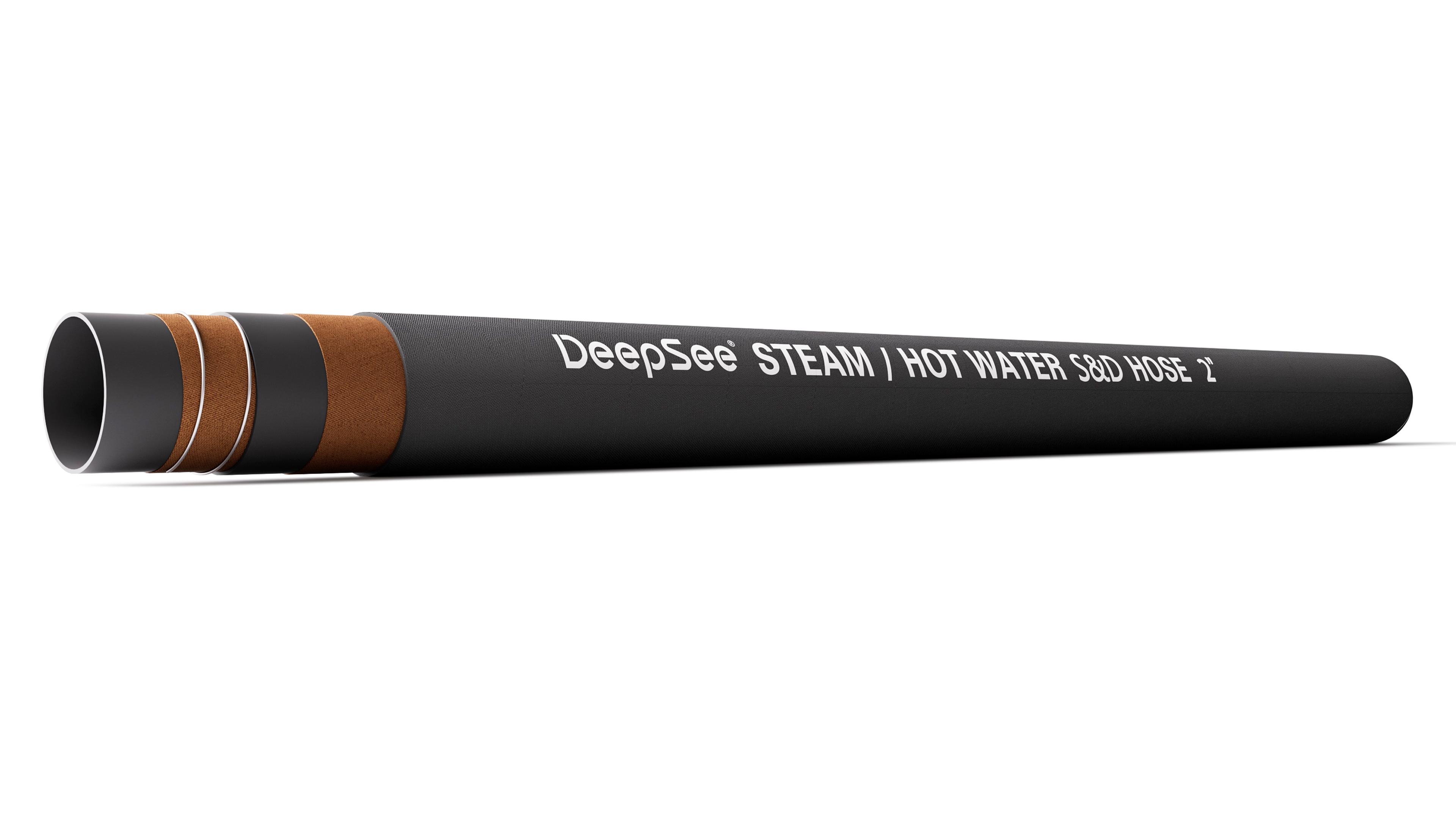

Hot Water/Steam Suction And Discharge Hose

Name: Hot Water/Steam Suction And Discharge Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

The product has a wide range of applications and can be used in conveyor systems in power plants, processing plants, chemical plants, construction and other industries.

Temperature range

-40℃～150℃

Safety factor

3:1 or 10:1

Min. bending radius

Product standard

ISO 2398

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Hose type

Mandrel hose, winding structure

Manufacturer type

OEM, ODM

Color & label

Customization available

Min. order quantity

1 piece (60m)

Get The Latest Quote

Description

Hose type: Mandrel hose, winding structure

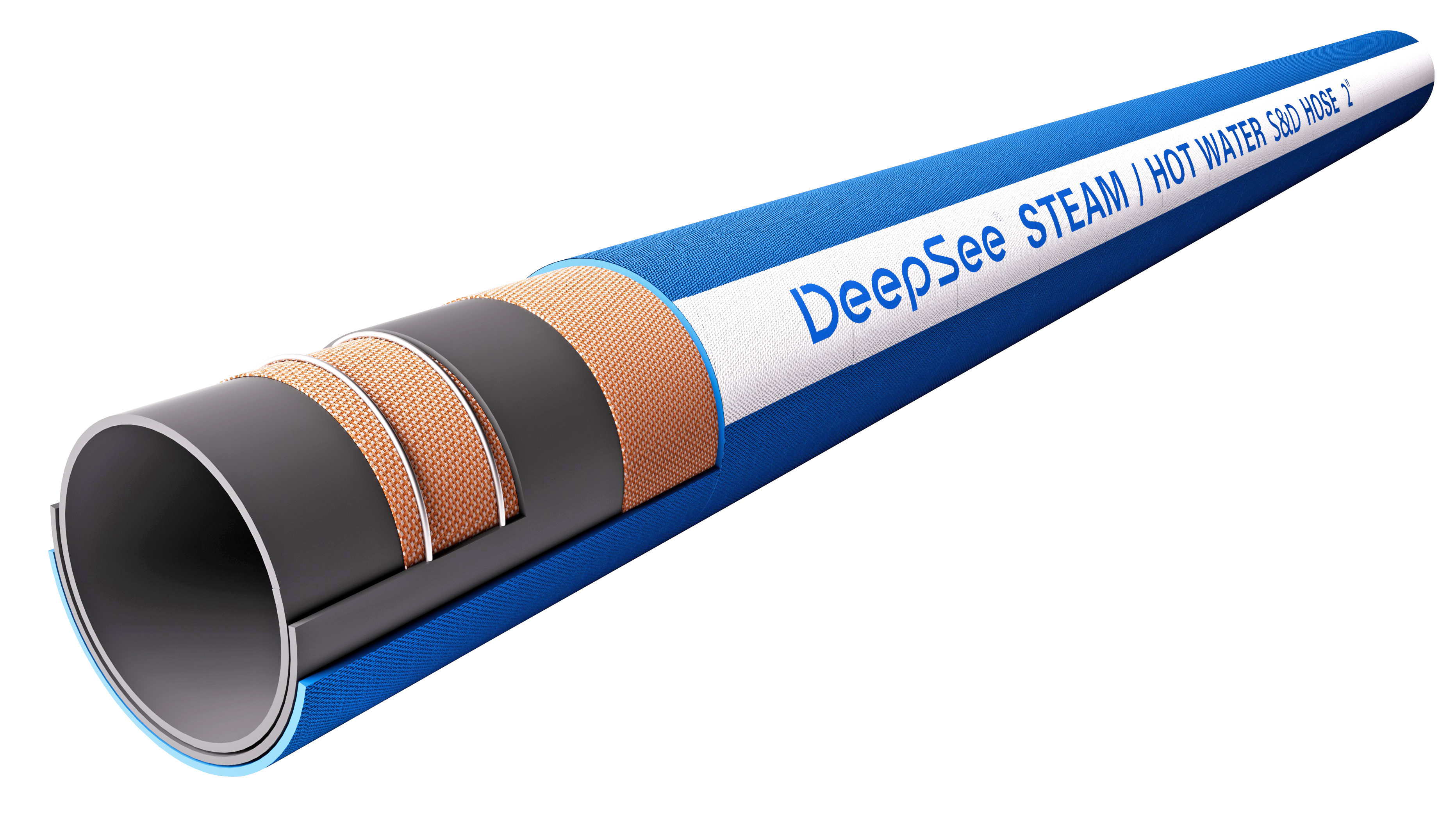

Construction:
Inner layer: EPDM
Reinforcement: High-strength spiral textile cord + Helix steel wire
Cover: EPDM

DeepSee® Hot Water/Steam Suction & Discharge Hose Specifications
(Safety Factor 3:1)


mm	inch	mm	bar	psi	bar	psi	kg/m	m
19	¾	30.8	10	150	30	450	0.65	61
25	1	36.8					0.81	61
32	1¼	44.8					1.07	61
38	1½	51.4					1.33	61
45	1¾	58.4					1.54	61
51	2	64.4					1.72	61
64	2½	78.4					2.23	61
76	3	90.8					2.71	61
89	3½	106.2					3.97	61
102	4	119.2					4.49	61

DeepSee® Hot Water/Steam Suction & Discharge Hose Specifications
(Safety Factor 10:1)


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	31.0	7	100	70	700	0.52	100	2.5
25	1	37.0					0.63	100	2.5
64	2½	78.6					2.15	60	3
76	3	91.4					2.57	60	3
89	3½	106.4					3.60	60	3
102	4	119.4					4.10	60	3

For other specifications or special requirements, please contact our team to customize.
