Hydraulic Oil Delivery Hose

Temperature range

-20℃～80℃

Safety factor

3:1 or 4:1 (Refer to the chart below)

Common size

¼"～ 4" (Customization available)

Production standard

EN854, GB/T 15329.1-2003

Application

Construction, mining, agriculture, automobile, etc.

Medium

Hydraulic oil, and other pressurized fluids.

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Description

Construction:
Inner layer: NBR + SBR

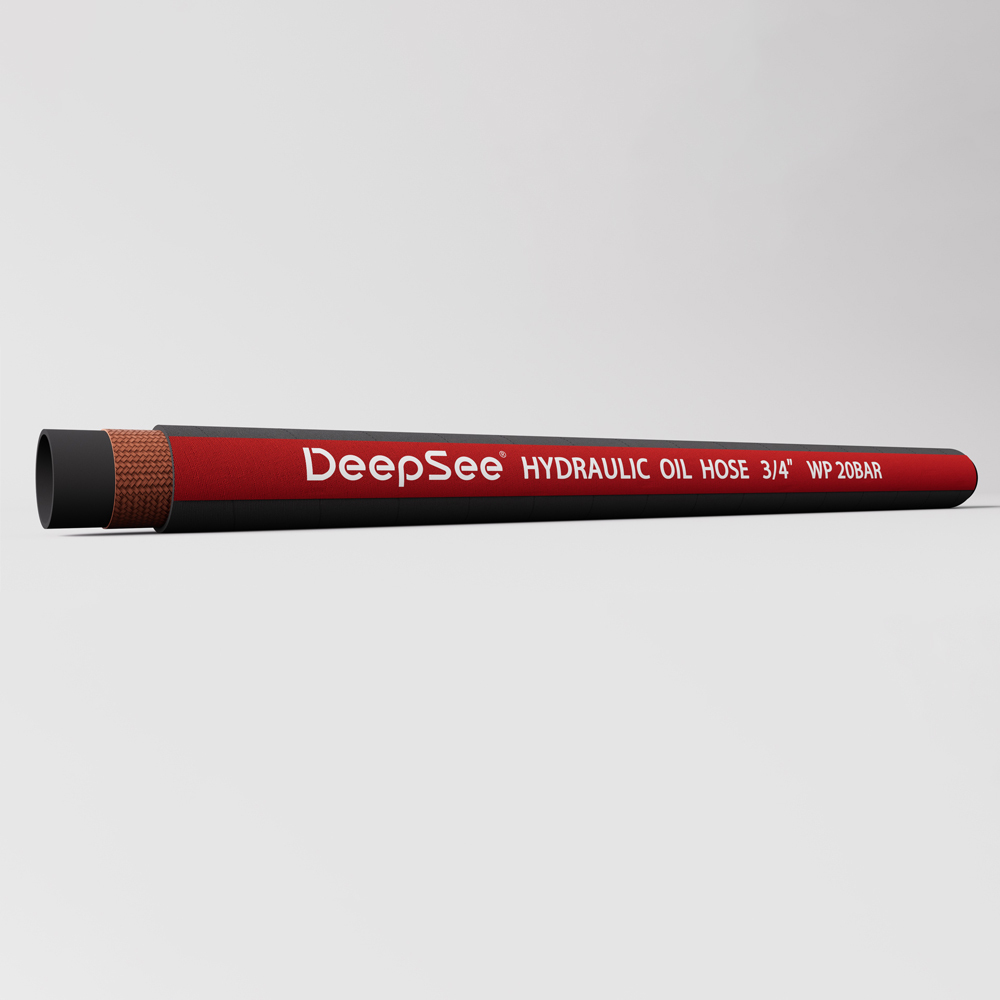

Reinforcement: ① One-layer high-strength textile braid (Extruded hose)

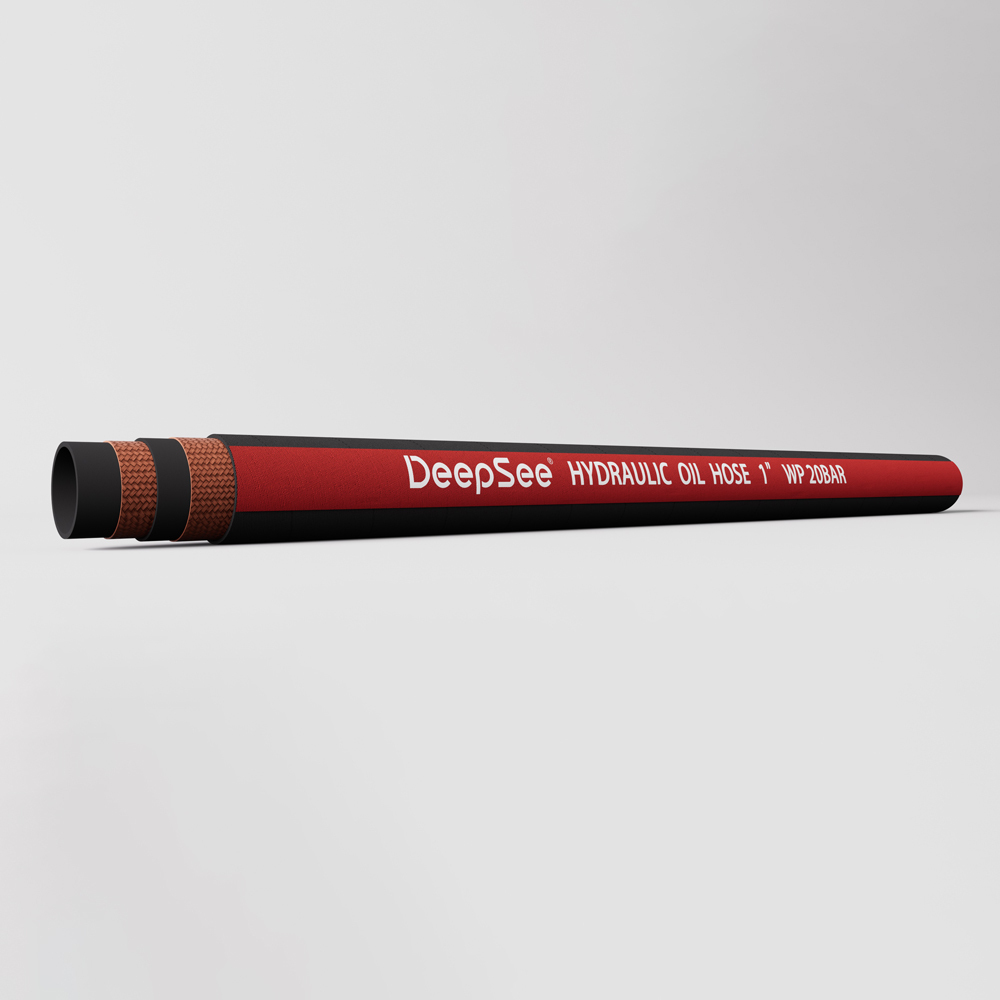

② Two-layer high-strength textile braid (Extruded hose)

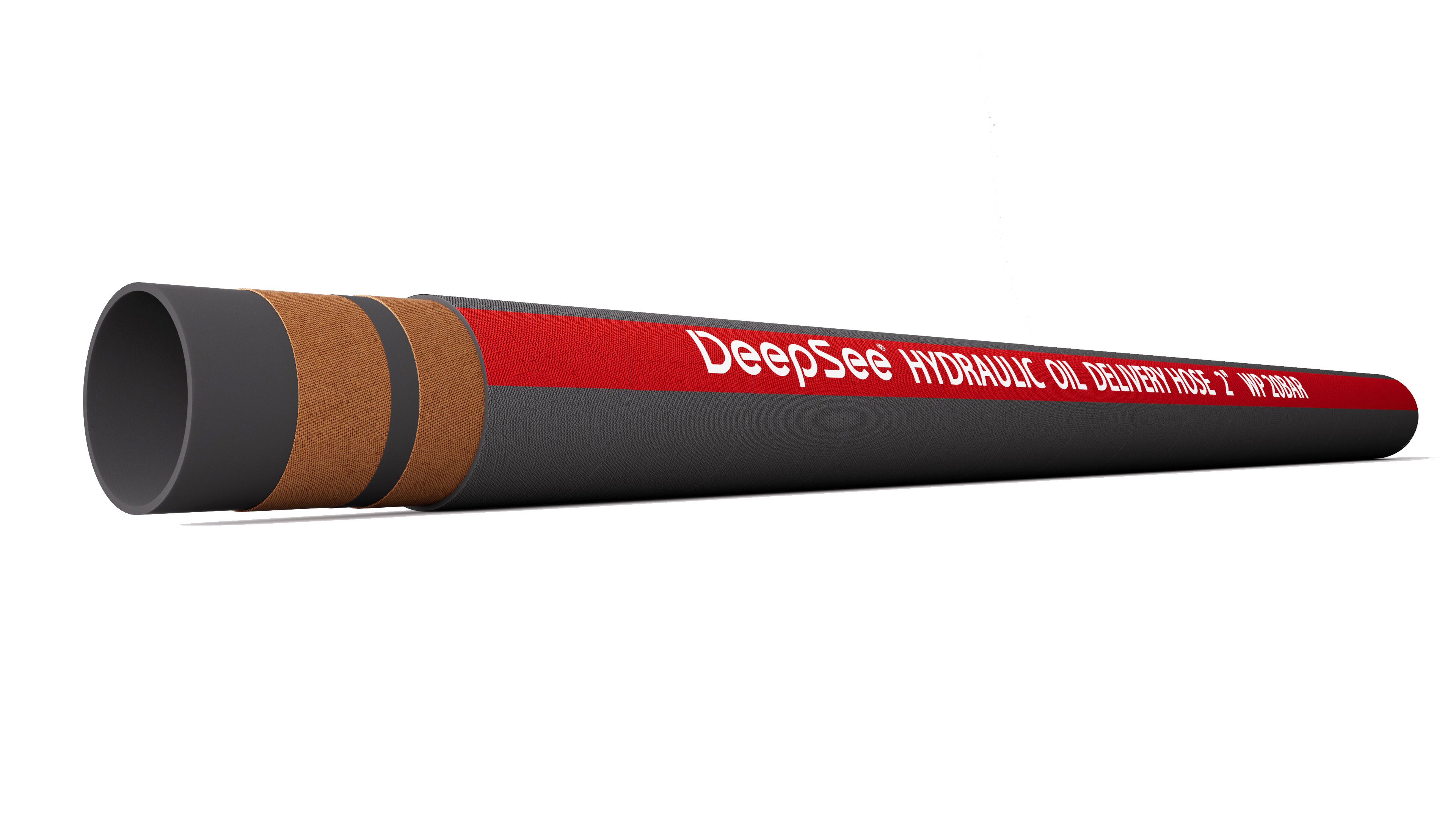

③ Two-layer wrapped textile (Mandrel hose)
Cover: SBR + CR (neoprene)
Feature: ① Strong resistance to oil and fuel ② Easy to route, install and handle ③ High flexibility ④ Lightweight
Application: ① Hydraulic equipment like excavators and cranes ② Construction and mining machinery, such as lifting systems
③ Fluid transfer between hydraulic pumps and motors ④ Agricultural machinery, e.g. tractors, harvesters
⑤ Vehicles (lubrication systems) ⑥ Pnuematic system ⑦ Irrigation system

The innermost rubber layer ensures the hose to handle hydraulic fluids without degrading or reacting with it. Meanwhile, the outer layer protects the hose from external damage, such as sunlight, weathering, abrasion. Altogether they enhance this hydraulic discharge hose's durability. There are several kinds of reinforcement. According to your requirements for pressure, flexibility, strength, machinery type, application environment, and budget, we can design and produce the hydraulic delivery hose with the optimal reinforcement for you. It's simple to move and manage DeepSee® Hydraulic Oil Delivery Hose in various applications.

Small Diameter Extruded Hose:

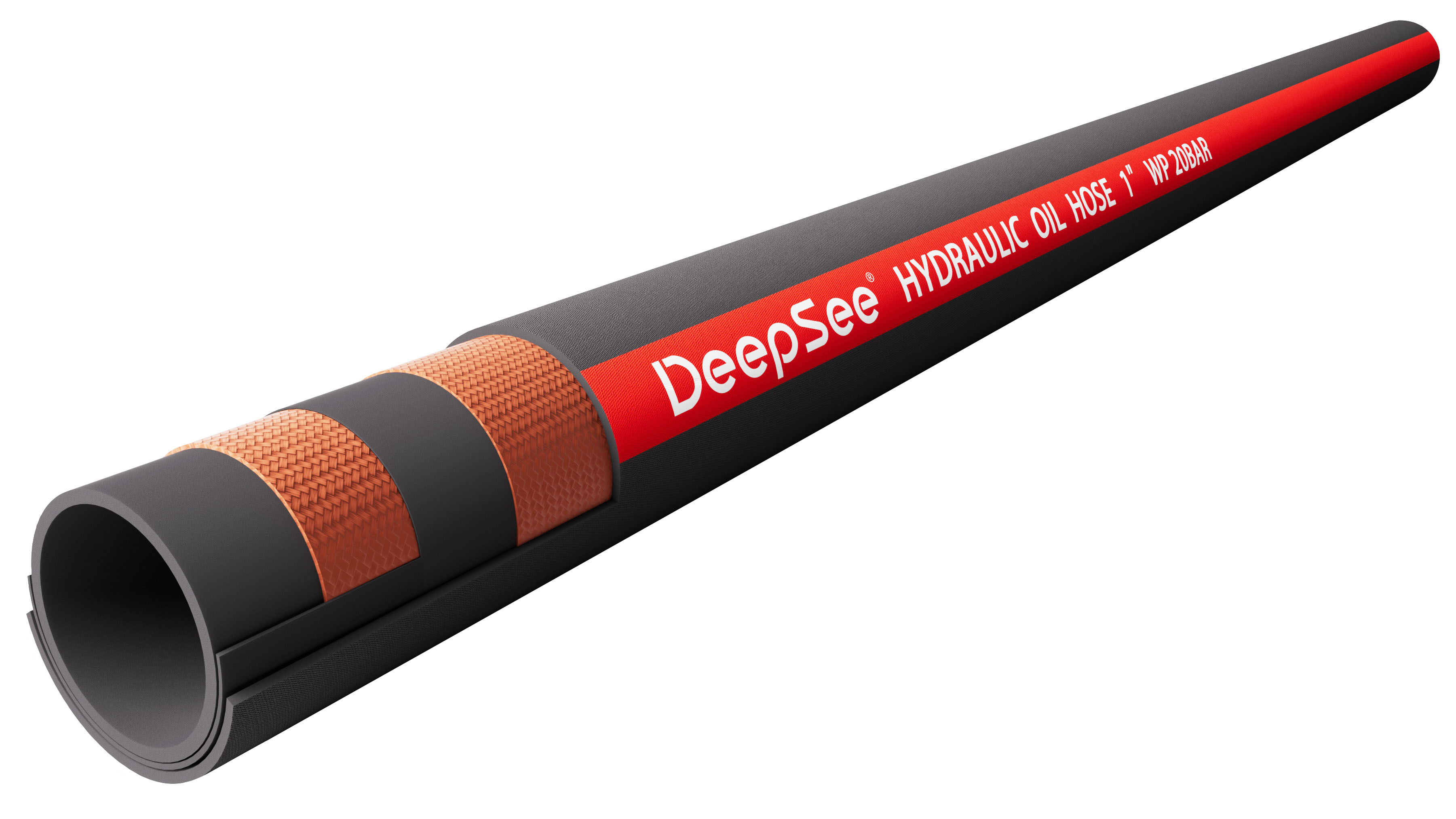

DeepSee® Braided Hydraulic Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
6	¼	14	20	300	60	900	0.17	Random Length	2
8	⁵⁄₁₆	16	20	300	60	900	0.21		2
10	⅜	18	20	300	60	900	0.24		2
13	½	22	20	300	60	900	0.34	100	2.5
16	⅝	26	20	300	60	900	0.46	100	3
19	¾	29	20	300	60	900	0.52	100	3
22	⅞	34	20	300	60	900	0.65	100	3
25	1	37	20	300	60	900	0.77	100	2.5

Mandrel Hose:

DeepSee® Hydraulic Oil Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
22	⅞	33.4	10	300	30	900	0.73	60	3
36	1⅖	48.8	10	300	30	900	1.28	60	3.5
41	1⅗	53.8	10	300	30	900	1.43	60	3.5
57	2⅕	71.6	20	600	60	1800	2.30	60	3
70	2¾	85.4	20	600	60	1800	2.80	60	3

I.D.		O.D.	W.P.		B.P.		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
13	½	22.2	20	600	80	2400	0.34	100	2.5
19	¾	31.0	20	600	80	2400	0.61	100	2.5
25	1	37.4	20	600	80	2400	0.76	100	2.5
32	1¼	45.8	20	600	80	2400	1.27	60	3
38	1½	52.6	20	600	80	2400	1.62	60	3
51	2	65.6	20	600	80	2400	2.09	60	3
64	2½	81.4	20	600	80	2400	3.17	60	3
76	3	93.4	20	600	80	2400	3.70	60	3
89	3½	107.6	20	600	80	2400	4.34	60	3
102	4	120.6	20	600	80	2400	4.91	60	3
