Material Handling Hose

Name: Material Handling Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Cement hose / Concrete hose / Slurry hose / Mining hose / Grout hose / Mud hose / Gravel hose / Concrete delivery hose

Work temperature

-20℃～80℃

Safety factor

3:1

Akron abrasion coefficient

≤0.06mm³

Medium

Cement, concrete, dry cement, mud, slurry, sand, mineral, coal, stone, etc.

Product standard

HG/T2490-93, GB/T 27571:2011 (Concrete hose)

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Get The Latest Quote

Description

Bulk material handling hose can deliver minerals, ores, coal, mud, slurry, sludge, sand, gravel, grout, clay, cement, concrete, dry cement, woodchips, ash, plastic pellets, stone in loose bulk form, lime etc. Among all these mediums, concrete, cement, slurry, grout and minerals are most commonly delivered, therefore our material handling hose is also known as slurry hose, mining hose, concrete pump hose, grout hose, cement hose, or concrete hose. Highly resistant to abrasion, our bulk material hose can transport dry solid substances very well. It can also handle a mixture of mud, slurry and water.
For food grade bulk material transfer, please use our food hose.

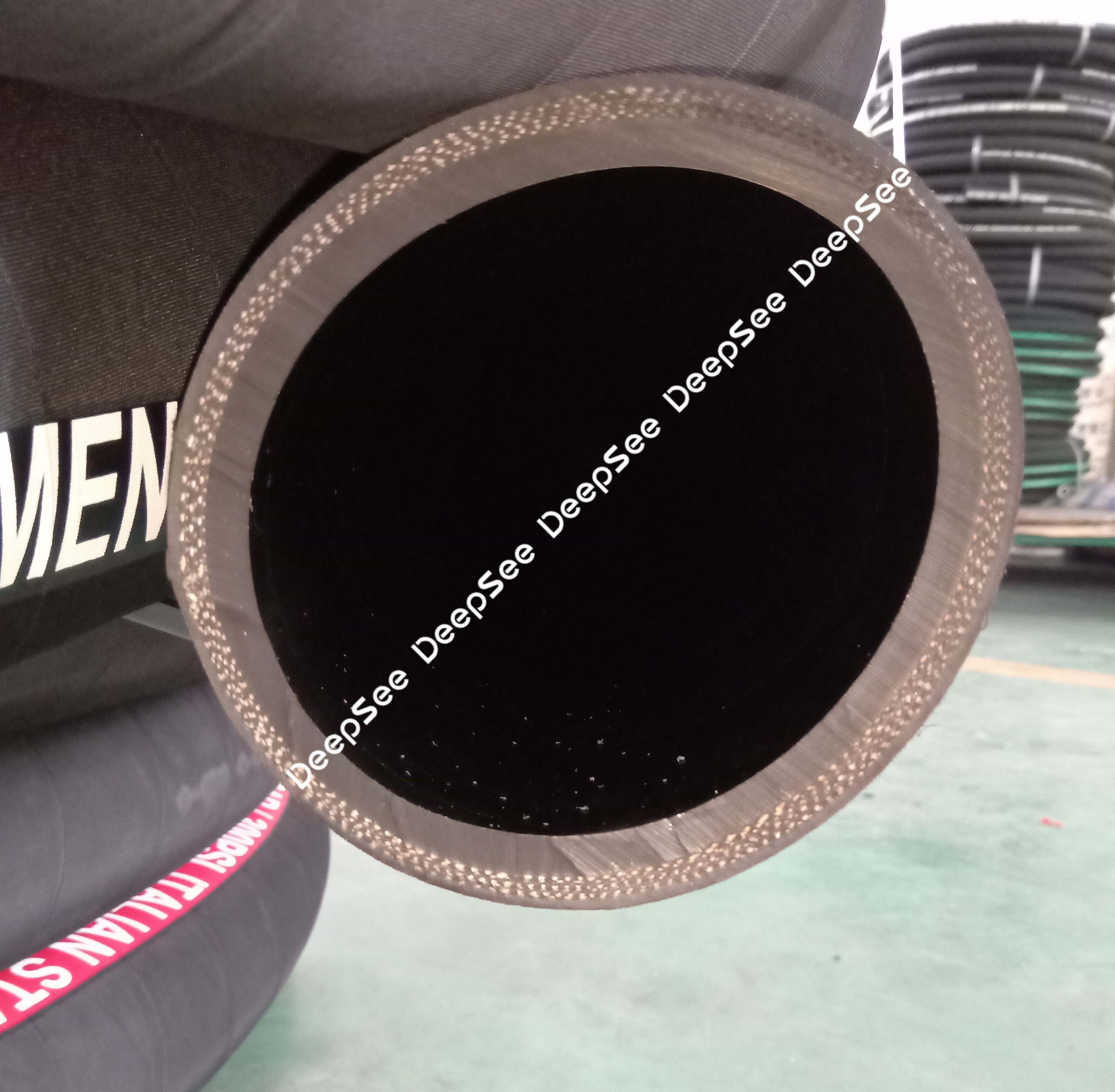

Concrete hose - DeepSee material handling hose

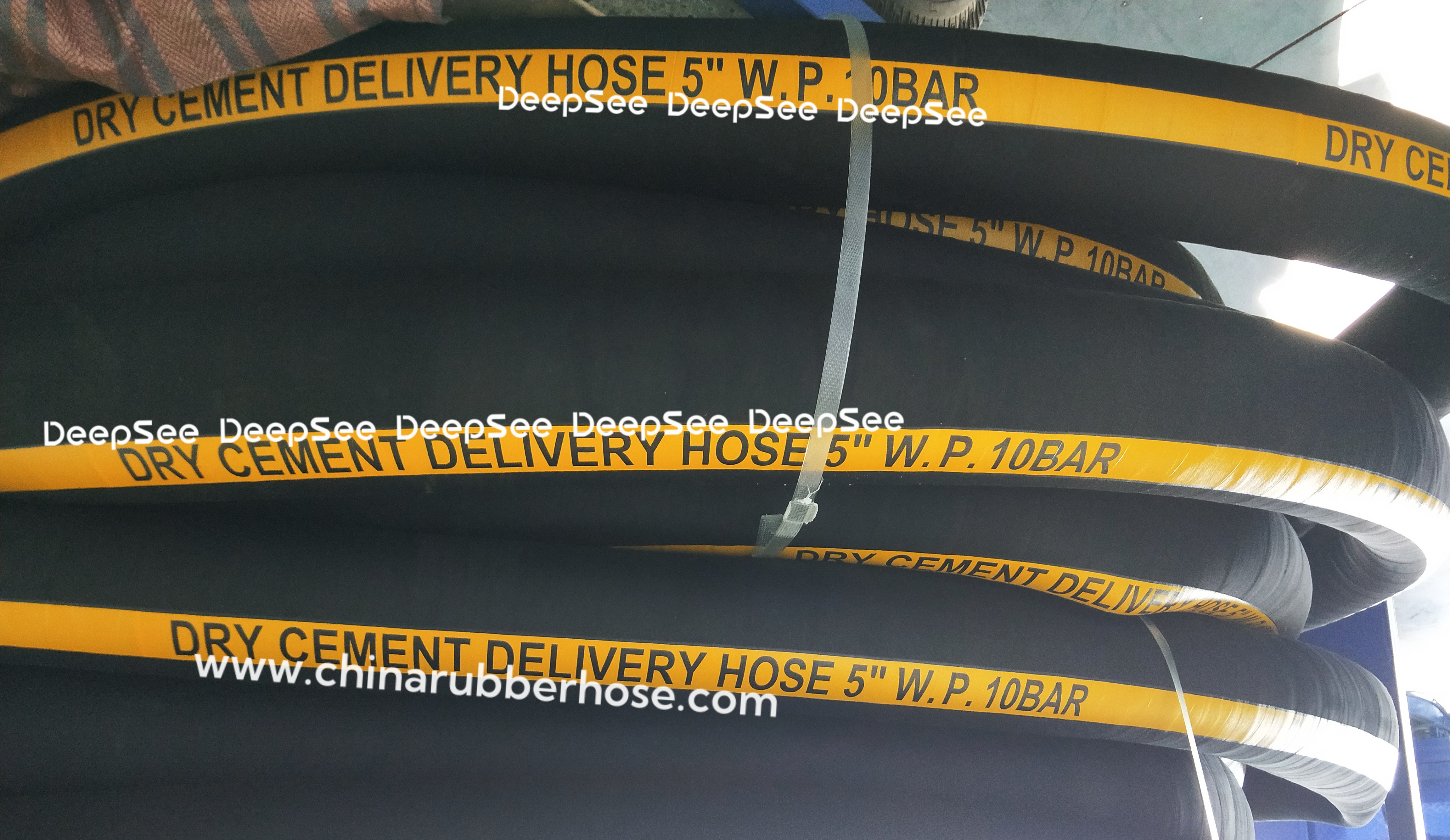

dry cement hose - deepsee material handling hose

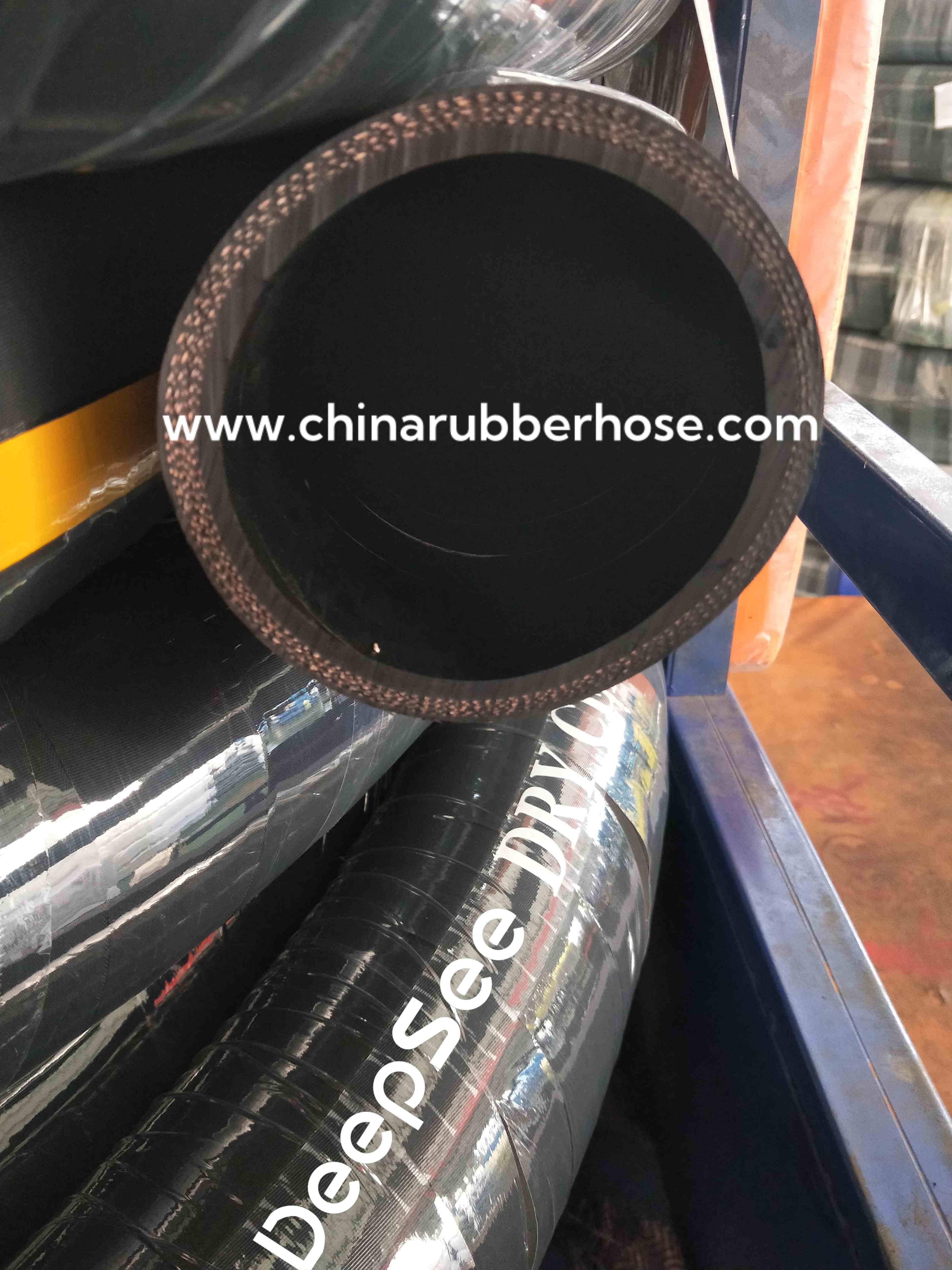

concrete hose - deepsee bulk material delivery hose

Metric and Imperial Data of DeepSee Material Handling Hose

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
25	1	36.4	10	150	30	450	0.74	61	3
32	1.25	43.8	10	150	30	450	0.97	61	3
38	1.5	51.8	10	150	30	450	1.31	61	4
51	2	64.8	10	150	30	450	1.69	61	4
64	2.5	79.8	10	150	30	450	2.42	61	4
76	3	93.8	10	150	30	450	3.17	61	5
89	3.5	107.6	10	150	30	450	3.94	61	5
102	4	120.6	10	150	30	450	4.46	61	5
127	5	146.4	10	150	30	450	5.54	61	5
152	6	173.4	10	150	30	450	7.18	61	6
203	8	228.6	10	150	30	450	11.66	61	6
254	10	279.6	10	150	30	450	14.40	61	6
304	12	331.2	10	150	30	450	18.27	61	6

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
25	1	36.8	20	300	60	900	0.79	61	3
32	1.25	45.8	20	300	60	900	1.17	61	3
38	1.5	53.8	20	300	60	900	1.55	61	4
51	2	66.8	20	300	60	900	1.99	61	4
64	2.5	80.6	20	300	60	900	2.64	61	4
76	3	97.4	20	300	60	900	4.12	61	5
89	3.5	110.4	20	300	60	900	4.74	61	5
102	4	123.4	20	300	60	900	5.35	61	5
127	5	149.6	20	300	60	900	6.55	61	5
152	6	176.6	20	300	60	900	8.50	61	6

Please contact us to customize material handling hose with other specifications.
