Name: Material Suction and Discharge Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Description

Butadiene Rubber = BR
Styrene Butadiene Rubber = SBR
Natural Rubber = NR
---------------------------------------------
Inner layer: NR+BR
Outer layer: NR+SBR

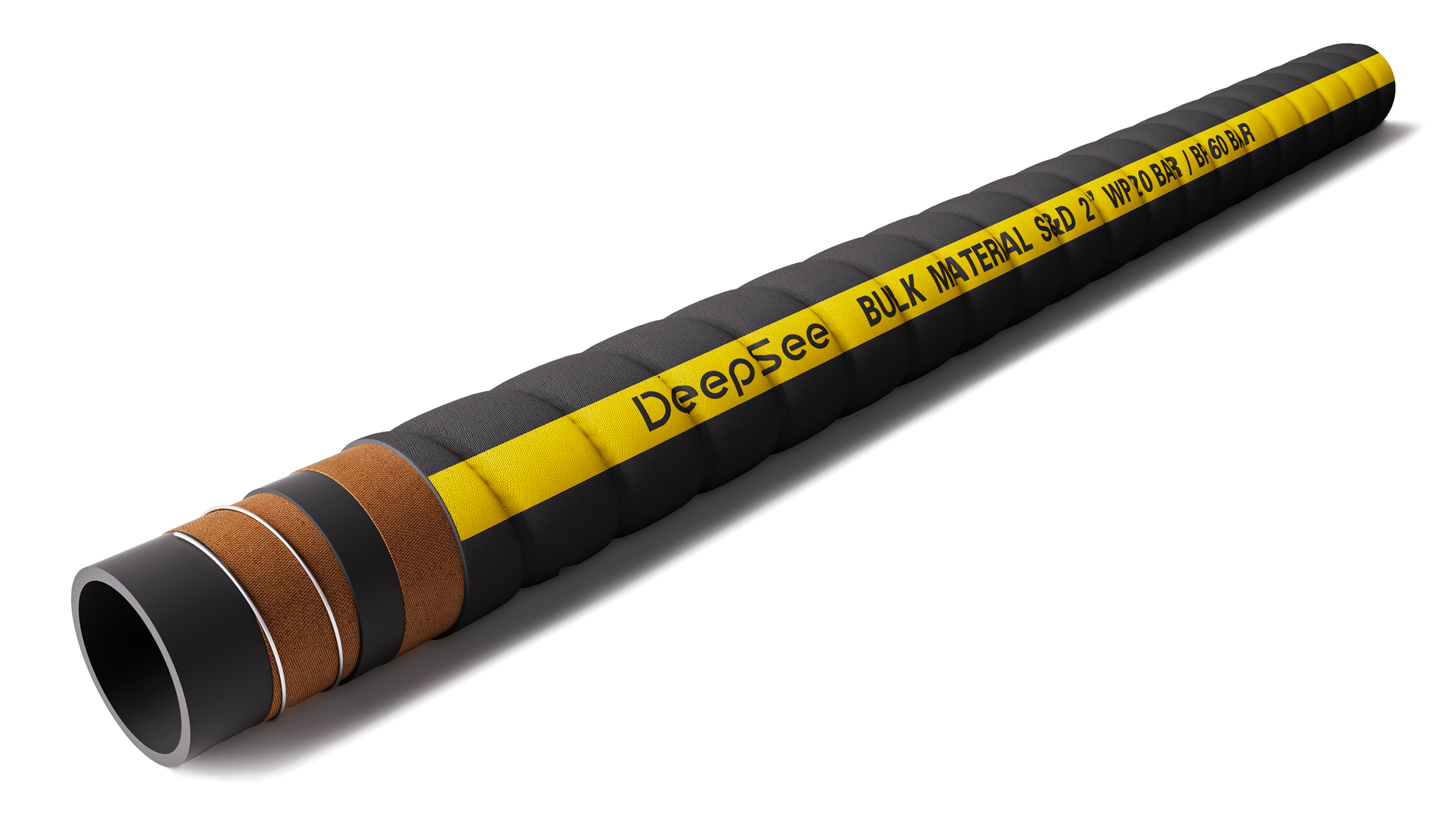

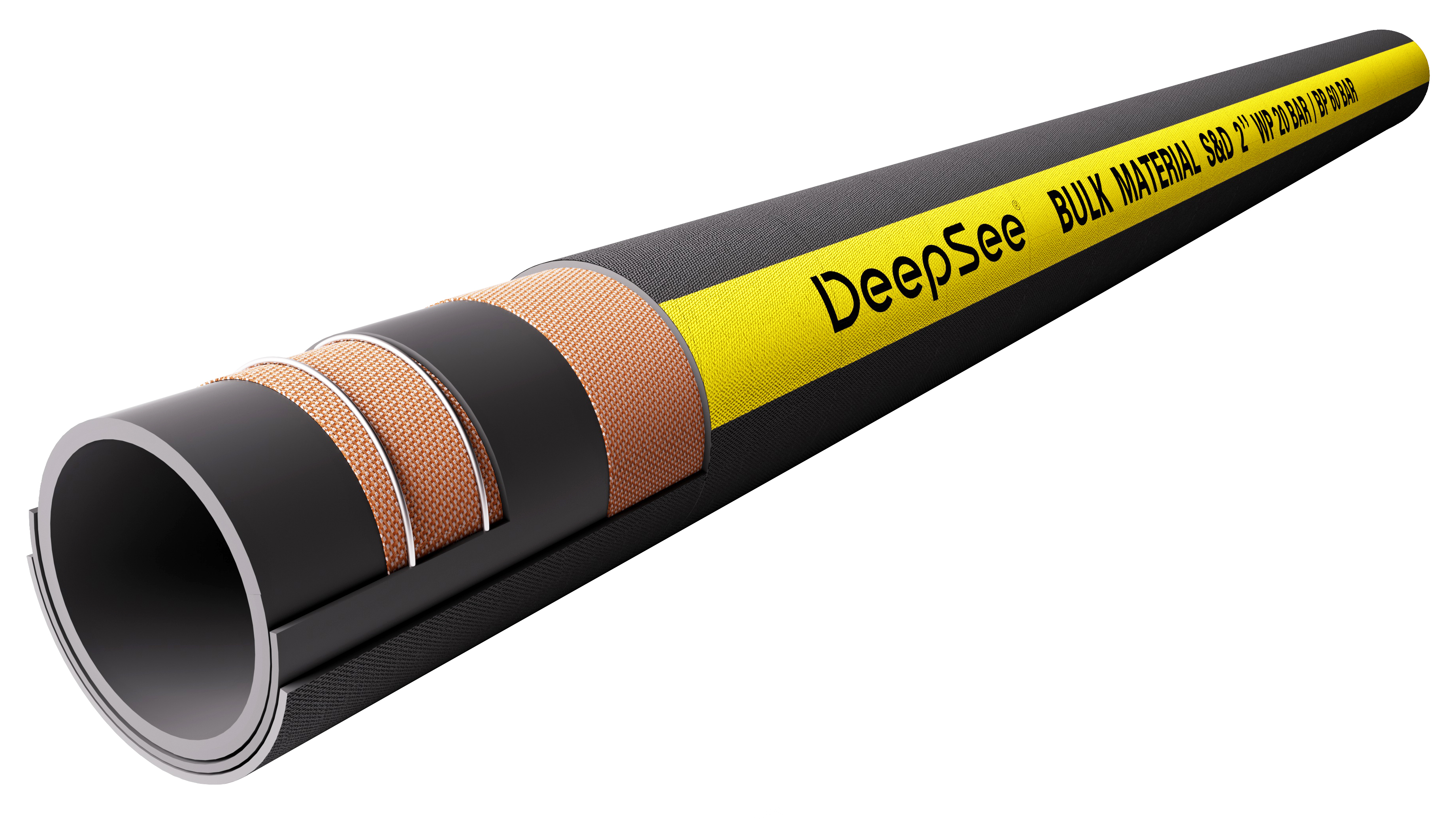

Reinforcement: 1) High-strength textile cords 2) High-tensile steel wire 3) Conductive copper wire
Akron abrasion coefficient ≤ 0.06mm³

Our material handling hose can deliver sand, gravel, cement, and other granular substances used in construction or mining. The hose wall of our material suction and discharge hose is smooth enough for material with large particles to go through the tube. It is difficult to come across blockage when delivering large-grained bulk materials. This material handling hose has an Akron abrasion coefficient that meets EU standard, therefore it has excellent abrasion resistance. Besides, it is of good pressure-bearing, anti-static, and UV-proof property. DeepSee material suction hose is a reliable choice in the current market due to high durability and outstanding quality. It can keep you from replacing or repairing material hoses every now and then.

Metric and Imperial Data of DeepSee Material Suction & Discharge Hose (Large Diameter)

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
152	6	178.6	10	150	30	450	10.82	60	6
203	8	233.4	10	150	30	450	16.60	60	6
254	10	288.6	10	150	30	450	24.92	13	6
304	12	341.2	10	150	30	450	32.88	13	6

Metric and Imperial Data of DeepSee Material Suction & Discharge Hose (Small Diameter)

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
25	1	36.4	10	150	30	450	0.98	61	3
32	1.25	43.8					1.20	61	3
38	1.5	51.8					1.69	61	4
51	2	64.8					2.17	61	4
64	2.5	79.8					2.77	61	4
76	3	93.8					3.71	61	5
89	3.5	107.6					5.15	61	5
102	4	120.6					5.81	61	5
127	5	146.4					7.64	61	5
152	6	173.4					9.88	61	6

mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
25	1	36.8	20	300	60	900	0.98	61	3
32	1.25	45.8					1.46	61	3
38	1.5	53.8					2.00	61	4
51	2	66.8					2.56	61	4
64	2.5	80.6					3.25	61	4
76	3	97.4					4.37	61	5
89	3.5	110.4					5.41	61	5
102	4	123.4					6.10	61	5
127	5	149.6					8.83	61	5
152	6	176.6					11.32	12	6

Metric and Imperial Data of DeepSee Slurry Hose (10bar～40bar)

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
51	2	77.4	10	150	30	450	3.73	61	8
76	3	104.2					5.88	61	8
102	4	133.6					8.64	61	8
127	5	160.6					11.46	61	8
152	6	186.4					13.90	61	8
51	2	80.2	20	300	60	900	4.28	61	8
76	3	107.4					6.65	61	8
102	4	136.4					9.59	61	8
127	5	164.6					12.77	61	8
152	6	189.6					15.29	61	8
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
76	3	106.2	30	450	90	1350	6.69	61	5
89	3.5	120.4					7.77	61	5
152	6	191.8					16.20	61	6
152	6	192.8	40	600	120	1800	16.58	61	6
203	8	251.4					26.89	61	6
254	10	304.4					36.67	61	6

For other specifications, please contact us to customize.
