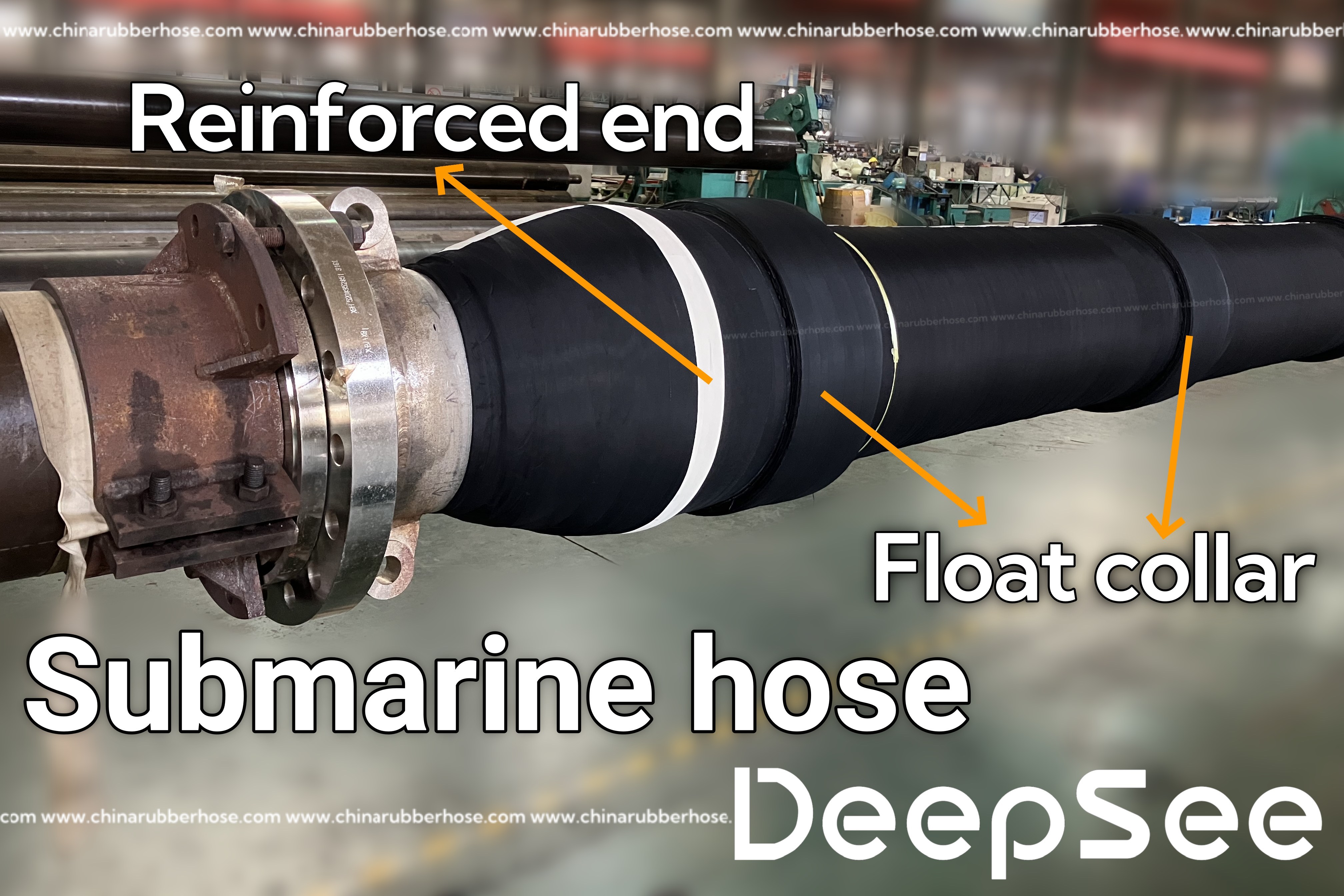

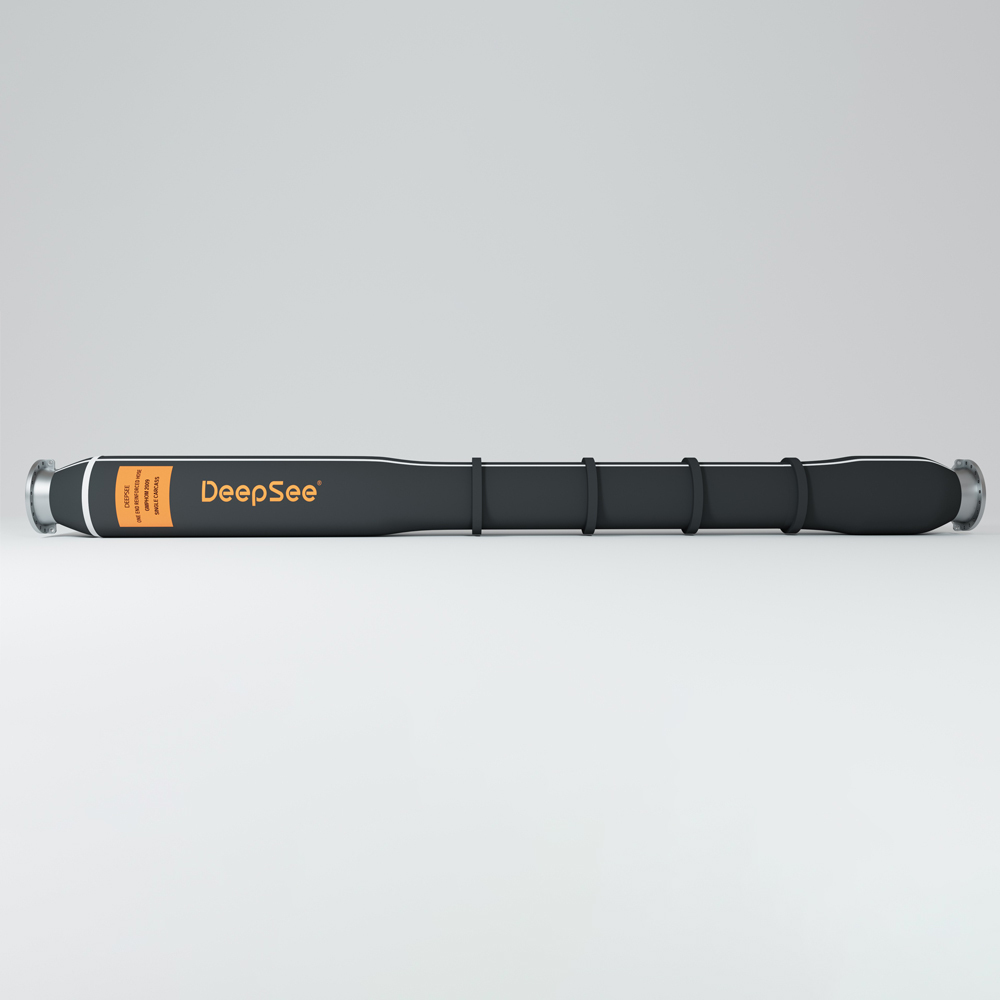

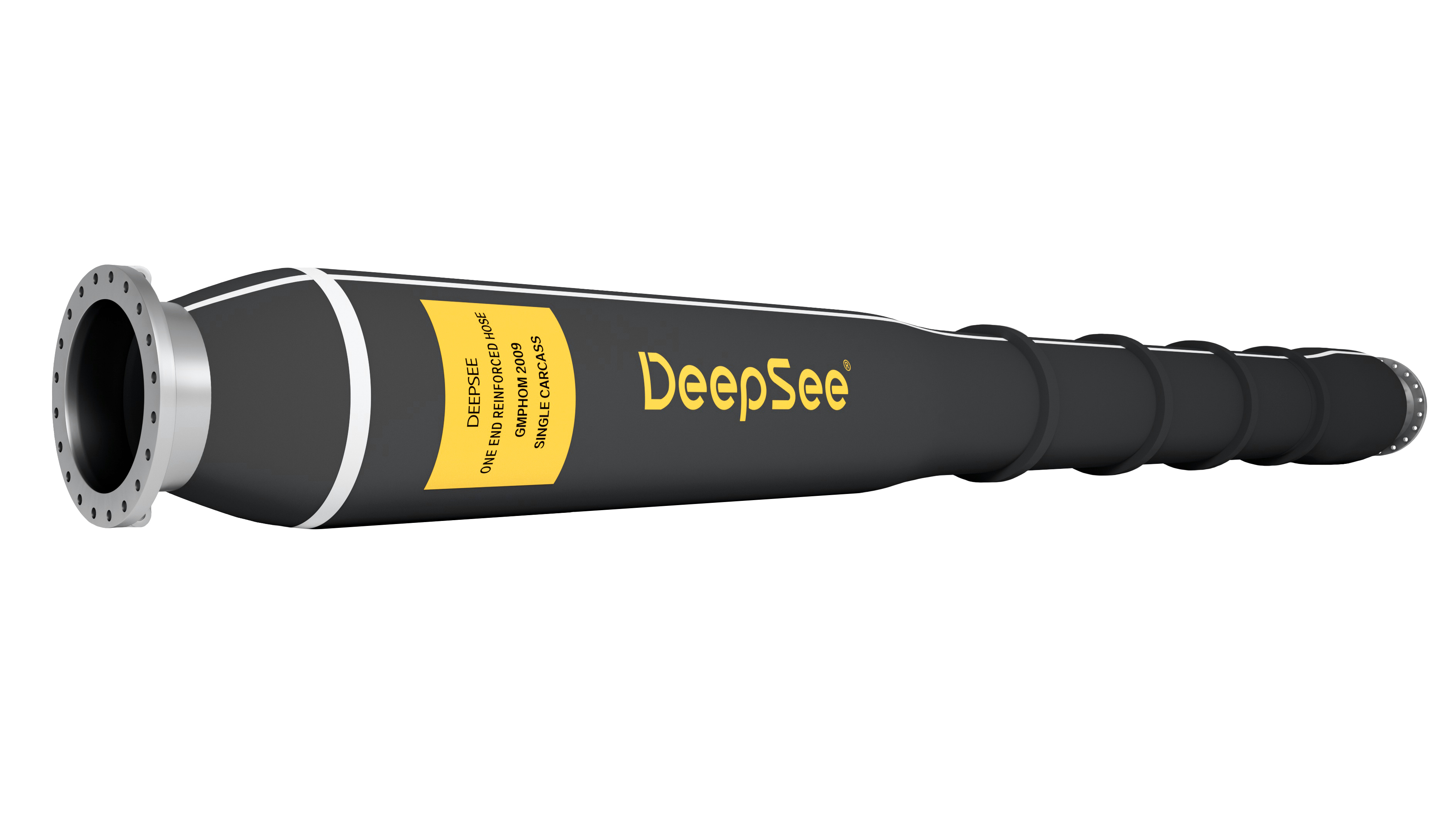

The reinforced end of this submarine hose has a white band. This side is connected with either buoy manifold or subsea PLEM. The other side connects mainline submarine hose. Floating collars are put on the unreinforced part of the submarine hose body.
Submarine hose pattern: -Lazy S -Steep S -Chinese Lantern
→Inner layer: NBR (Nitrile-Butadiene Rubber) Feature: Resistant to fuel and oil; Smooth; Seamless →Reinforcement: Multiple layers of high-strength textile cord + Embedded spiral steel wire →Outer layer: Synthetic rubber Feature: Smooth; Resistant to abrasion, oil, sea water, and sunlight/UV ray →Minimum burst pressure: 5 × Rated Working Pressure
→Fittings: ASME B 16.5 (Class 150, 300, 400, 600, 900, 1500, and 2500) or other standards flanges according to customer's request will be welded on the raised face, flat face, or other required face of the hose neck. Flange material options include carbon steel and stainless steel. There are several welding and sealing methods for you to choose. →Flange standard: ANSI, GB, JIS, or DIN.
