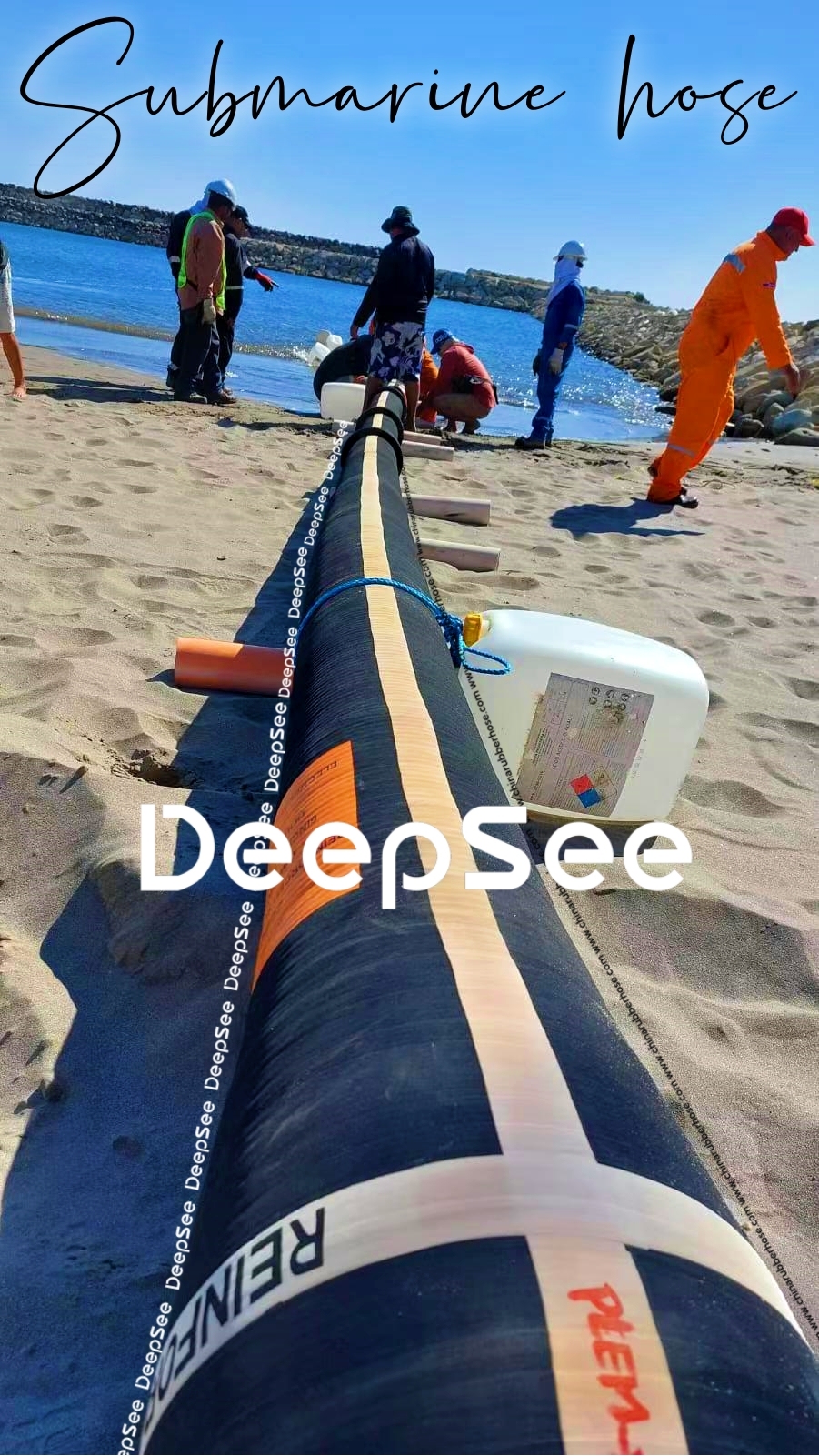

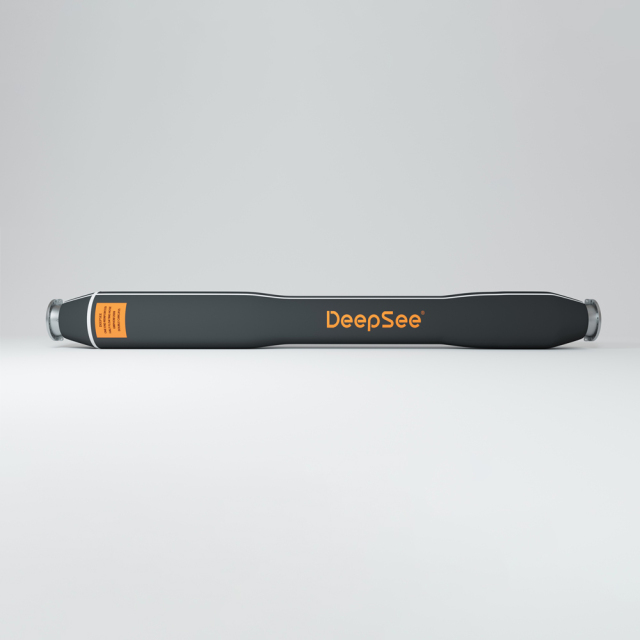

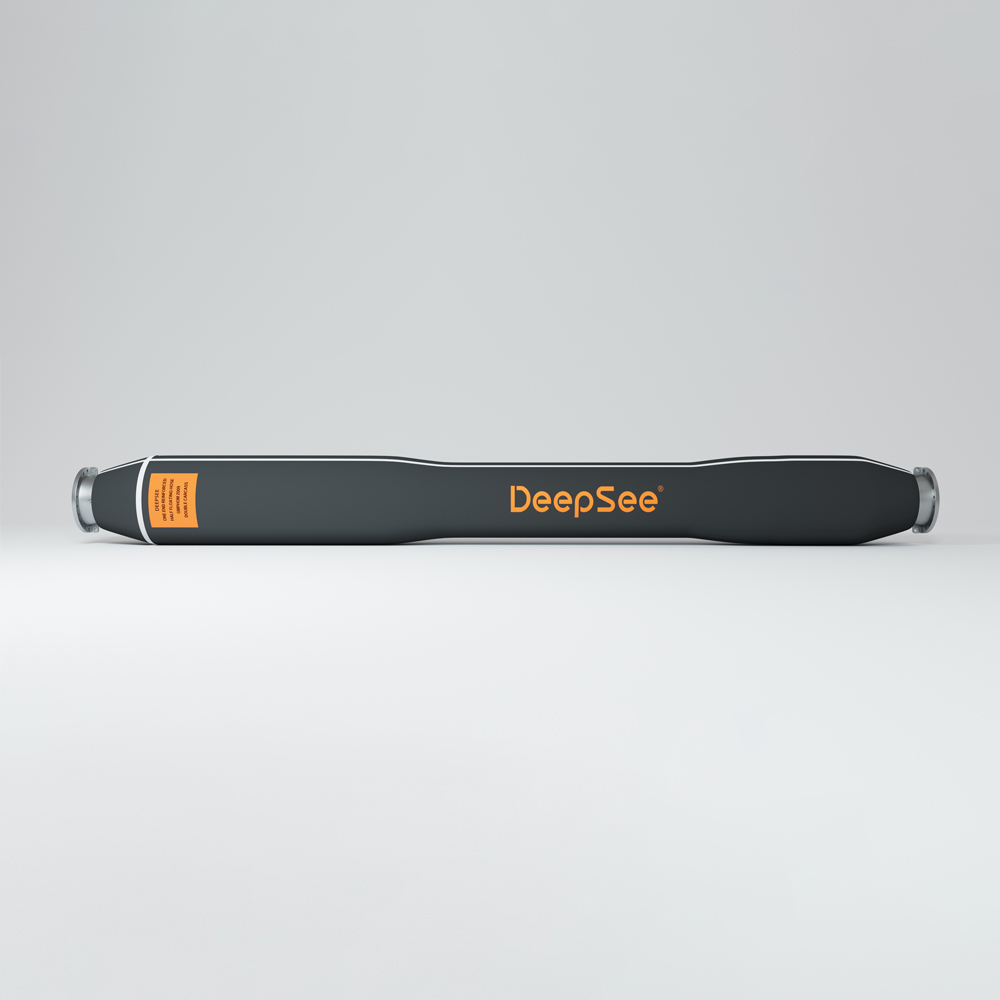

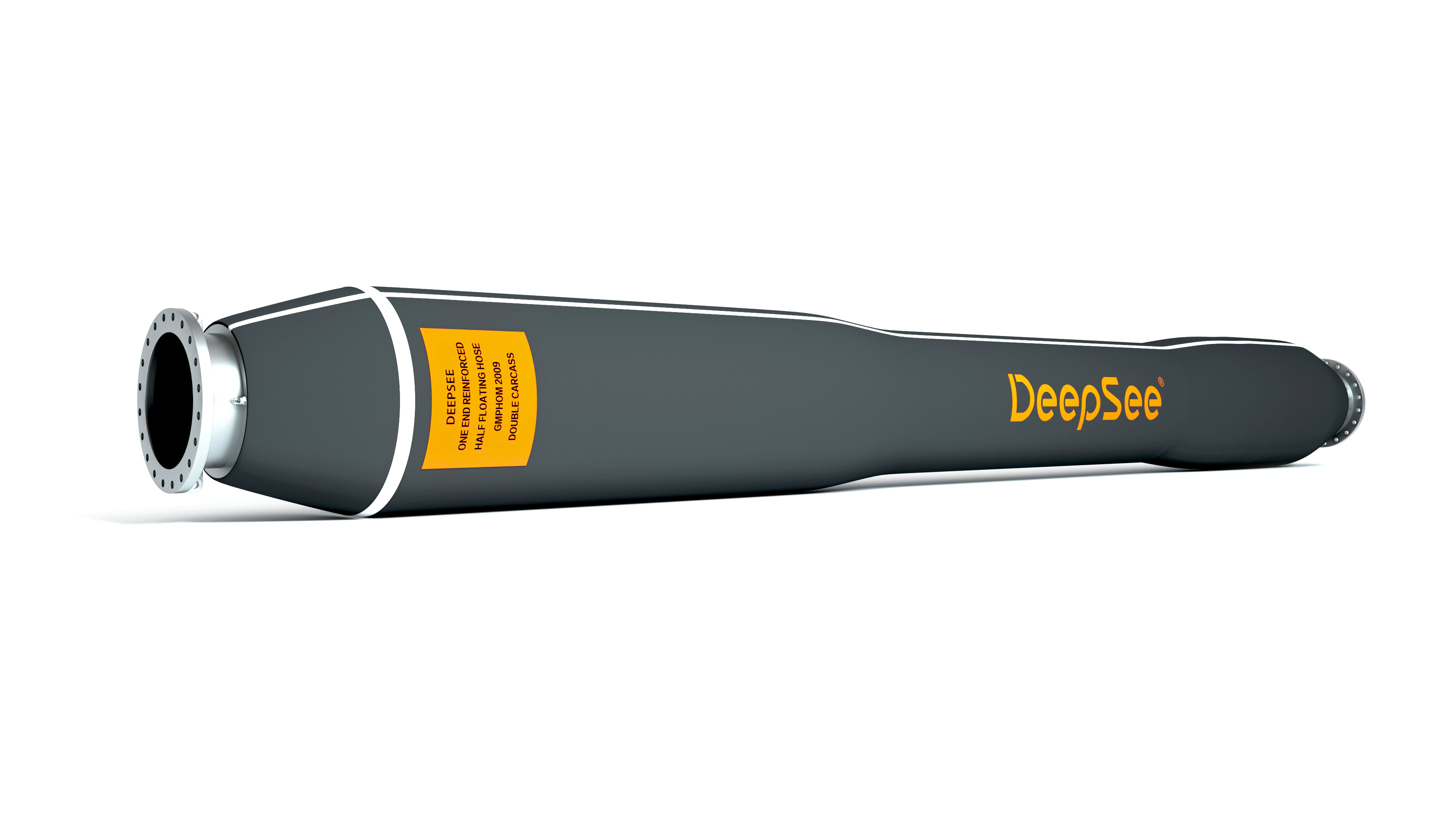

One side of one end reinforced submarine hose connects the mainline submarine hose, the other side connects subsea PLEM or buoy manifold. The reinforced end should always be connected with the hard pipelines. It is marked with a white band. We can design and produce this kind of submarine hose according to your requirements. Remarkable quality, competitive price, and punctual delivery time are the least we can offer.
→Inner layer: NBR (Nitrile-Butadiene Rubber) Feature: Resistant to fuel and oil; Smooth; Seamless →Reinforcement: Multiple layers of high-strength textile cord + Embedded spiral steel wire →Outer layer: Synthetic rubber Feature: Smooth; Resistant to abrasion, oil, sea water, and sunlight/UV ray →Minimum burst pressure Primary carcass: 5 × Rated Working Pressure Secondary carcass: 2 × Rated Working Pressure
Submarine hose pattern: -Lazy S -Steep S -Chinese Lantern
→Fittings: ASME B 16.5 (Class 150, 300, 400, 600, 900, 1500, and 2500) or other standardsflanges according to customer's request will be welded on the raised face, flat face, or other required face of the hose neck. Flange material options include carbon steel and stainless steel. There are several welding and sealing methods for you to choose. →Flange standard: ANSI, GB, JIS, or DIN.
