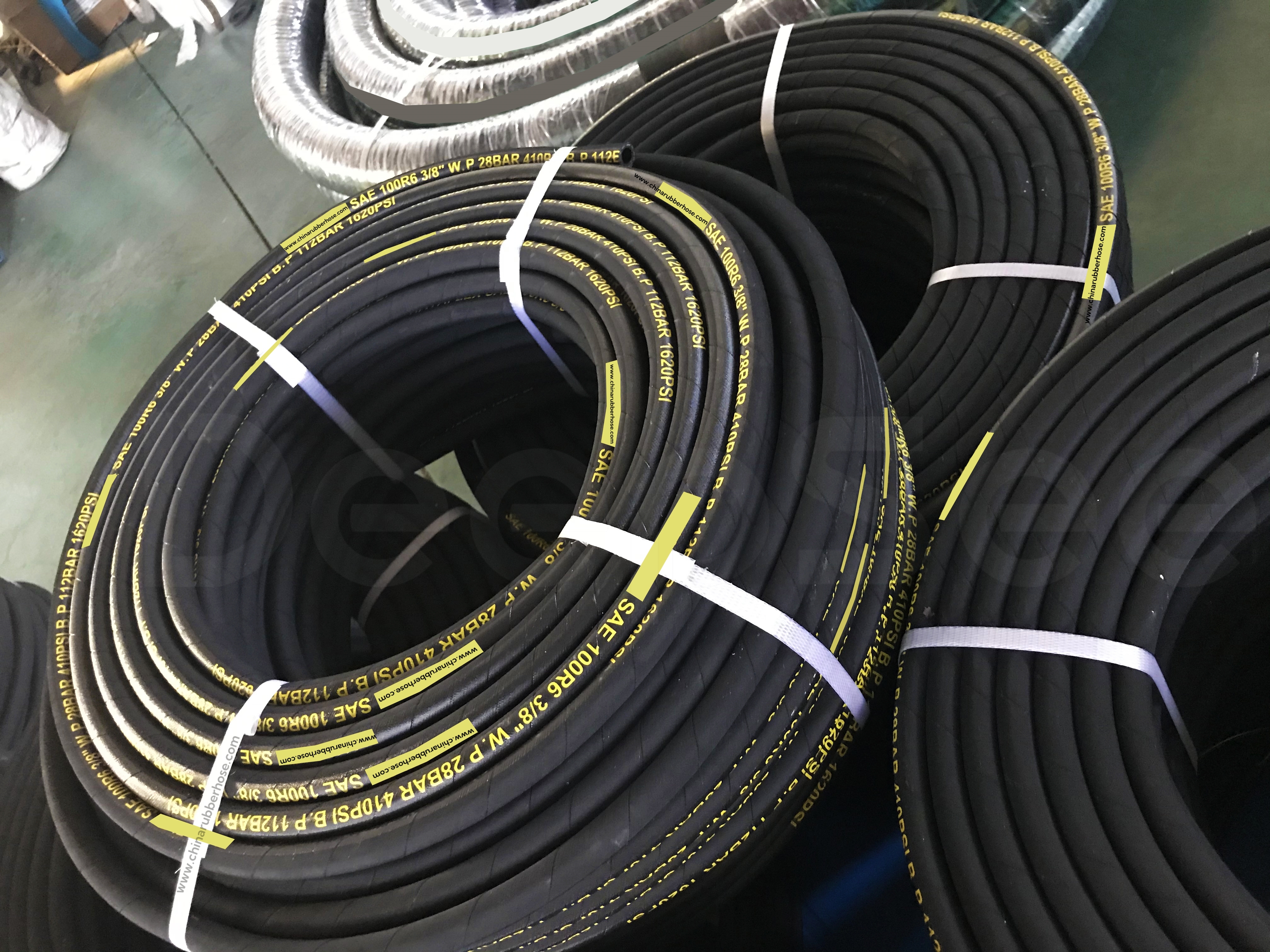

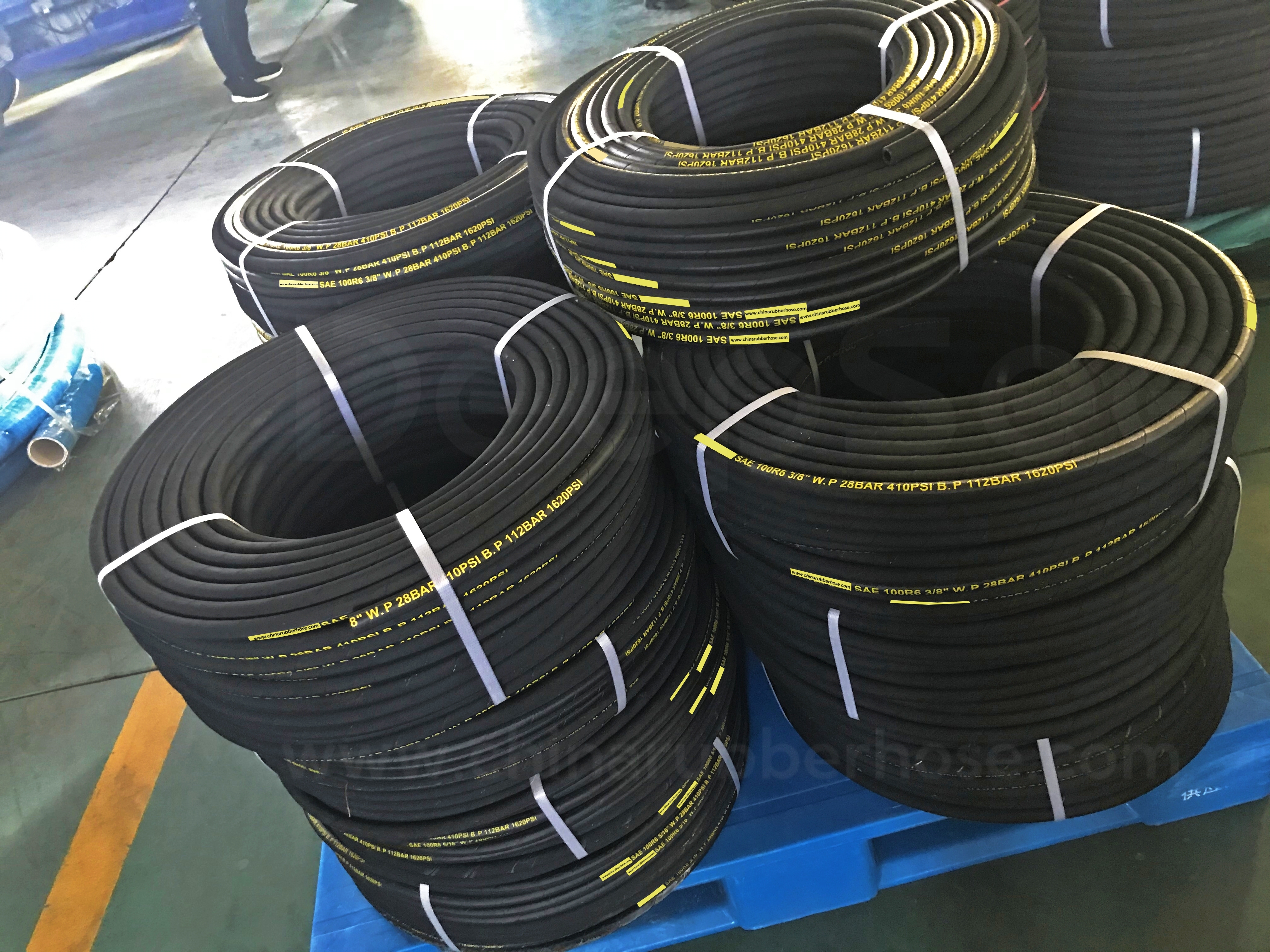

SAE 100R6 Hydraulic Hose

Name: SAE 100R6 Hydraulic Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Temperature range

-20℃～80℃

Max. working pressure

Around 28bar (410psi)

Common size

¼"～ 1" (Customization available)

Production standard

SAE J517-100R6

Applications

Low-pressure hydraulic lines, return & drain oil line, pneumatic line, etc.

Medium

Petroleum or water-based hydraulic fluids, mineral oil, general lubricants, fuel, etc.

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Get The Latest Quote

Description

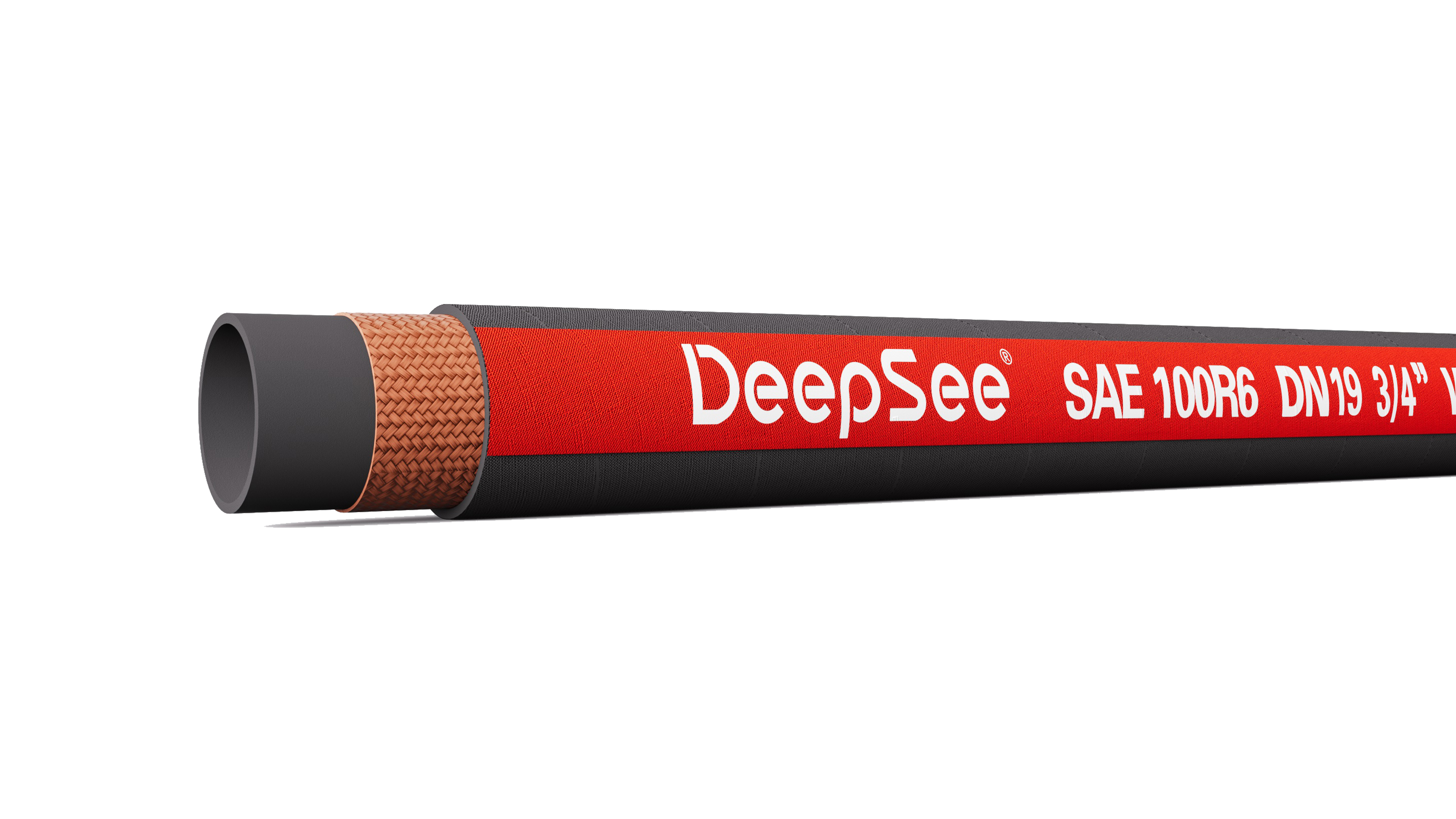

Inner tube: Synthetic rubber - NBR + SBR
Reinforcement: One layer high-strength textile braid
Outer layer: Synthetic rubber - SBR + CR
Feature: Flexible, lightweight, long service life, easy installation
Applicable areas: transportaion, automotive, utility equipment, construction, machine tool

The innermost layer of rubber, nitrile rubber and butadiene styrene rubber, is highly resistant to hydraulic oils, abrasion, and corrosion. SAE 100R6 hose is reinforced with single braided textile. Its cover is born with good resistance to sunlight, weathering, aging, wear, ozone, and oil. Such properties make it suitable for delivering a wide range of substances, such as petroleum/water-based hydraulic fluids, mineral oil, grease, general lubricants, glycol/polyglycol-based oil, synthetic ester oil, water, air and fuel.

Metric and Imperial Data of DeepSee SAE 100R6 Hydraulic Hose

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
6	¼	14	28	410	84	1230	0.17	Random length	2
8	⁵⁄₁₆	16.2	28	410	84	1230	0.21		2
10	⅜	18.2	28	410	84	1230	0.25		2
13	½	25	28	410	84	1230	0.48	100	2.5
16	⅝	28	24	350	72	1050	0.56	100	2.5
19	¾	31	21	305	63	915	0.63	100	2.5
25	1	37.4	21	305	63	915	0.79	100	2.5
