Name: Sandblast Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Sandblast Hose

Sandblasting hose / sandblaster hose

Working temperature

-20℃~80℃

Safety factor

3:1

Media

Aluminum Oxide Grit, Steel Grit, Glass Beads, Steel Shot, Walnut Shell Grit, Silica Sand, etc.

Product standard

ISO 3861

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Description

Sandblasting hose is used to remove rust, contaminants, paint, corrosion residue, or coatings by blasting abrasive mediums on a surface. It is widely used in sandblasting machinery and equipment abrasive conveying systems and has a great cleaning effect. Hoses for sandblast are installed on sandblasters, therefore sandblast hoses are also called sandblaster hose.

Sandblasting media: Soda, Coal Slag, Aluminum Silicate, Aluminum Oxide Grit (Brown Corundum), Crushed Glass Grit, Steel Grit, Staurolite, Glass Beads, Steel Shot, Corn Cob Grit, Walnut Shell Grit, Copper Slag, Iron Silicate, Garnet, Silica Sand, Silicon Dioxide

Inner layer: Natural rubber (NR) + Butadiene rubber (BR)
Outer layer: Natural rubber (NR) + Butadiene styrene rubber (SBR)
Reinforcement: High-strength textile cord

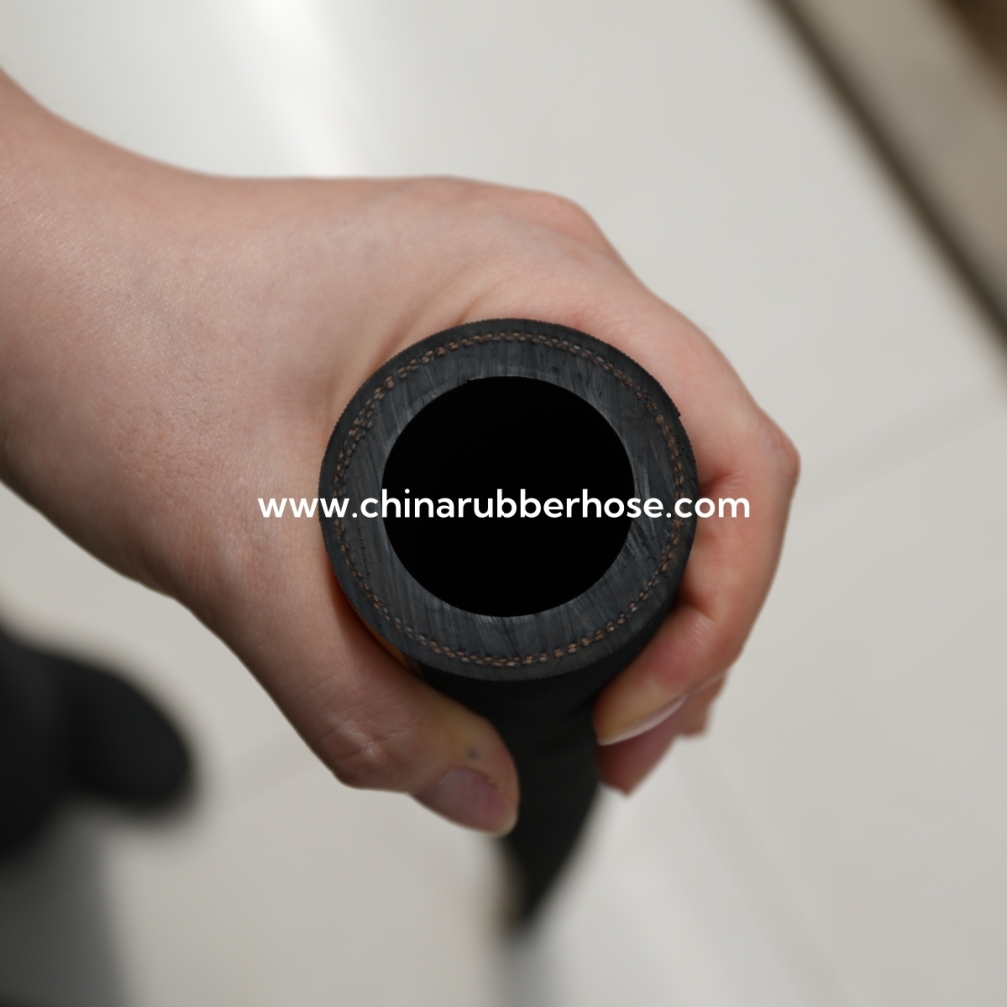

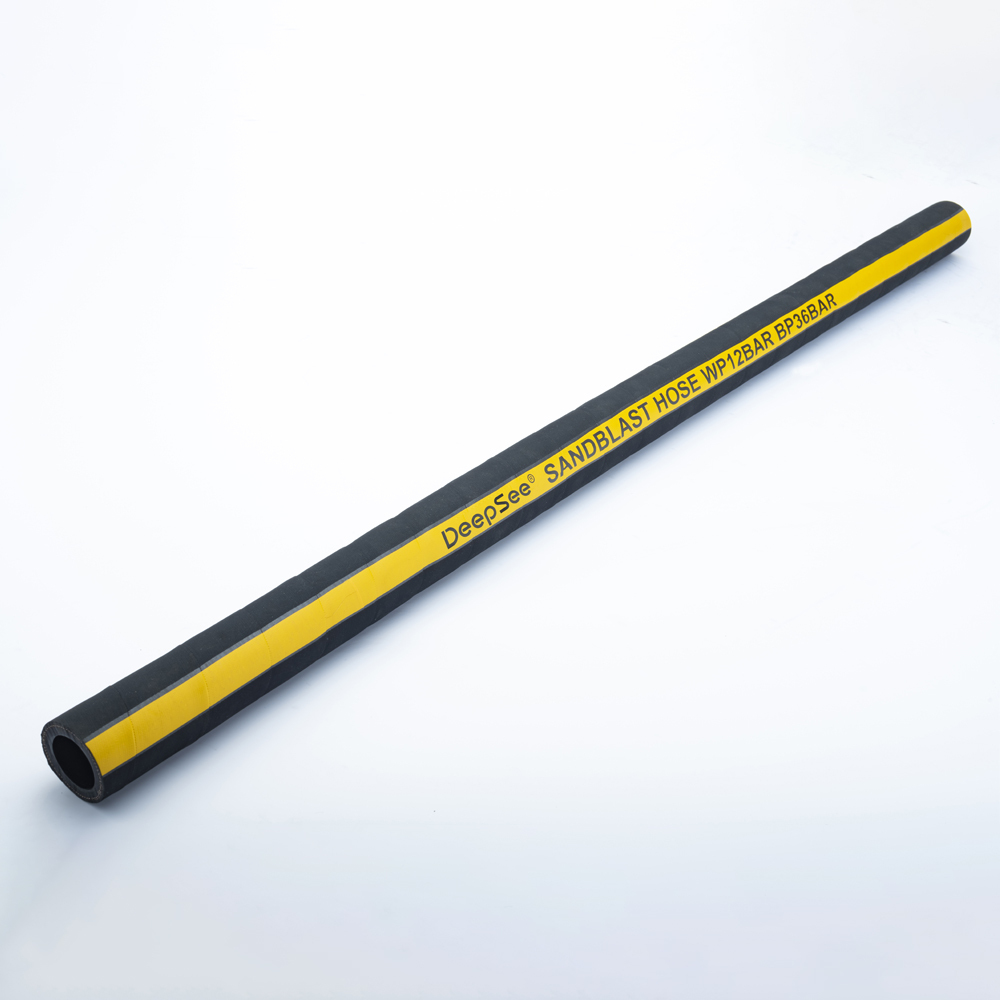

sandblasting hose - deepsee rubber hose

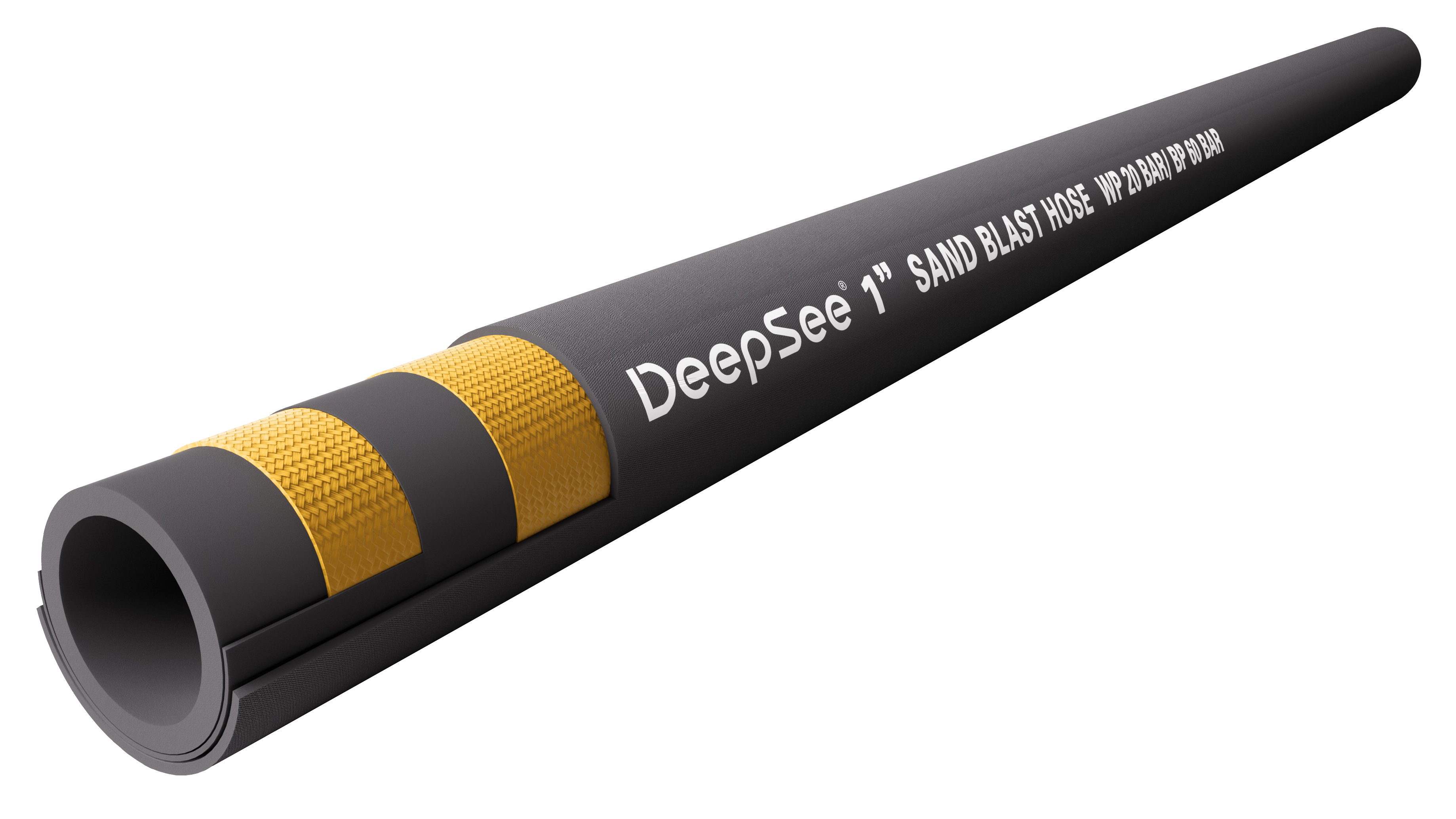

braided and twined sandblast hose - deepsee rubber hose

Sandblast hose size chart:
DeepSee® Sandblast Hose Specification
(Braided Hose, Braiding Structure)


mm	inch	mm	bar	psi	bar	psi	kg/m	m
6	¼	18	20	300	60	900	0.28	100
8	⁵⁄₁₆	20	20	300	60	900	0.32	100
10	⅜	22	20	300	60	900	0.38	100
13	½	25	20	300	60	900	0.45	100
16	⅝	28	20	300	60	900	0.51	100

DeepSee® Sandblast Hose Specification
(Mandrel Hose, Spiral Winding Structure)

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	32.4	12	174	36	522	0.69	61	4
25	1	38.4	12	174	36	522	0.86	61	4
32	1¼	48	12	174	36	522	1.24	61	5
38	1½	55	12	174	36	522	1.56	61	5
51	2	69.8	12	174	36	522	2.33	61	5
64	2½	83.6	12	174	36	522	2.82	61	5
76	3	97.6	12	174	36	522	3.66	61	6
102	4	126.4	12	174	36	522	5.45	61	6

									Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	40.4	12	174	36	522	1.27	61	8
25	1	38.4	12	174	36	522	1.52	61	8
32	1¼	48	12	174	36	522	1.82	61	8
38	1½	55	12	174	36	522	2.41	61	8
51	2	69.8	12	174	36	522	3.04	61	8

For other specifications or special requirements, please contact our team to customize.
