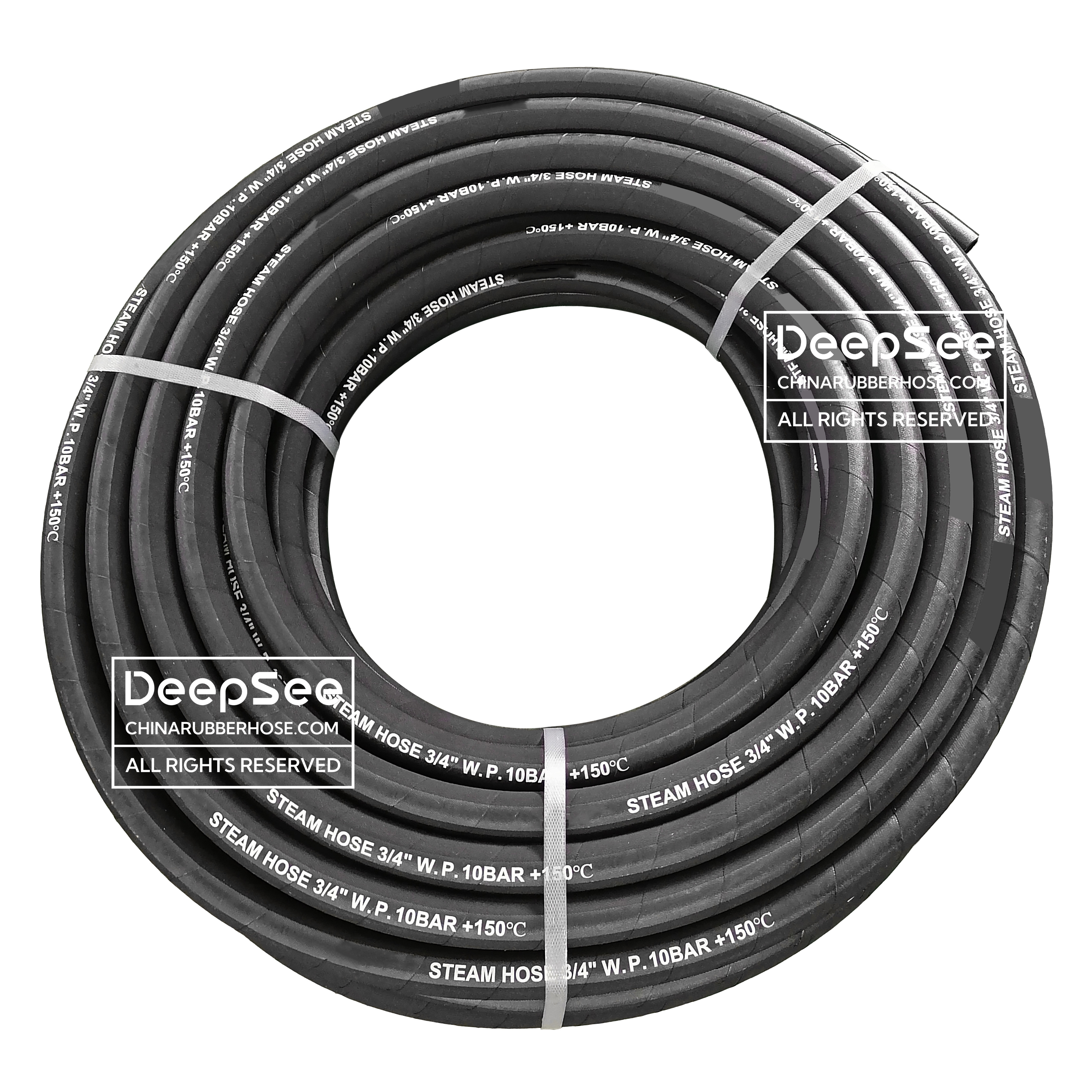

Hot Water/Steam Delivery Hose

Name: Hot Water/Steam Delivery Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

The product has a wide range of applications and can be used in conveyor systems in power plants, processing plants, chemical plants, construction and other industries.

Temperature range

-40℃～150℃

Safety factor

10:1

Min. bending radius

Product standard

ISO 2398

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Hose type

Mandrel hose, braided hose

Manufacturer type

OEM, ODM

Color & label

Customization available

Min. order quantity

1 piece (100m)

Get The Latest Quote

Description

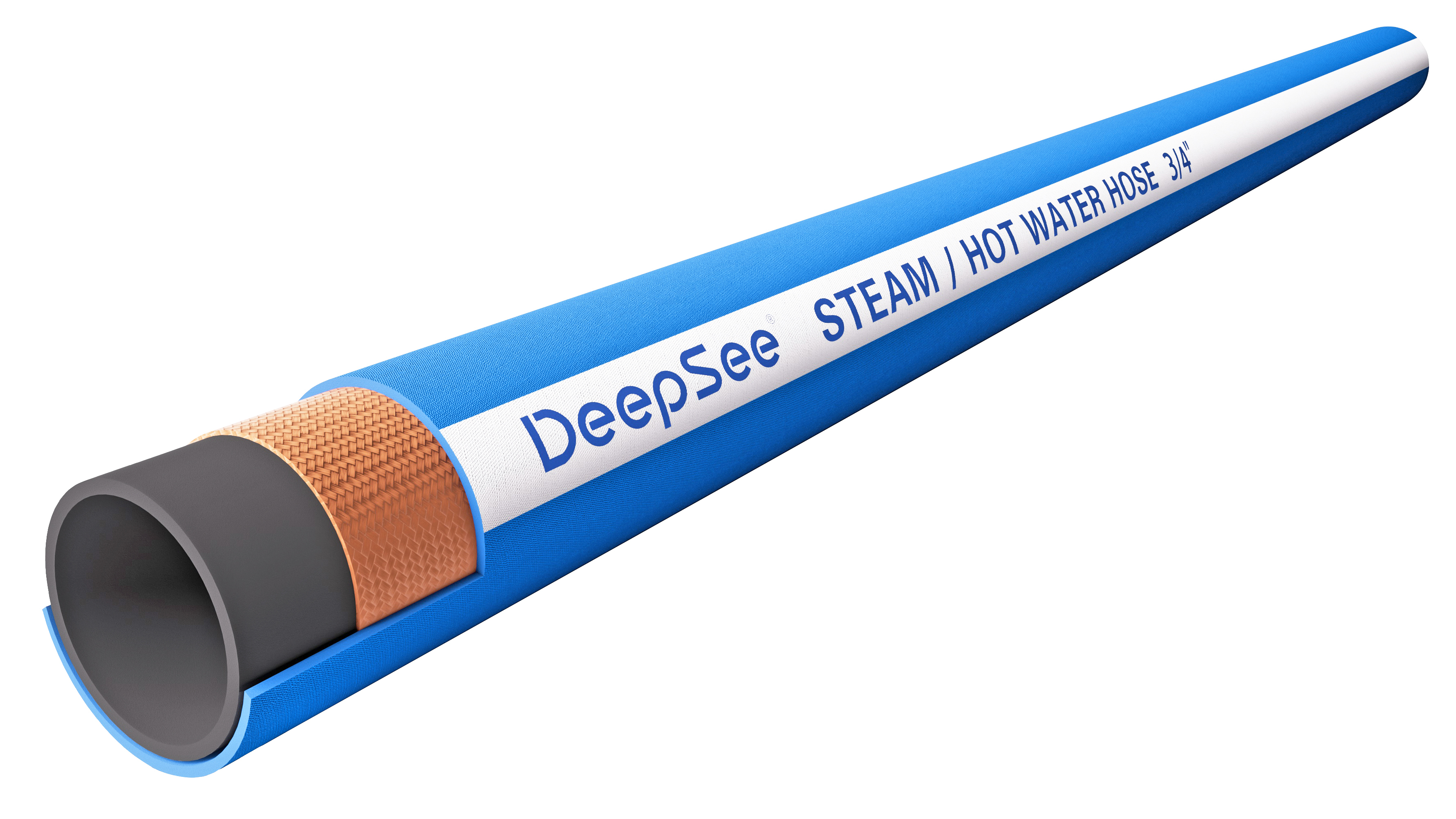

Hose type: Extruded hose, braided structure
Mandrel hose, winding structure
Construction:
Inner lining: EPDM
Reinforcement: ① Extruded hose: 1 or 2 layers of high-strength textile cord
② Mandrel hose: High-tension spiral textile cord
Cover: EPDM

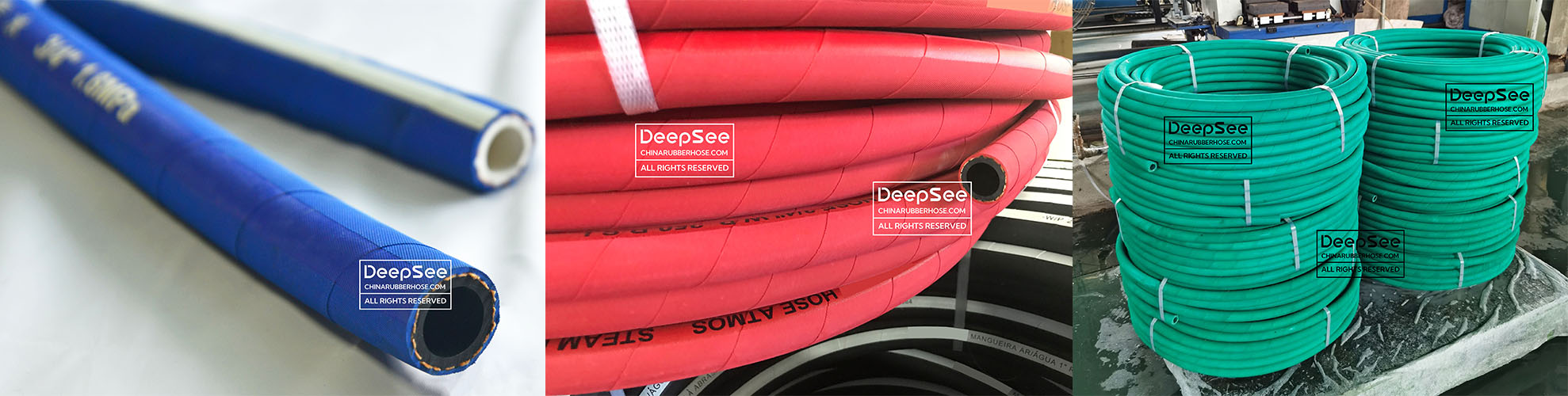

Blue, red, and green steam hot water delivery hoses - DeepSee

DeepSee® Hot Water and Steam Delivery Hose Specifications
(Extruded Hose, Braided Structure)


mm	inch	mm	bar	psi	bar	psi	kg/m	m
6	¼	14	7	100	70	1000	0.15	100
8	⁵⁄₁₆	16					0.18
10	⅜	18					0.21
13	½	22					0.29
16	⅝	26					0.41
19	¾	31					0.49
22	⅞	34					0.55
25	1	37					0.62

DeepSee® Hot Water and Steam Transfer Hose Specifications
(Mandrel Hose, Spiral Winding Structure)


mm	inch	mm	bar	psi	bar	psi	kg/m	m
19	¾	31.0	7	100	70	1000	0.49	100
25	1	37.0					0.62
32	1¼	45.8					1.09
38	1½	51.8					1.26
51	2	65.6					1.62

For other specifications or special requirements, please contact our team to customize.
