Tank Truck Hose

Name: Tank Truck Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Fuel tanker delivery hose, Fuel hose, Rubber oil hose, Fuel oil hose, Fuel suction hose, Oil delivery hose

Working temperature

-30℃～120℃

Safety factor

3:1

Min. bending radius

Medium

Diesel, gasoline, kerosene, engine oil, vehicle gear oil, etc.

Hose type

Mandrel hose

Product standard

ISO 2929

Management system

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Color & label

Customization

Min. order quantity

1 piece (60m)

Get The Latest Quote

Description

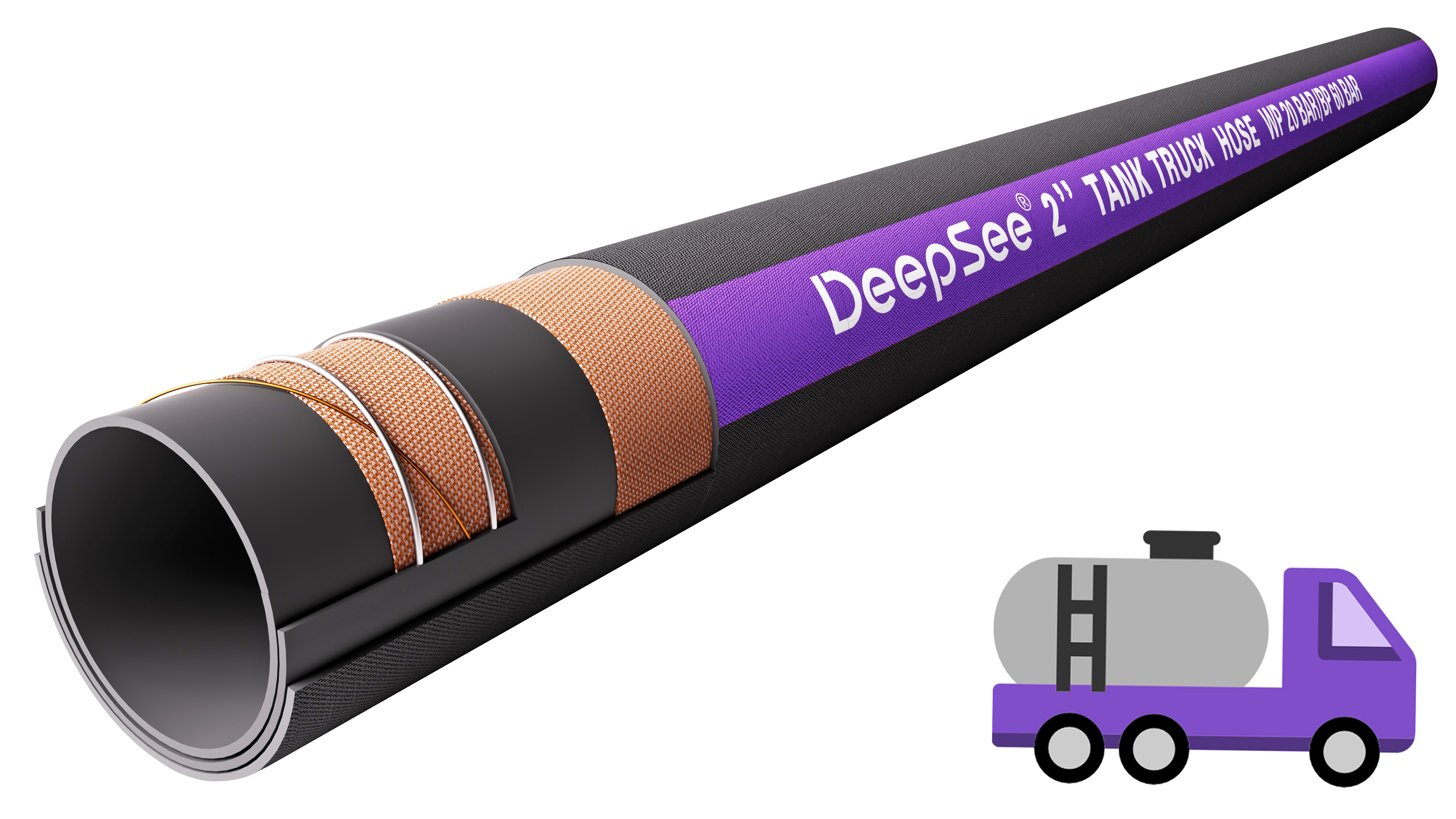

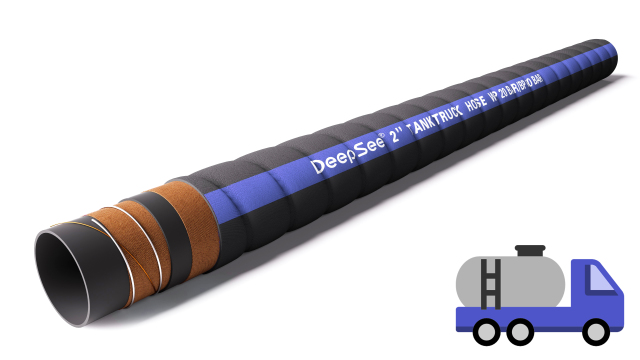

Tank truck hose description
Hose type: Mandrel hose, winding structure
Construction:
Inner layer: NBR
Reinforcement: Strong textile cord + High-strength steel wire helix + Copper wire
Cover: NBR + CR

DeepSee® Tank Truck Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.4	10	150	30	450	0.66	60	3
25	1	36.4					0.82	60	3
32	1¼	43.8					1.06	60	3
38	1½	50.8					1.34	60	3.5
45	1¾	57.8					1.55	60	3.5
51	2	63.8					1.73	60	3.5
64	2½	77.8					2.31	60	3
76	3	89.8					2.70	60	3
89	3½	102.8					3.13	60	3
102	4	116.6					3.88	60	3
127	5	142.4					4.85	60	3
152	6	167.4					5.75	60	3
203	8	222.6					9.81	60	3

I.D		O.D	W.P		B.P		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.4	20	300	60	900	0.66	60	3
25	1	36.8					0.87	60	3
32	1¼	45.8					1.27	60	3
38	1½	51.8					1.47	60	3
45	1¾	58.8					1.70	60	3
51	2	64.8					1.89	60	3
64	2½	78.6					2.54	60	3
76	3	91.4					3.01	60	3
89	3½	106.4					4.22	60	3
102	4	119.4					4.79	60	3
127	5	145.6					5.98	60	3
152	6	170.6					7.07	60	3
203	8	225.8					11.57	60	3

DeepSee® Tank Truck Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	30.8	10	150	30	450	0.76	60	2
25	1	36.8					0.94	60	2
32	1¼	44.8					1.25	60	2
38	1½	51.4					1.55	60	2.5
45	1¾	58.4					1.80	60	2.5
51	2	64.4					2.00	60	2.5
64	2½	78.4					2.71	60	2.5
76	3	90.8					3.19	60	2.5
89	3½	106.2					4.55	60	2.5
102	4	119.2					5.16	60	2.5
127	5	146.2					7.33	60	2.5
152	6	172					8.87	60	2.5
203	8	226.4					13.74	60	2.5
254	10	282.6					22.00	13	3
304	12	335.2					29.42	13	3

I.D

O.D

W.P

B.P

Weight

Max.
Length

Inner
Rubber
Thickness

inch

bar

psi

bar

psi

kg/m

30.8

300

900

0.76

36.8

0.94

1¼

47.2

1.53

2.5

1½

53.8

1.88

2.5

1¾

60.8

2.16

2.5

66.8

2.41

2.5

2½

81.2

3.32

2.5

3.92

2.5

3½

107.8

4.92

2.5

102

120.8

5.57

2.5

127

149.8

8.56

2.5

152

175.6

10.29

2.5

203

231.2

16.38

2.5

For other specifications or special requirements, please contact our team to customize.
