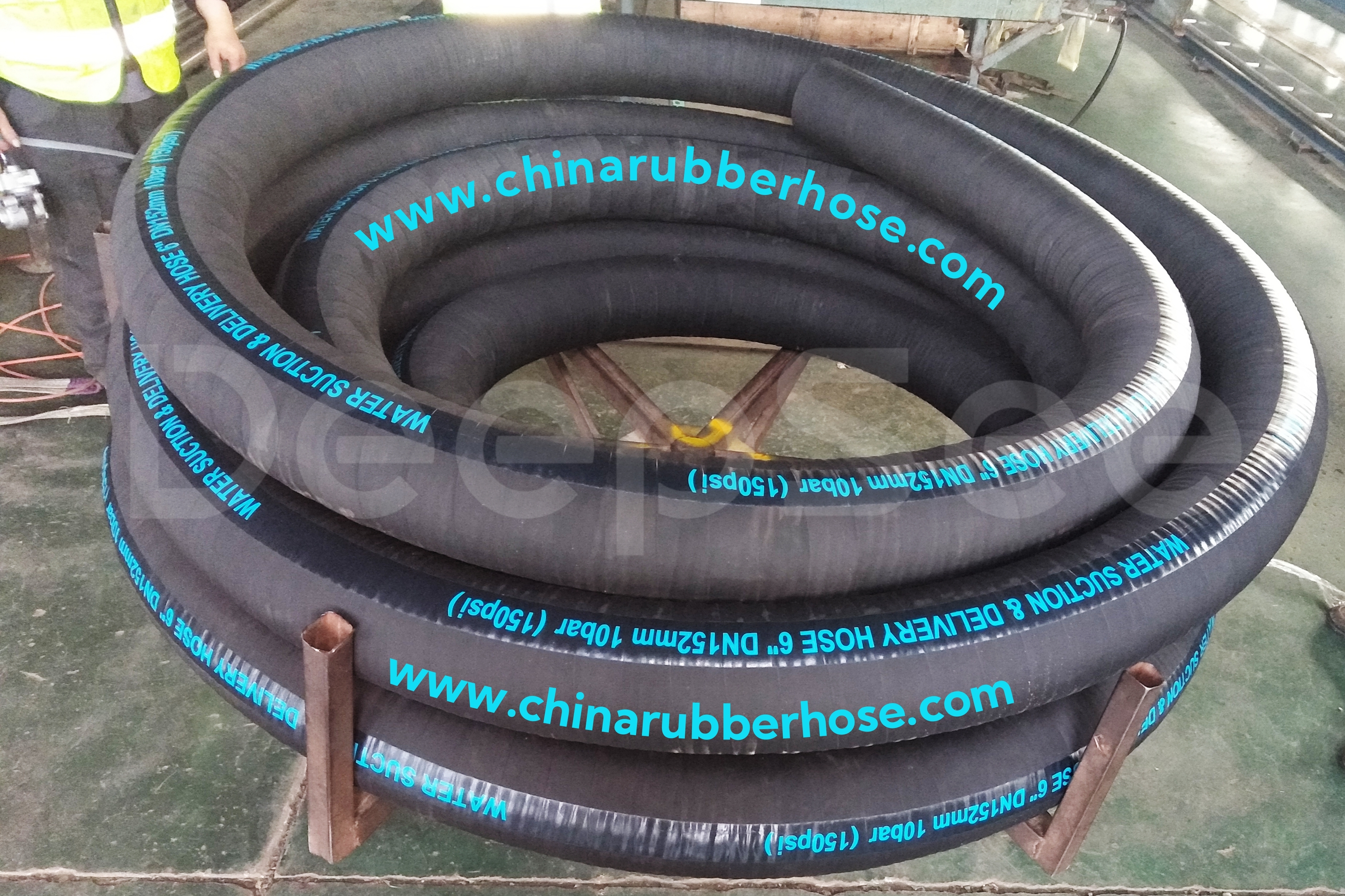

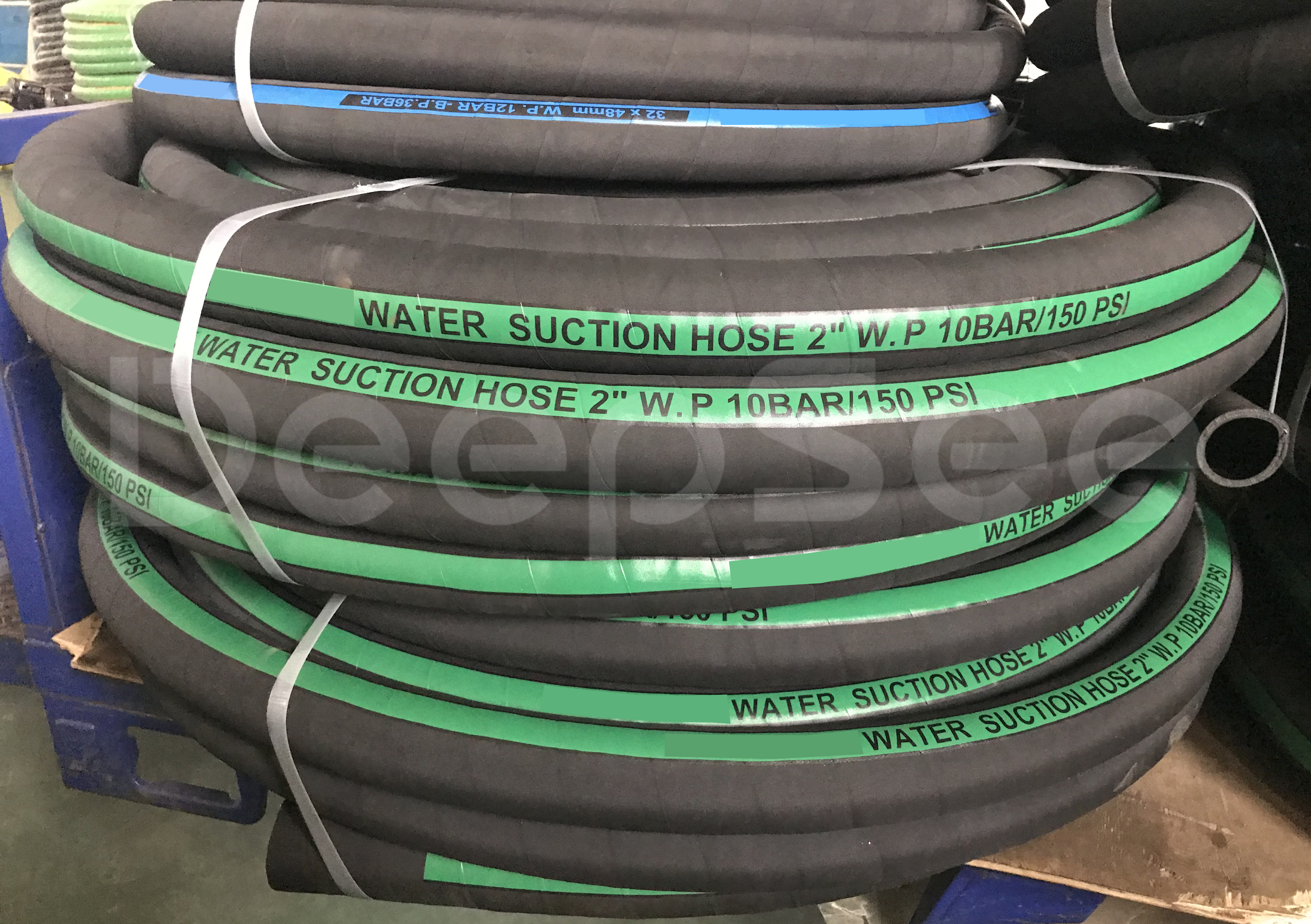

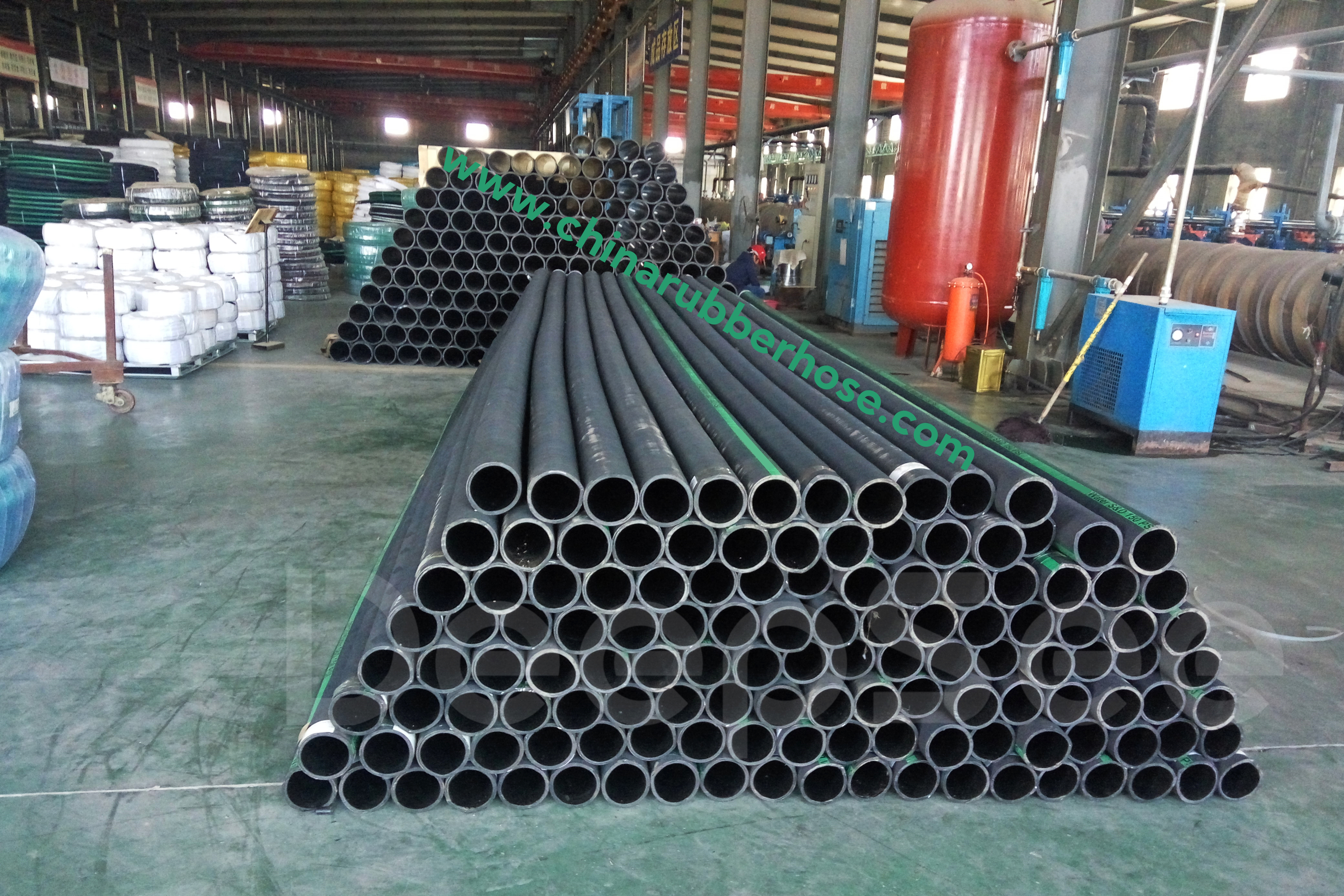

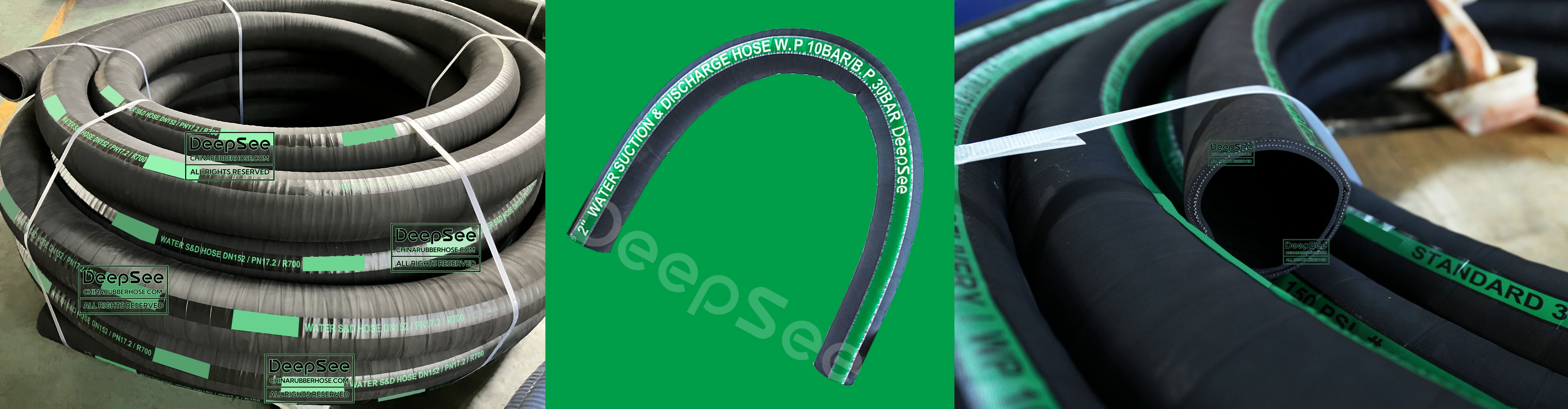

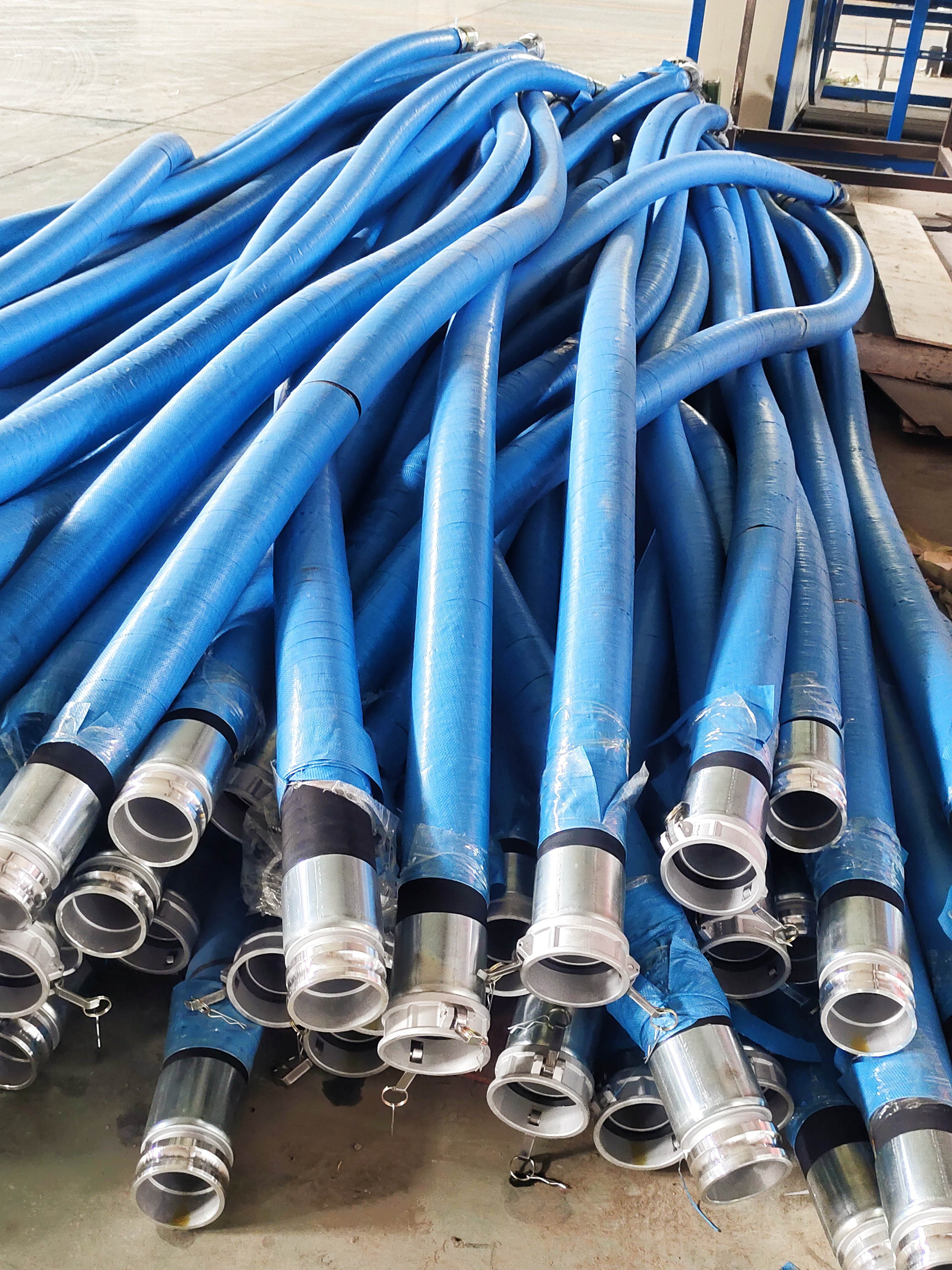

Water Suction And Discharge Hose

Hose type: Mandrel hose, winding structure

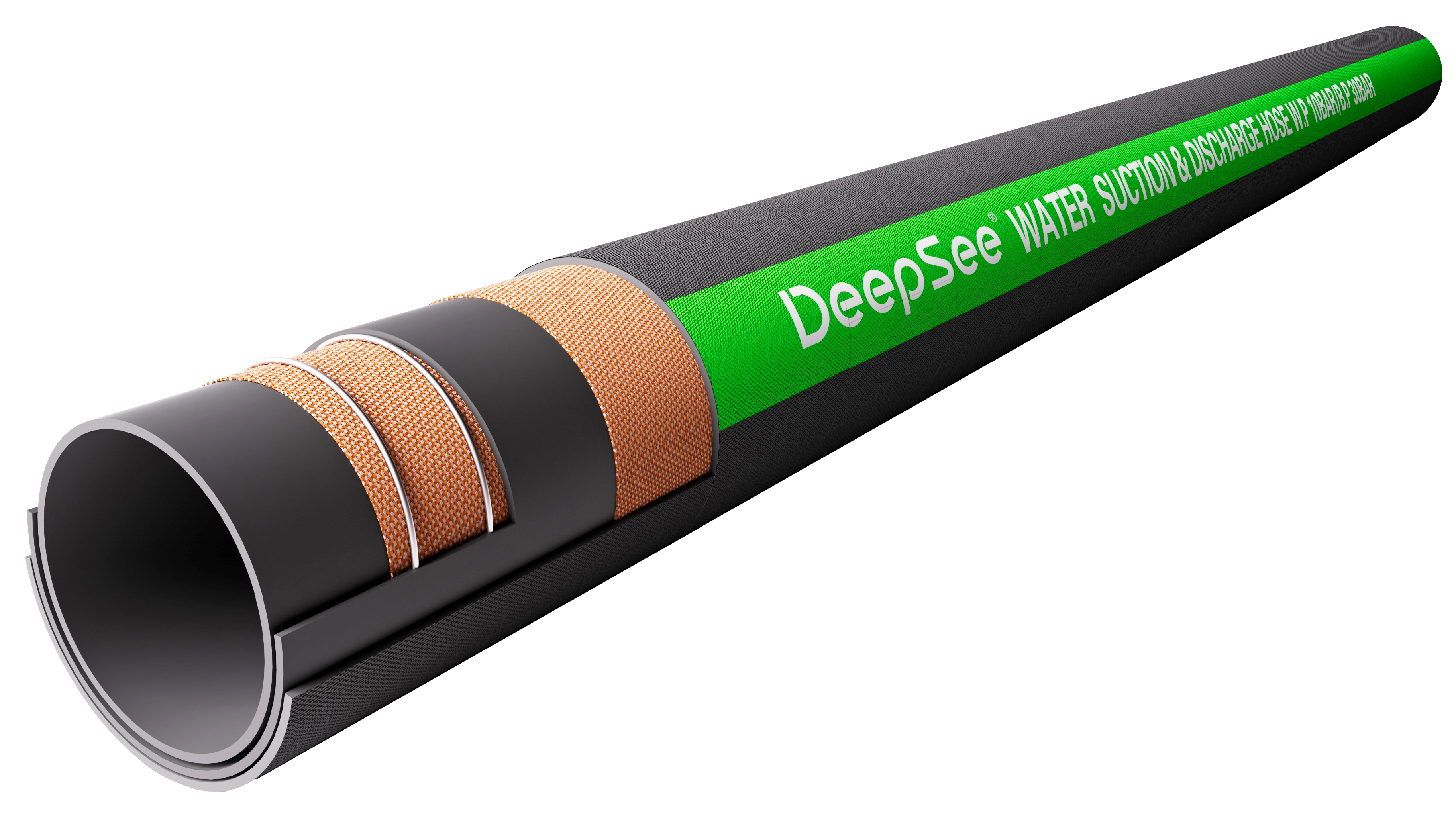

Construction:
Inner layer: NR+SBR
Reinforcement: High-strength spiral textile cord + Helix steel wire
Cover: NR+SBR
Feature: Resistant to heat, sunlight, weathering, ozone, abrasion and aging
Application: Pump water in and out of rivers, ponds, tanks, and trucks; industrial suction systems and mechanical equipment; agriculture; construction work

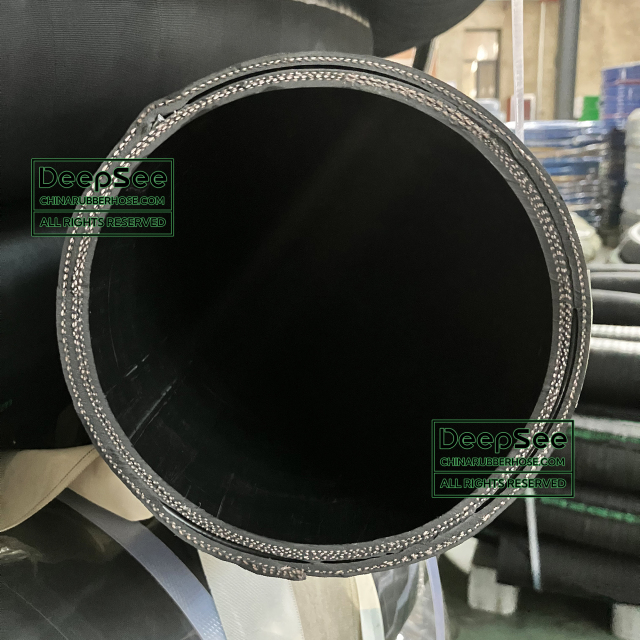

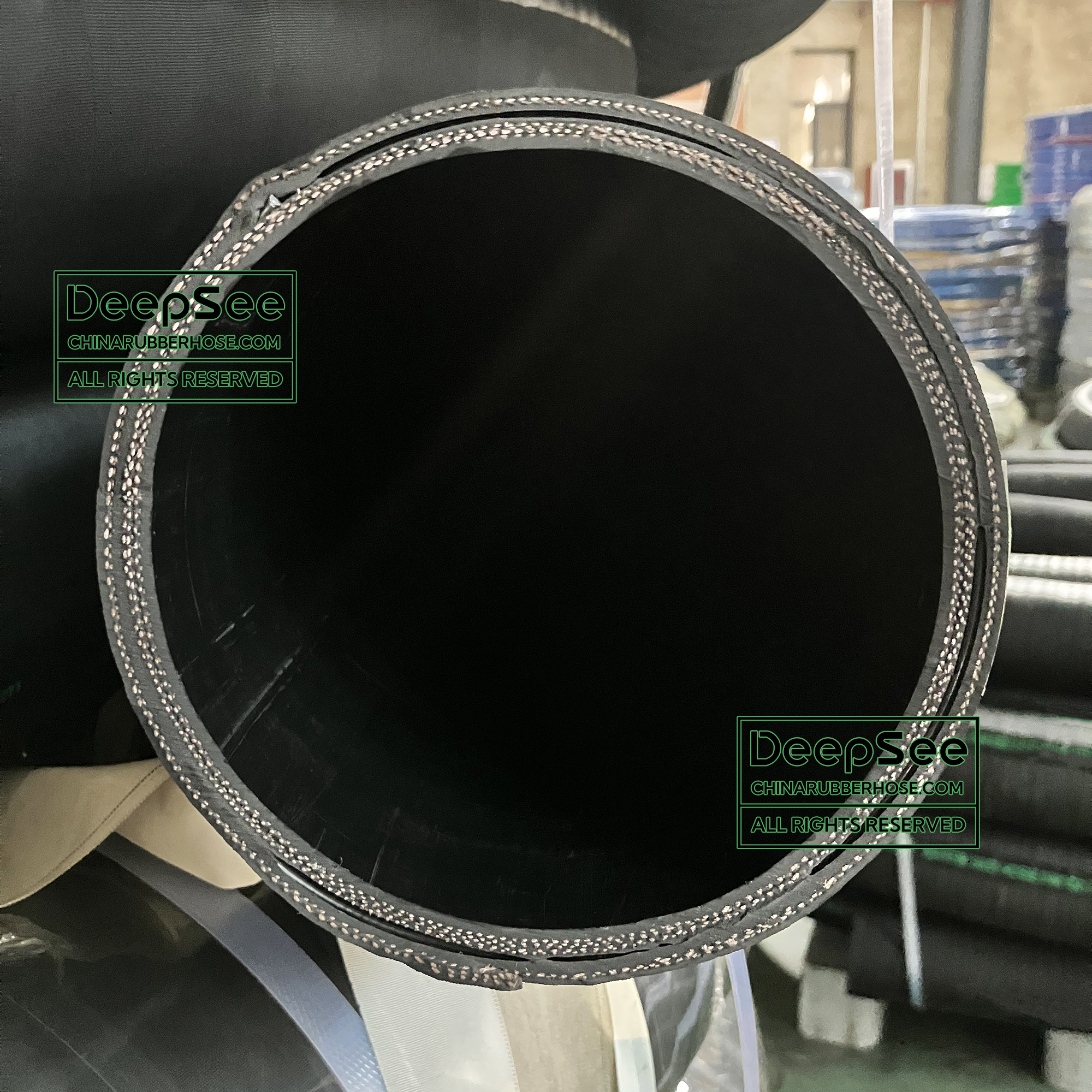

Steel wire helix reinforcement provides strength for the water hose to handle positive pressure and vacuum and prevents it from collapsing or cracking. DeepSee® Water Suction & Discharge Hose is engineered for efficient water inflow and outflow while withstanding pressure. It is made of high-grade synthetic rubber and natural rubber, which makes the hose strong and long-lasting. The layers are securely bonded therefore our water hoses are leakproof. Beside excellent strength and pressure resistance, this rubber water hose offers outstanding flexibility. You can bend the hose without worrying that it will stiffen or get damaged. We suggest you not to go beyond its minimum bending radius to ensure safety. If you are looking for a water rubber hose with a well-built structure, durable materials, safe pressure handling, and compliance with international standards, our water suction and discharge hose is the right one.

DeepSee® Water Suction & Discharge Hose Specifications

mm	inch	mm		bar	psi	bar	psi	kg/m		m		mm
19	¾	30.8		10	150	30	450	0.72		60		2
25	1	36.8						0.89		60		2
32	1¼	44.8						1.19		60		2.5
38	1½	51.4						1.48		60		2.5
45	1¾	58.4						1.71		60		2.5
51	2	64.4						1.91		60		2.5
64	2½	78.4						2.48		60		2.5
76	3	90.8						3.00		60		2.5
89	3½	106.2						4.33		60		2.5
102	4	119.2						4.90		60		2.5
127	5	146.2						6.57		60		2.5
152	6	171.6						7.94		60		2.5
203	8	224.8						12.07		60		2.5
254	10	280.8						19.75		12		3
304	12	334.2						27.68		12		3

mm	inch	bar	psi	bar	psi	m
350	14	10	150	30	450	12
400	16					12
450	18					12
500	20					12
600	24					12
