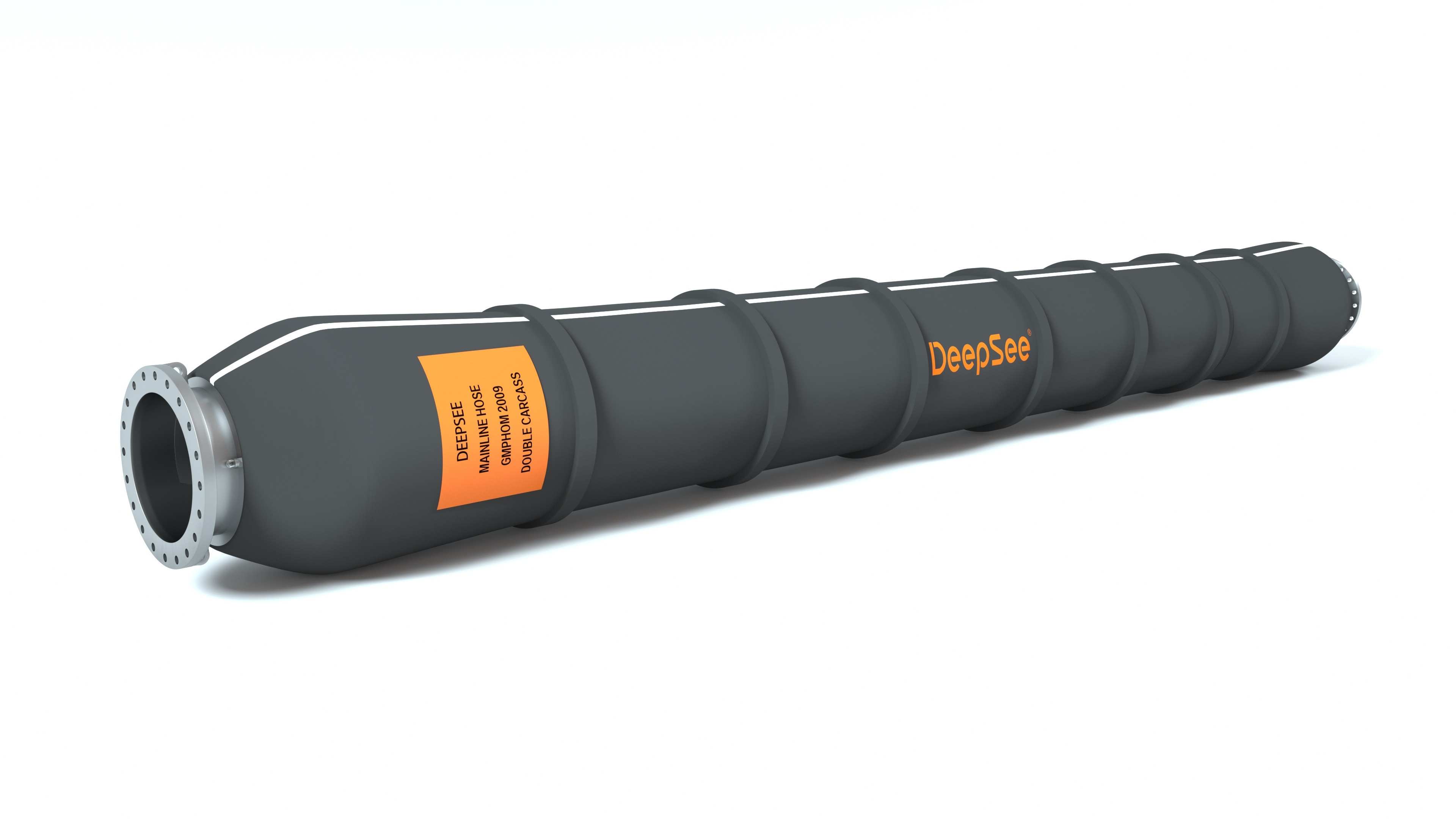

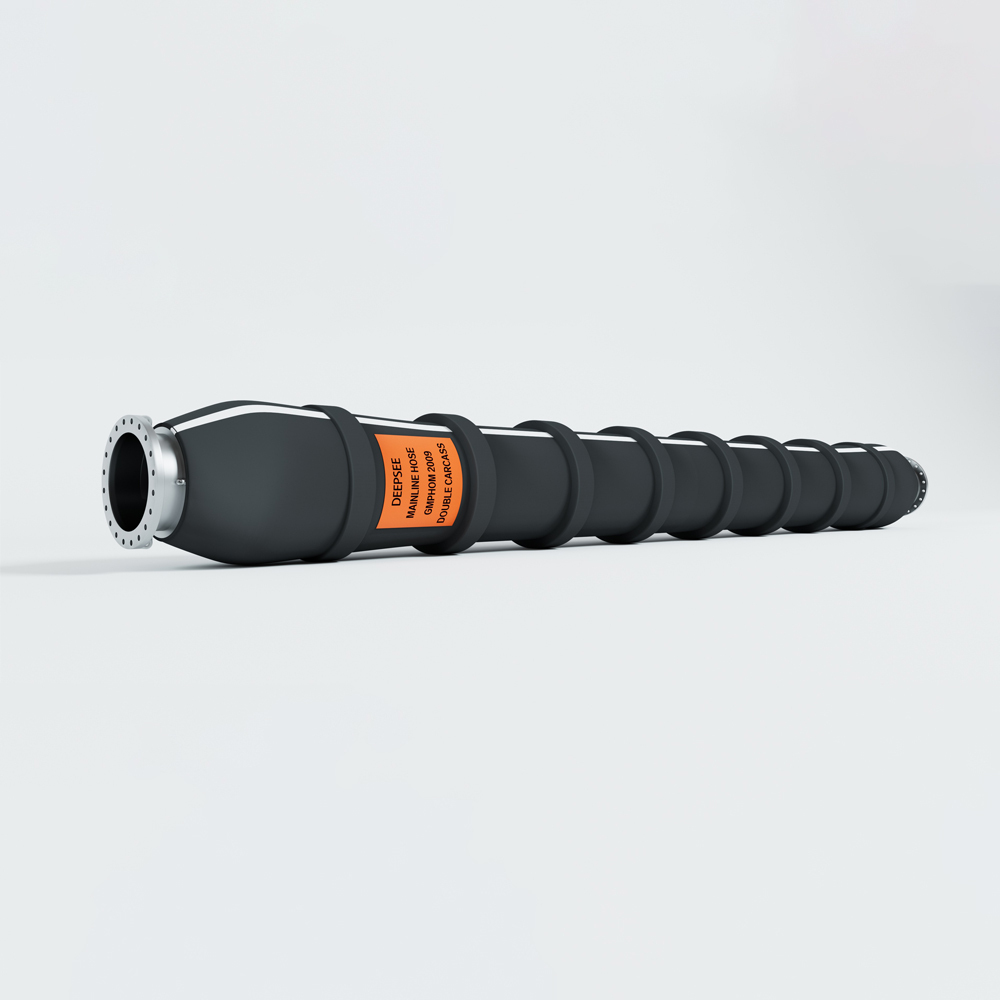

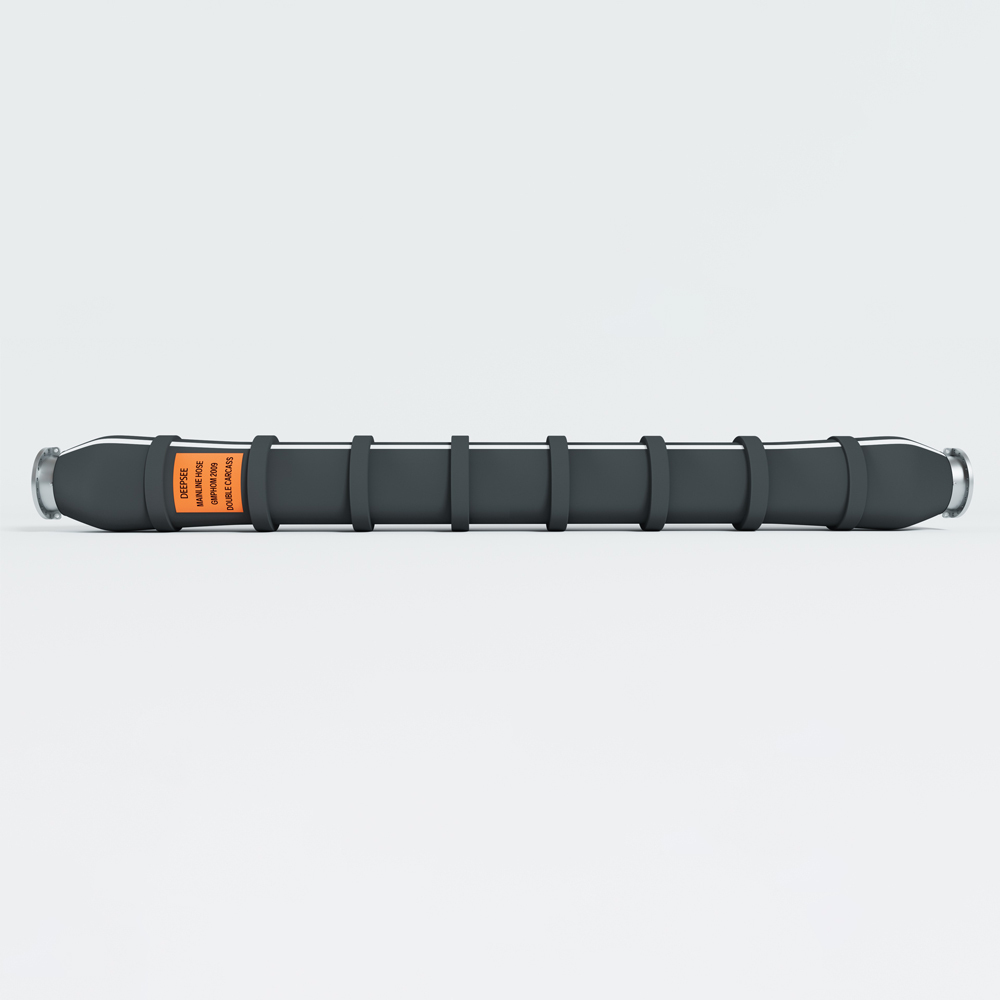

Mainline Submarine Hose with Collars (Double carcass)

Min. bend radius
4 × Nominal Diameter
Flow velocity
21m/sec (70ft/sec)
Fluid temperature
-20℃~82℃ (-4℉~180℉)
Ambient temperature
-29℃~52℃ (-20℉~125℉)
Electrical continuity:
Discontinuous as standard or as requested
Safety factor
5:1
Application:
SPM, CALM, SALM, SBM, TMS, CBM, MBM, CMBM, etc.
Production standard:
OCIMF GMPHOM 2009
Certification
Bureau Veritas
NG & LPG hose standard
BS EN 1762
Factory standard:
ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018
Operating pressure
-0.85bar (25inHg) vacuum
Fluid aromatic content
Max. 60%
Medium:
Crude oil
Natural gas
LPG
Nominal diameter:
150mm
200mm
250mm
300mm
350mm
400mm
450mm
500mm
550mm
600mm
Others
Rated working pressure:
21bar
19bar
15bar
Others
Length:
11.8m
Others
Flange material:
Carbon steel
Stainless steel
Flange standard:
ANSI
GB
JIS
DIN
Others or customize
Flange type:
WN
PL
Others
Flange face:
RF
FM
FF
Others
Technical analysis report:
No need
Dynamic analysis
Finite element analysis
Fatigue life prediction
More than one
  • mainline hose - DeepSee submarine hose
  • submarine hose - DeepSee marine hose
  • mainline hose - DeepSee submarine hose
  • mainline hose - DeepSee submarine hose
Description
Our submarine mainline hose (BV certificated) can be customized according to your requirements. Remarkable quality, competitive price, and punctual delivery time. Click to view "Double carcass submarine mainline hose without collars".

Submarine hose pattern:
-Lazy S
-Steep S
-Chinese Lantern
Submarine hose pattern - DeepSee marine hose

Inner layer: NBR (Nitrile-Butadiene Rubber)
    Feature: Resistant to fuel and oil; Smooth; Seamless
Reinforcement: Multiple layers of high-strength textile cord + Embedded spiral steel wire
Outer layer: Synthetic rubber
    Feature: Smooth; Resistant to abrasion, oil, sea water, and sunlight/UV ray
Minimum burst pressure
    Primary carcass: 5 × Rated Working Pressure
    Secondary carcass: 2 × Rated Working Pressure

Fittings: ASME B 16.5 (Class 150, 300, 400, 600, 900, 1500, and 2500) or other standards flanges according to customer's request will be welded on the raised face, flat face, or other required face of the hose neck. Flange material options include carbon steel and stainless steel. There are several welding and sealing methods for you to choose.
Flange standard: ANSI, GB, JIS, or DIN.

Submarine hose fittings: High-quality flanges
Submarine hose test data - DeepSee marine hose
