Mainline Submarine Hose (Double carcass)

Name: Mainline Submarine Hose (Double carcass)
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Min. bend radius

4 × Nominal Diameter

Flow velocity

21m/sec (70ft/sec)

Fluid temperature

-20℃～82℃ (-4℉～180℉)

Ambient temperature

-29℃～52℃ (-20℉～125℉)

Electrical continuity

Discontinuous as standard or as your request

Safety factor

5:1

Application

SPM, CALM, SALM, SBM, TMS, CBM, MBM, CMBM, etc.

Production standard

OCIMF GMPHOM 2009

Certification

Bureau Veritas

NG & LPG hose standard

BS EN 1762

Operating pressure

-0.85bar (25inHg) vacuum

Fluid aromatic content

Max. 60%

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Medium:

Oil

Natural gas

LPG

Nominal diameter:

150mm

200mm

250mm

300mm

350mm

400mm

450mm

500mm

550mm

600mm

Others

Rated working pressure:

21bar

19bar

15bar

Others

Length:

11.8m

Others

Flange material:

Carbon steel

Stainless steel

Flange standard:

ANSI

JIS

DIN

Others or customize

Flange type:

Others

Flange face:

Others

Technical analysis report:

No need

Dynamic analysis

Finite element analysis

Fatigue life prediction

More than one

Get The Latest Quote

Description

Submarine hose pattern - DeepSee marine hose

Submarine hose pattern:
-Lazy S
-Steep S
-Chinese Lantern

→Inner layer: NBR (Nitrile-Butadiene Rubber)
Feature: Resistant to fuel and oil; Smooth; Seamless
→Reinforcement: Multiple layers of high-strength textile cord + Embedded spiral steel wire
→Outer layer: Synthetic rubber
Feature: Smooth; Resistant to abrasion, oil, sea water, and sunlight/UV ray
→Minimum burst pressure
Primary carcass: 5 × Rated Working Pressure
Secondary carcass: 2 × Rated Working Pressure

Our submarine mainline hose (BV certificated) can be customized according to your requirements. Remarkable quality, competitive price, and punctual delivery time are the least we can offer.

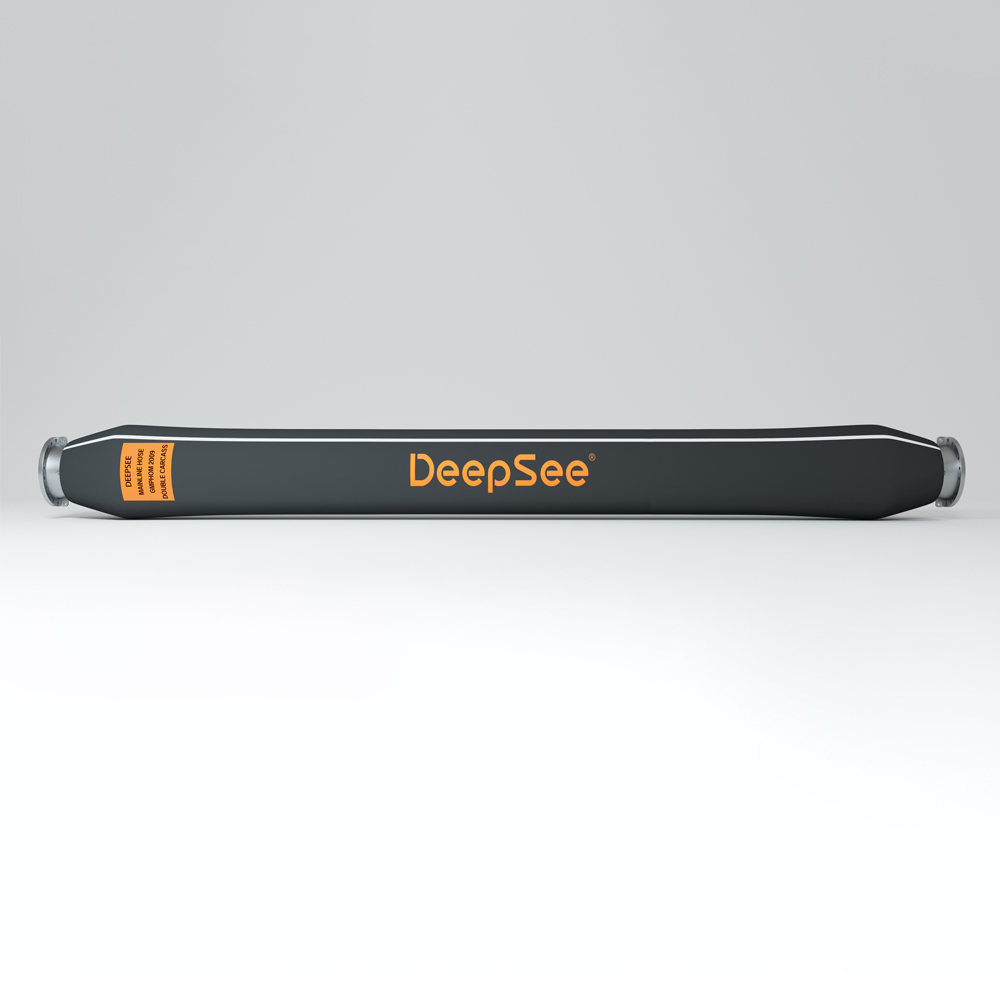

If you need double carcass mainline hoses with floating collars, please click here.

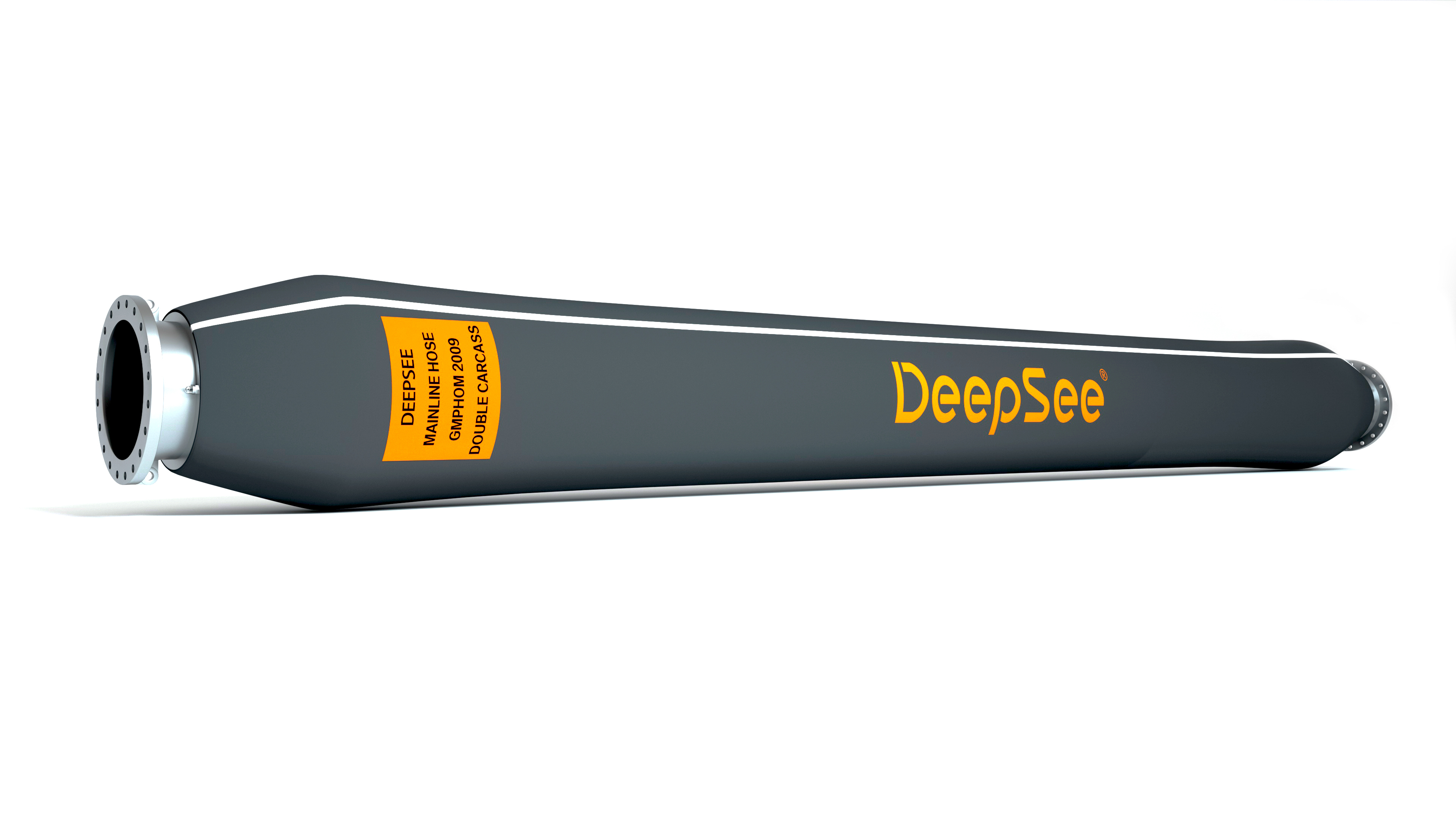

Double carcass mainline submarine hose - DeepSee marine hose

Double carcass mainline submarine hose - DeepSee marine hose

→Fittings: ASME B 16.5 (Class 150, 300, 400, 600, 900, 1500, and 2500) or other standards flanges according to customer's request will be welded on the raised face, flat face, or other required face of the hose neck. Flange material options include carbon steel and stainless steel. There are several welding and sealing methods for you to choose.
→Flange standard: ANSI, GB, JIS, or DIN.

Submarine hose flange - DeepSee marine hose fitting

Submarine hose flange - DeepSee marine hose fitting

Submarine hose test data - DeepSee marine hose
