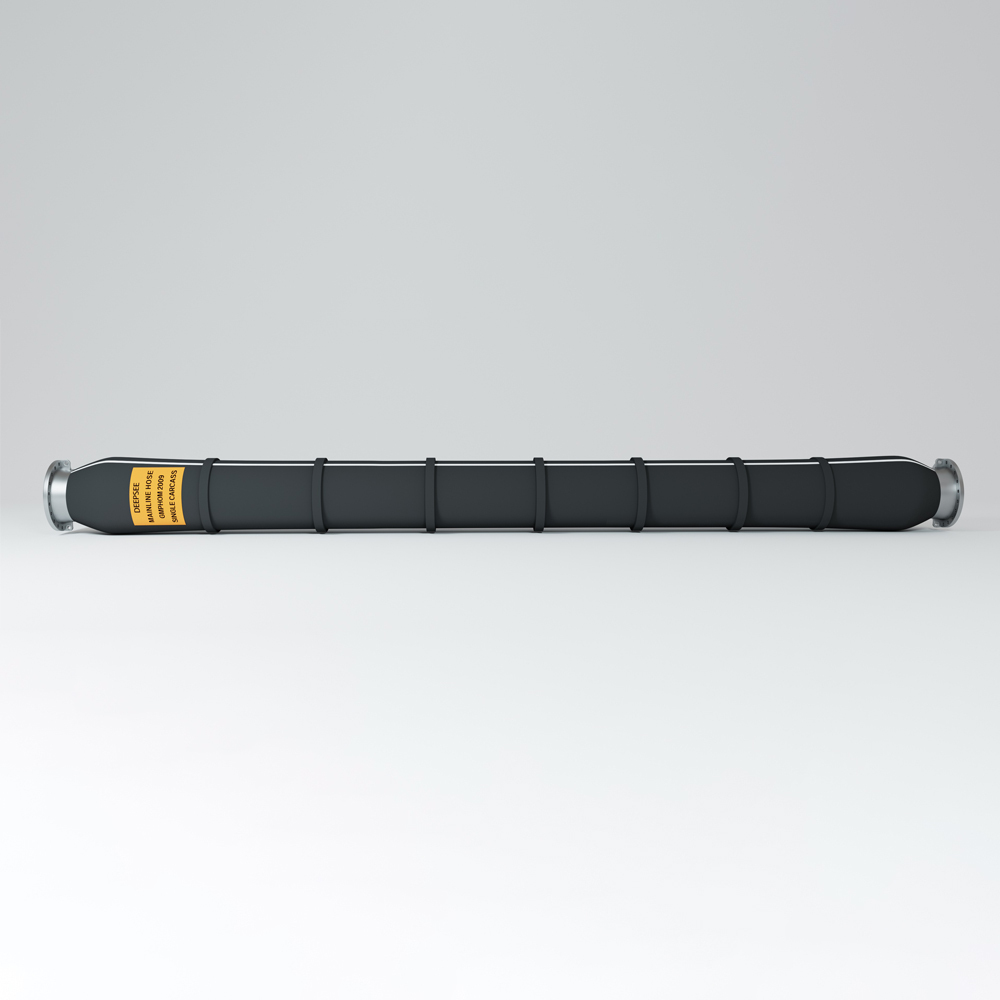

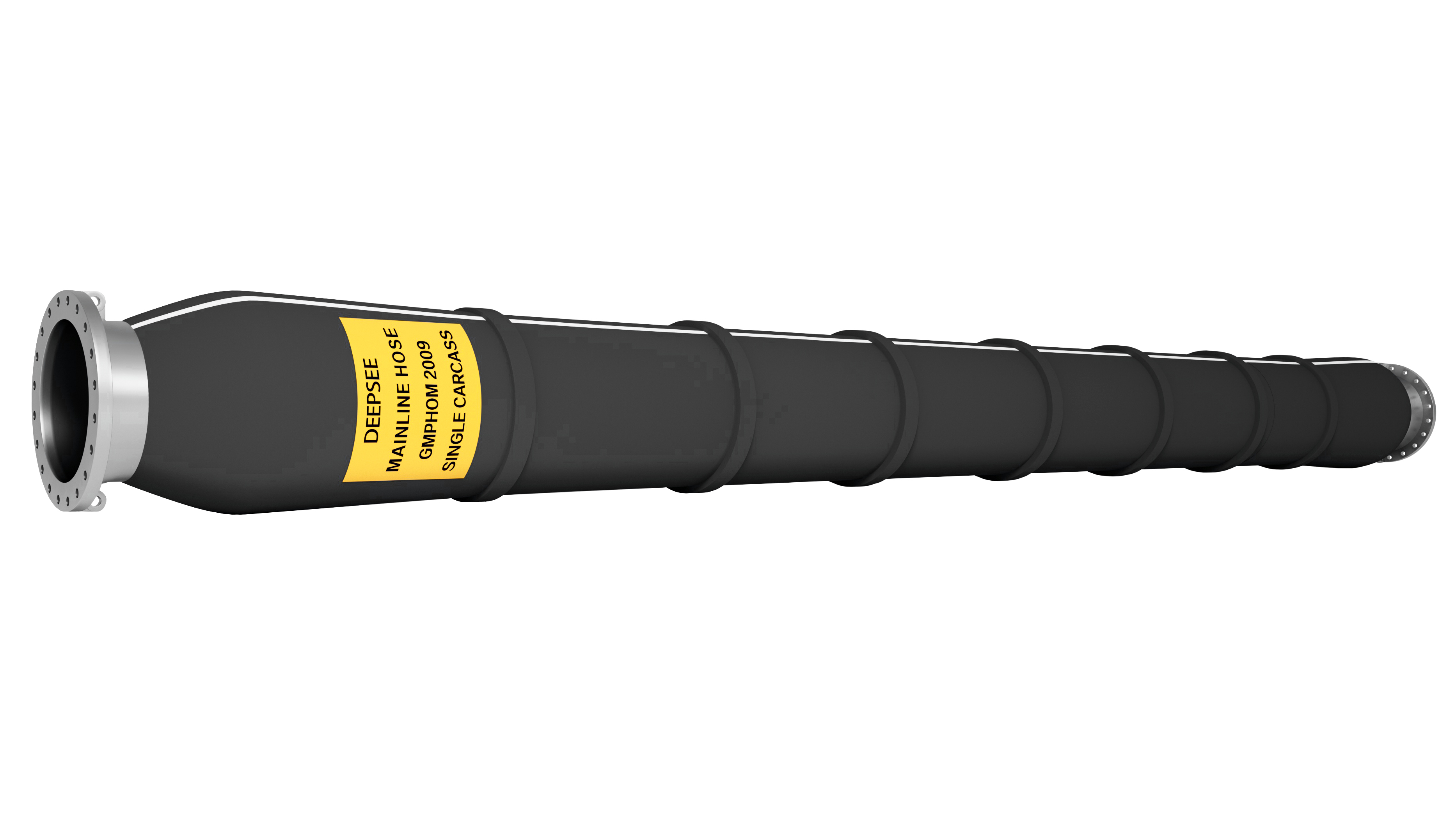

Mainline Submarine Hose with Collars (Single carcass)

Our submarine single carcass mainline hose (BV certificated) can be customized according to your needs. Excellent quality, competitive price, and punctual delivery time. Click to see "Single carcass submarine mainline hose without collars".

Rated working pressure
15-21 bar
Temperature
-20℃~80℃
Medium
Crude oil/Petroleum, Natural gas, LPG
Structure
Single carcass
Application
SPM, SBM, FPSO, FSRU
Production standard
OCIMF GMPHOM 2009
Factory standard
ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018
Electrical continuity
Discontinuous as standard
Minimum bending radius
4D (up to 2D without any permanent deformation)
  • Mainline Hose with collars
  • Mainline Hose with collars
Description
Inner layer: NBR (Nitrile-Butadiene Rubber)
    Feature: Resistant to fuel and oil; Smooth; Seamless
Reinforcement: Multiple layers of high-strength textile cord + Embedded spiral steel wire
Outer layer: Synthetic rubber
    Feature: Smooth; Resistant to abrasion, oil, sea water, and sunlight/UV ray

Fittings: According to customer's request, ASME B 16.5 flanges (Class 150, 300, 400, 600, 900, 1500, and 2500) will be welded on the flat surface or convex surface of the hose neck. Flange material options include carbon steel and stainless steel.
Flange standard: ANSI, GB, JIS, or DIN.
