Mainline Submarine Hose (Single carcass)

Name: Mainline Submarine Hose (Single carcass)
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Min. bend radius

4 × Nominal Diameter

Flow velocity

21m/sec (70ft/sec)

Fluid temperature

-20℃～82℃ (-4℉～180℉)

Ambient temperature

-29℃～52℃ (-20℉～125℉)

Electrical continuity

Discontinuous as standard

Safety factor

5:1

Application

SPM, CALM, SALM, SBM, TMS, CBM, MBM, CMBM, etc.

Production standard

OCIMF GMPHOM 2009

Certification

Bureau Veritas

NG & LPG hose standard

BS EN 1762

Operating pressure

-0.85bar (25inHg) vacuum

Fluid aromatic content

Max. 60%

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Medium:

Oil

Natural gas

LPG

Nominal diameter:

150mm

200mm

250mm

300mm

350mm

400mm

450mm

500mm

550mm

600mm

Others

Rated working pressure:

21bar

19bar

15bar

Others

Length:

11.8m

Others

Flange material:

Carbon steel

Stainless steel

Flange standard:

ANSI

JIS

DIN

Others or customize

Flange type:

Others

Flange face:

Others

Technical analysis report:

No need

Dynamic analysis

Finite element analysis

Fatigue life prediction

More than one

Get The Latest Quote

Description

This GMPHOM 2009 standard submarine mainline hose is designed for submerged fluid transfer in offshore systems. Its single carcass structure offers excellent tensile strength and flexibility for various transportation in challenging marine environments. Its abrasion-resistant outer layer ensures durability against pressure and external forces, even under dynamic loads. DeepSee® Single Carcass Submarine Mainline Hose is a reliable solution for offshore LPG, oil and gas applications.

Submarine hose pattern:
-Lazy S
-Steep S
-Chinese Lantern
Submarine hose pattern includes steep S, lazy S, Chinese lantern - DeepSee marine hose

→Inner layer: NBR (Nitrile-Butadiene Rubber)
Feature: Resistant to fuel and oil; Smooth; Seamless
→Reinforcement: Multiple layers of high-strength textile cord + Embedded spiral steel wire
→Outer layer: Synthetic rubber
Feature: Smooth; Resistant to abrasion, oil, sea water, and sunlight/UV ray
→Minimum burst pressure: 5 × Rated Working Pressure

Click here to view "Single carcass submarine mainline hose with collars".

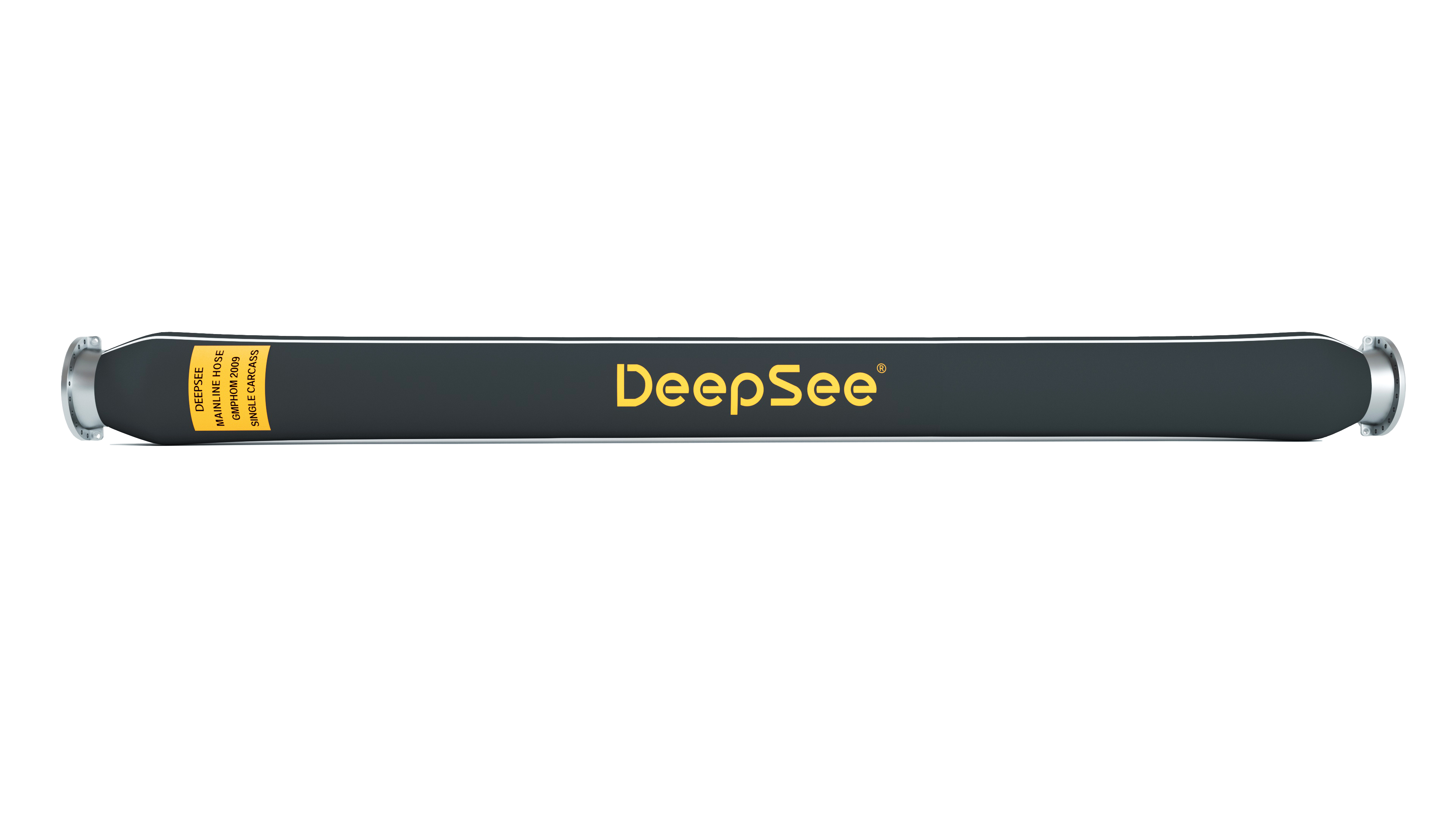

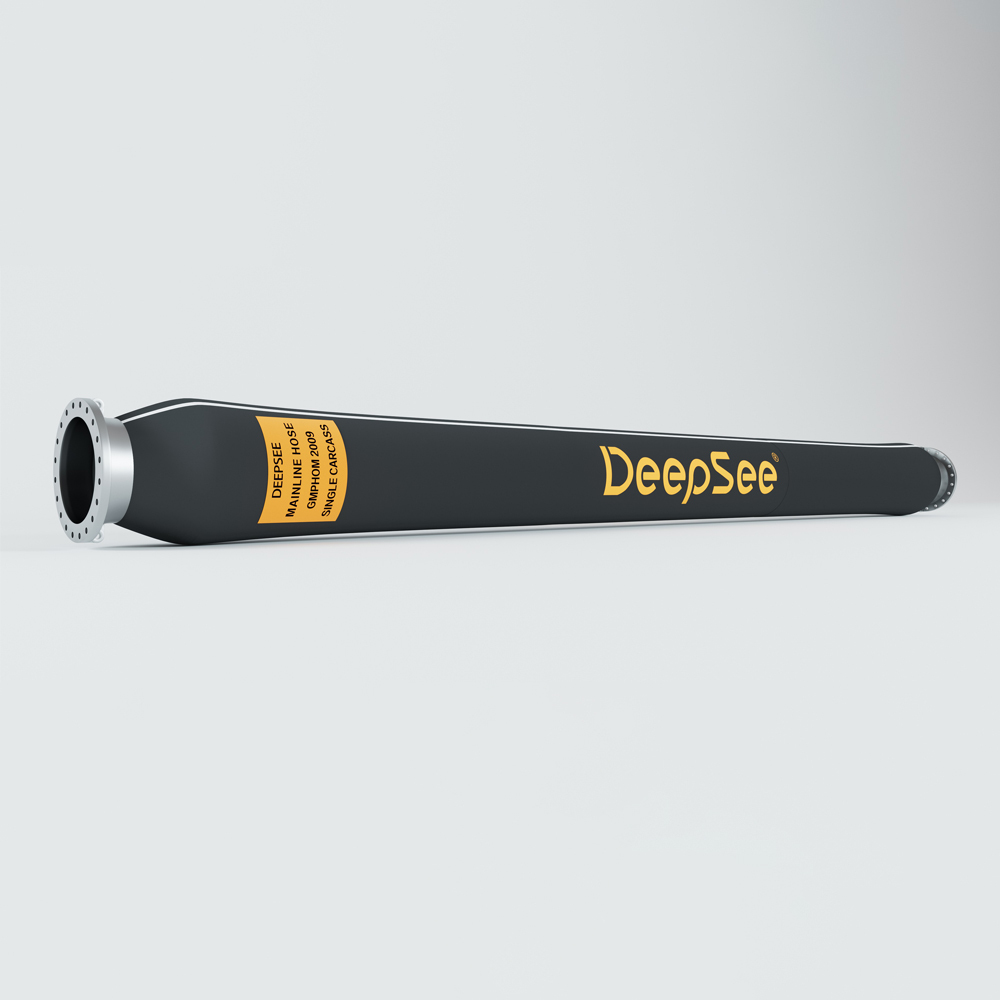

Mainline submarine hose - DeepSee single carcass marine hose

Mainline submarine hose - DeepSee single carcass marine hose

→Fittings: ASME B 16.5 (Class 150, 300, 400, 600, 900, 1500, and 2500) or other standards flanges according to customer's request will be welded on the raised face, flat face, or other required face of the hose neck. Flange material options include carbon steel and stainless steel. There are several welding and sealing methods for you to choose.
→Flange standard: ANSI, GB, JIS, or DIN.

Submarine hose and fittings - DeepSee single carcass hose

Submarine hose and fittings - DeepSee single carcass hose
