Name: UHMWPE Chemical Transfer Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

UHMWPE Chemical Transfer Hose

Temperature range

-40℃～90℃

Safety factor

3:1

Min. bending radius

Medium

Corrosive chemicals, organic solvents, pharmaceutical reagents, water-based solutions, etc.

Application

Chemical plants, industrial cleaning, tanker transfer, etc.

Production standard

EN 12115

Hose type

Mandrel hose, winding structure

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Color & label

Customization available

Min. order quantity

1 piece (40m)

Description

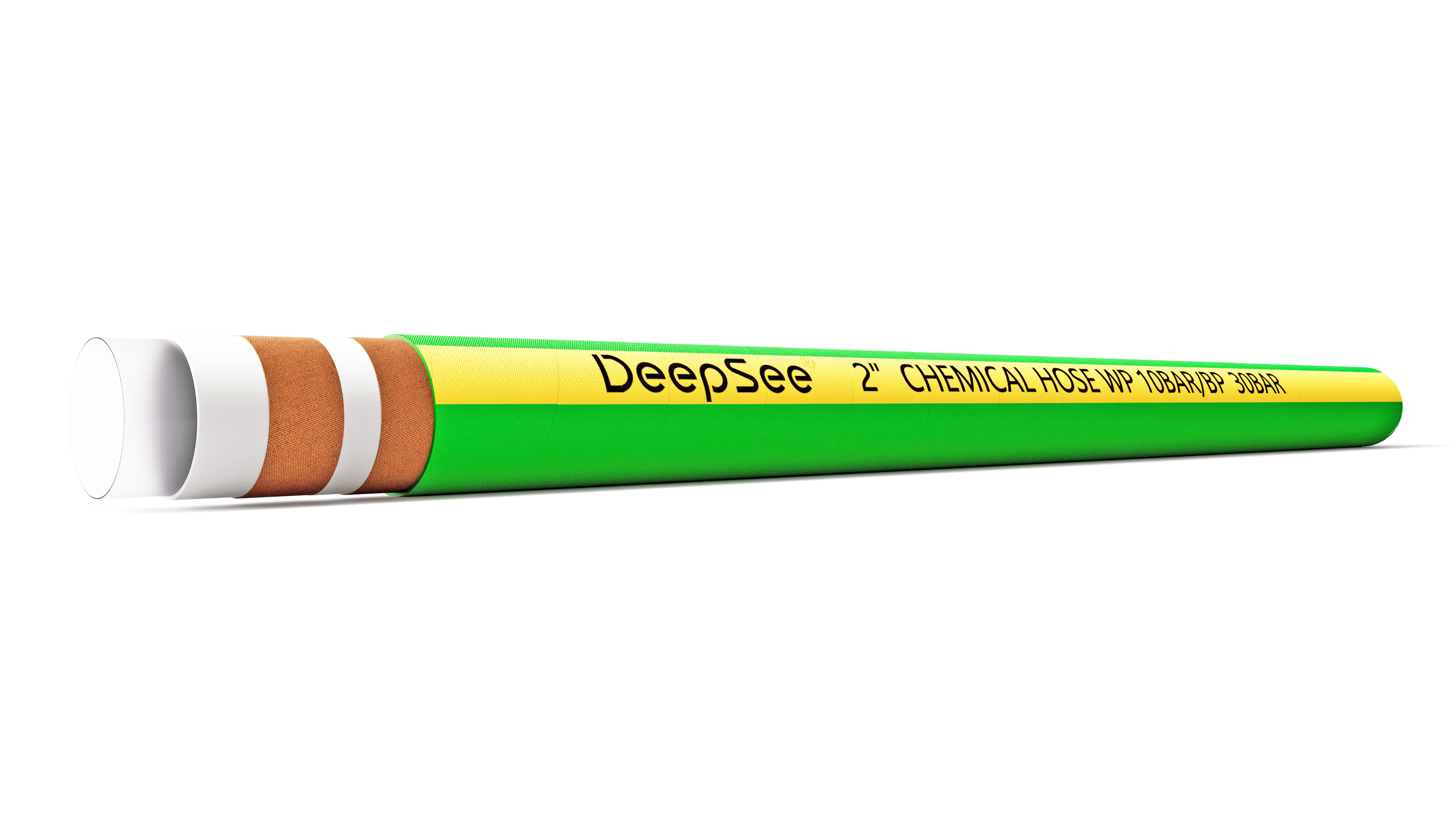

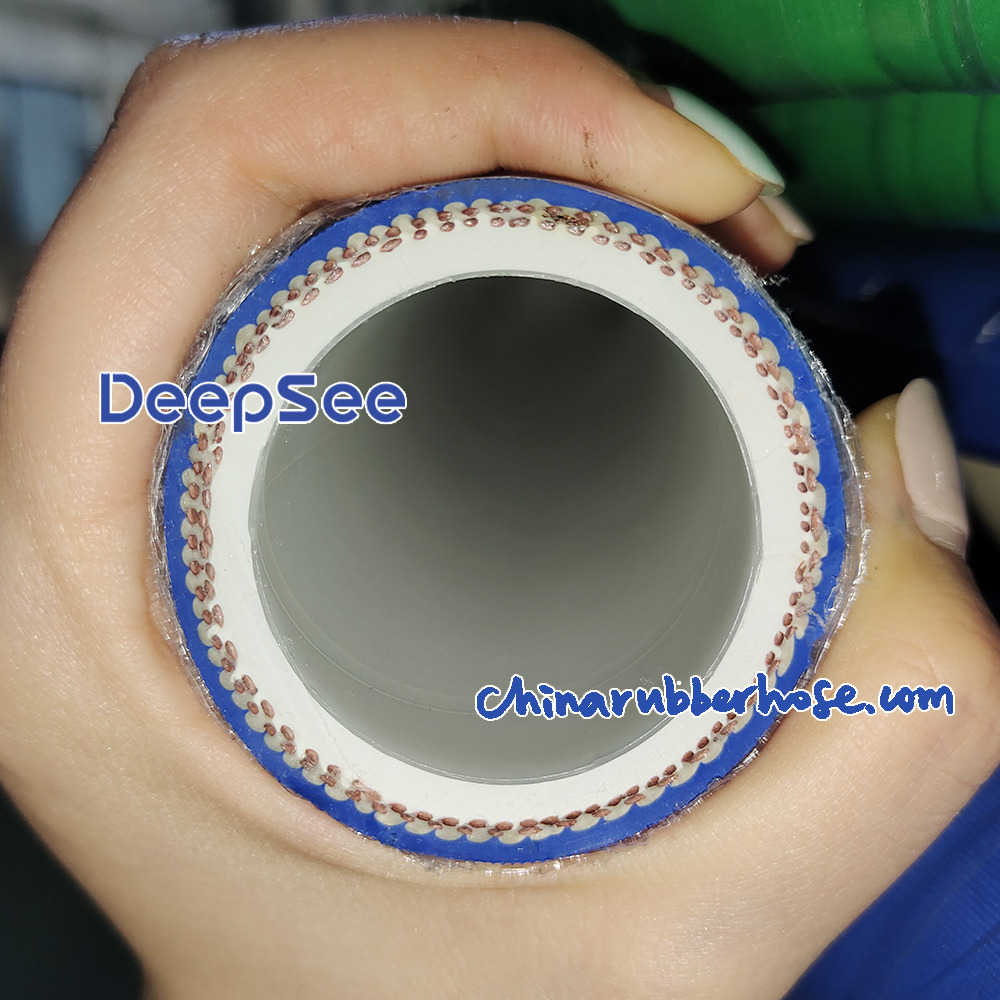

Construction: (Mandrel hose)
Inner wall: UHMWPE + EPDM
Reinforcement: High-strength spiral textile cord
Outer layer: EPDM
Feature: ① Mighty chemical resistance ② Great flexibility ③ Long service life
④ Easy to manage ⑤ Extensive chemical compatibility ⑥ Good temperature tolerance
Medium: ① Acids and alkalis, e.g. sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, citric acid, sodium hydroxide, potassium hydroxide, ammonia solution. ② Non-flammable alcohols, e.g. glycerin, benzyl alcohol. ③ Non-volatile solvents, e.g. dimethylformamide (DMF), propylene glycol. ④ Water-based chemicals, e.g. latex emulsions, salt solutions, fertilizers.
FOR MORE CHEMICAL RESISTANCE, PLEASE CONTACT US.
Thanks to the powerful combination of Ultra High Molecular Weight Polyethylene and Ethylene-Propylene-Diene Monomer, the inner tube is durable with excellent chemical resistance, low friction, and great chemical compatibility in harsh industrial environments. Textile cord reinforcement provides both strength and flexibility for this chemical hose. The EPDM cover offers weather resistance and protection against abrasion. DeepSee® Chemical Transfer Hose can withstand repeated exposure to a wide range of chemicals without degradation. It's designed to handle acids, alkalines, solvents, and other aggressive chemical substances. This chemical hose is well-suited for high-purity chemical transfer in industries like pharmaceutical, food processing, petrochemicals, and industrial cleaning.
Blue and green chemical transfer hoses in DeepSee's factory

Blue and green chemical transfer hoses in DeepSee's factory

DeepSee® Chemical Transfer Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	31.2	10	150	30	450	0.63	40	3
25	1	37.2					0.78	40	3
32	1¼	44.6					0.96	40	3
38	1½	51.6					1.21	40	3.5
45	1¾	58.6					1.40	40	3.5
51	2	64.6					1.56	40	3.5
57	2¼	70.6					1.72	40	3.5
64	2½	78.6					2.19	40	3
76	3	90.6					2.56	40	3
102	4	117.4					3.34	40	3
152	6	168.4					5.35	40	3

chemical rubber hose patent - DeepSee rubber hose

I.D.		O.D.	W.P.		B.P.		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	31.2	16	230	48	690	0.63	40	3
25	1	37.2					0.78	40	3
32	1¼	44.6					0.96	40	3
38	1½	52					1.26	40	3.5
45	1¾	59					1.46	40	3.5
51	2	65					1.62	40	3.5
57	2¼	71					1.80	40	3.5
64	2½	79.4					2.19	40	3
76	3	91.4					2.56	40	3
102	4	120.2					4.01	40	3
152	6	171.4					6.54	40	3

I.D.		O.D.	W.P.		B.P.		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	31.2	20	300	68	900	0.63	40	3
25	1	37.6					0.78	40	3
32	1¼	46.6					1.21	40	3
38	1½	53.4					1.40	40	3
45	1¾	60.4					1.61	40	3
51	2	66.4					1.79	40	3
57	2¼	72.4					1.98	40	3
64	2½	82.2					2.64	40	3
76	3	94.2					3.07	40	3
102	4	121.4					4.40	40	3
152	6	171.4					6.72	40	3

For other specifications or special requirements, please contact our team to customize.
