Anti-static UHMWPE Chemical Hose

Name: Anti-static UHMWPE Chemical Hose
Brand: DeepSee Rubber Hose
Availability: InStock
Rating: 5 (1 reviews)

Temperature range

-40℃～90℃

Safety factor

3:1

Min. bending radius

Medium

Volatile chemicals, flammable solvents, active pharmaceutical ingredients, strong caustics, etc.

Application

Petrochemical plants, wastewater treatment, dangerous waste cleanup, chemical spill remediation, fuel tanker operation, etc.

Production standard

EN 12115

Hose type

Mandrel hose, winding structure

Factory standard

ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018

Manufacturer type

OEM, ODM

Color & label

Customization available

Min. order quantity

1 piece (40m)

Get The Latest Quote

Description

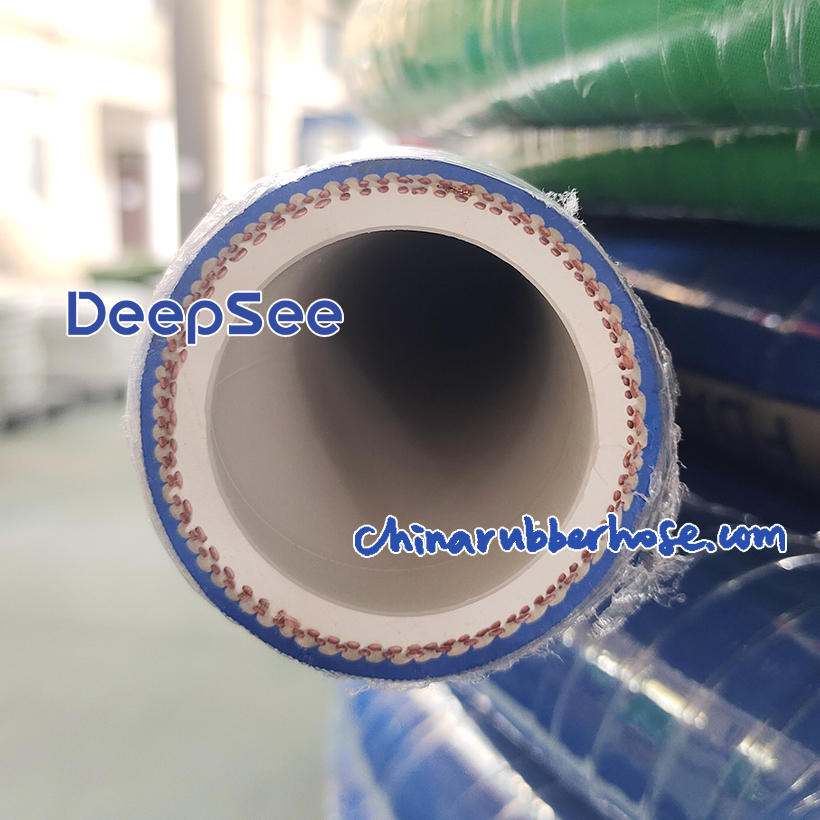

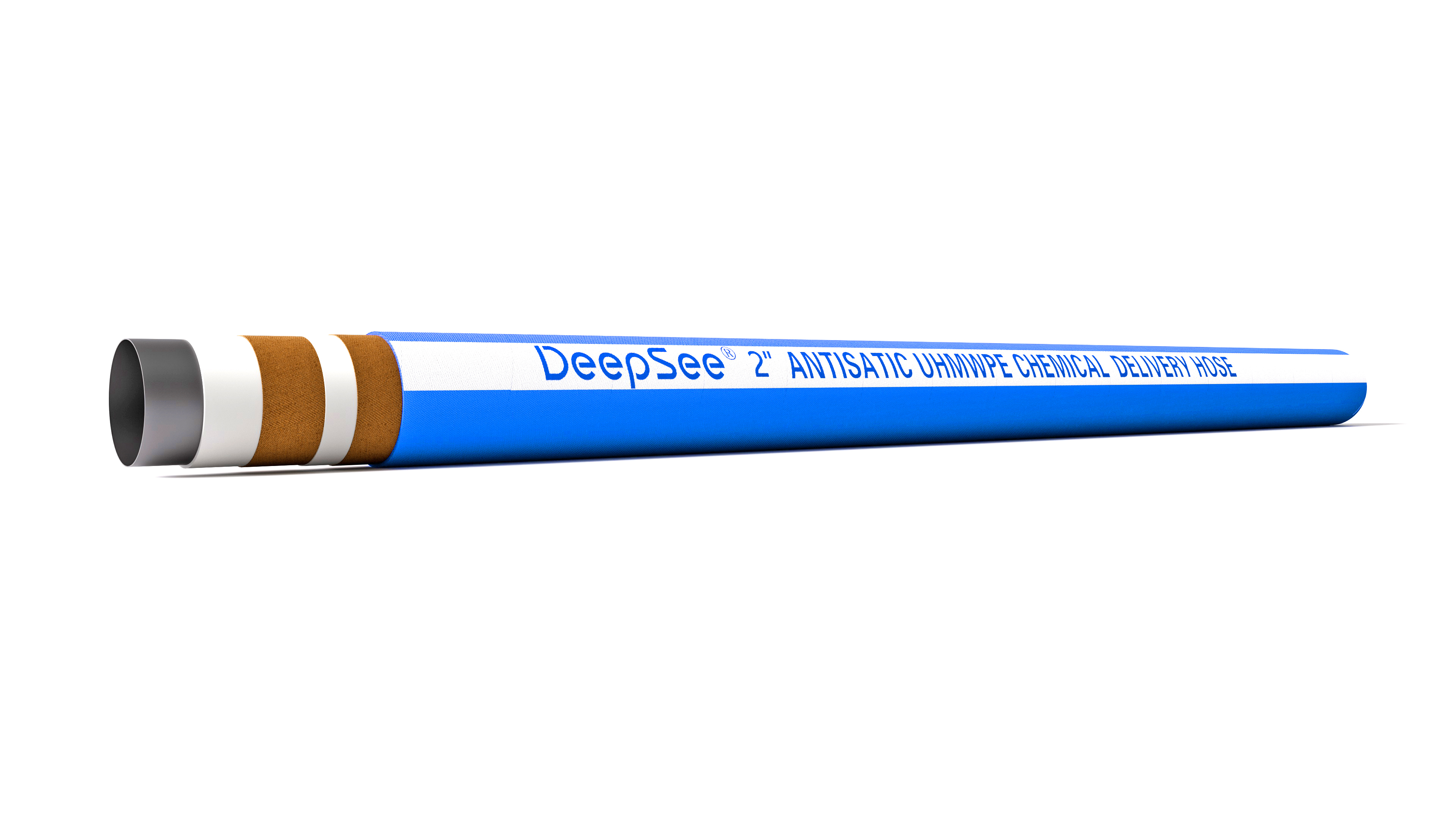

Construction: (Mandrel hose)
Inner wall: Antistatic UHMWPE + EPDM
Reinforcement: High-strength spiral textile cord
Outer layer: EPDM
Feature: ① Static-dissipative ② Strong chemical resistance
③ Highly flexible and durable ④ Lightweight, easy to handle
Medium: ① Flammable solvents, e.g. acetone, toluene, ethyl acetate, MEK (Methyl Ethyl Ketone), xylene, isopropanol (IPA), methanol. ② Volatile hydrocarbons, e.g. hexane, heptane, cyclohexane, certain aliphatic hydrocarbons. ③ Alcohols and ketones. e.g. ethanol, butanol, acetone, MIBK. ④ Gases, e.g. nitrogen gas (N₂), CO₂. ⑤ Powders prone to static build-up, e.g. chemical powders, pharmaceutical powders, plastic pellets.
FOR MORE CHEMICAL RESISTANCE, PLEASE CONTACT US.
Apart from the properties of a standard chemical transfer hose, antistatic chemical hose minimizes or dissipates static electricity buildup. It reduces the risk of static discharge, which is critical for the transfer of flammable or explosive chemicals. This anti-static property comes from the inner lining material. DeepSee® Anti Static Chemical Transfer Hose can conduct static charges, and safely deliver combustible liquid and paints. Effective prevention from fire and explosion danger make the rubber hose suitable for static-sensitive working environments, such as chemical plants and refineries. Our anti static chemical discharge hose can eliminate potential static risk and contribute to safe operation.

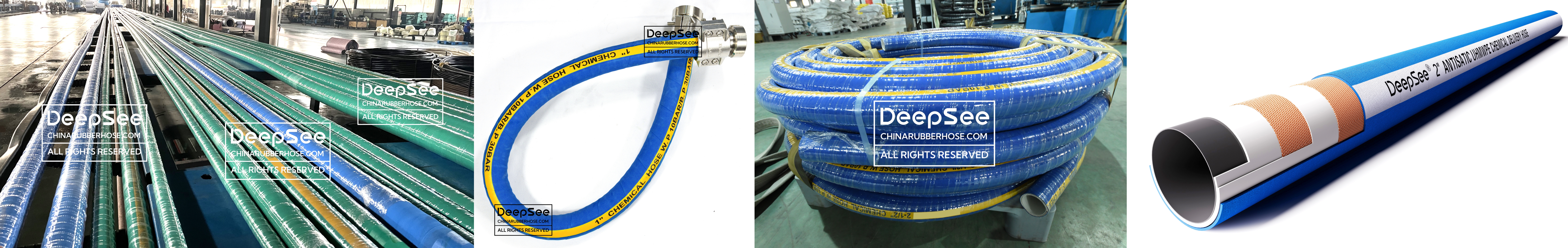

Blue antistatic chemical transfer hose in DeepSee's factory

Blue antistatic chemical transfer hose in DeepSee's factory

DeepSee® Anti Static Chemical Transfer Hose Specifications


mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	31.2	10	150	30	450	0.62	40	3
25	1	37.2					0.77	40	3
32	1¼	44.6					0.99	40	3
38	1½	51.6					1.25	40	3.5
45	1¾	58.6					1.45	40	3.5
51	2	64.6					1.62	40	3.5
57	2¼	70.6					1.72	40	3.5
64	2½	78.6					2.16	40	3
76	3	90.6					2.52	40	3
102	4	117.4					3.60	40	3
152	6	168.4					5.35	40	3

chemical rubber hose patent - DeepSee rubber hose

I.D.		O.D.	W.P.		B.P.		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	31.2	16	230	48	690	0.62	40	3
25	1	37.2					0.77	40	3
32	1¼	44.6					0.99	40	3
38	1½	52					1.27	40	3.5
45	1¾	59					1.47	40	3.5
51	2	65					1.64	40	3.5
57	2¼	71					1.80	40	3.5
64	2½	79.4					2.35	40	3
76	3	91.4					2.75	40	3
102	4	120.2					4.40	40	3
152	6	171.4					6.54	40	3

I.D.		O.D.	W.P.		B.P.		Weight	Max. Length	Inner Rubber Thickness
mm	inch	mm	bar	psi	bar	psi	kg/m	m	mm
19	¾	31.6	20	300	68	900	0.68	40	3
25	1	37.6					0.84	40	3
32	1¼	46.6					1.22	40	3
38	1½	52.6					1.41	40	3
45	1¾	60.4					1.78	40	3
51	2	66.4					1.98	40	3
57	2¼	72.4					2.20	40	3
64	2½	82.2					2.96	40	3
76	3	94.2					3.45	40	3
102	4	121.4					4.60	40	3
152	6	171.4					6.72	40	3

For other specifications or special requirements, please contact our team to customize.
